| Installing an Electric Life power kit. |

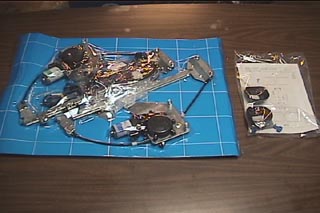

| Here is what the new kit looks like. |
| First you need to remove the small c-clip from under the handle to remove it. |

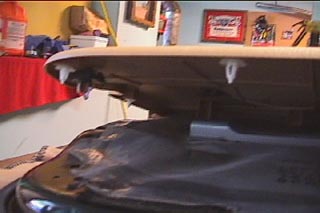

| Next you need to remove all the screws from the front panel and then pop the door panel up as shown. |

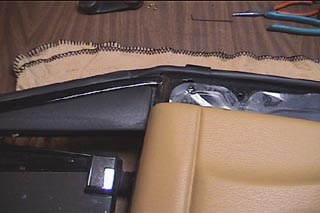

| Once thats done you need to slide the top front edge out of the grove to remove the door panel. |

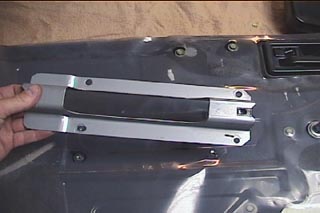

| Next remove the handle support inorder to remove the plastic and gain access to the regulator and glass mounting screws. |
 |

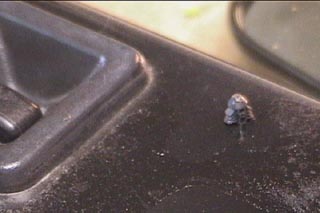

| You will see this tab sticking out next to the door handle. You need to push it thru inorder to remove the regulator assembly. |

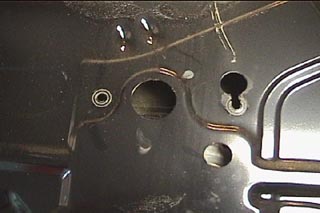

| You need to unbolt the window glass before the regulator assembly. Because you might have to place the crank back on inorder to line it up as seen inorder to get to the screws. |

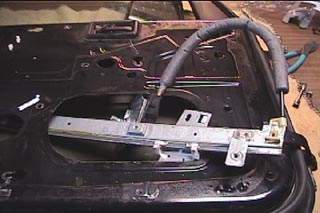

| Then you can remove the regulator assembly mounting screws and remove it from the door thru the large hole as seen. |
