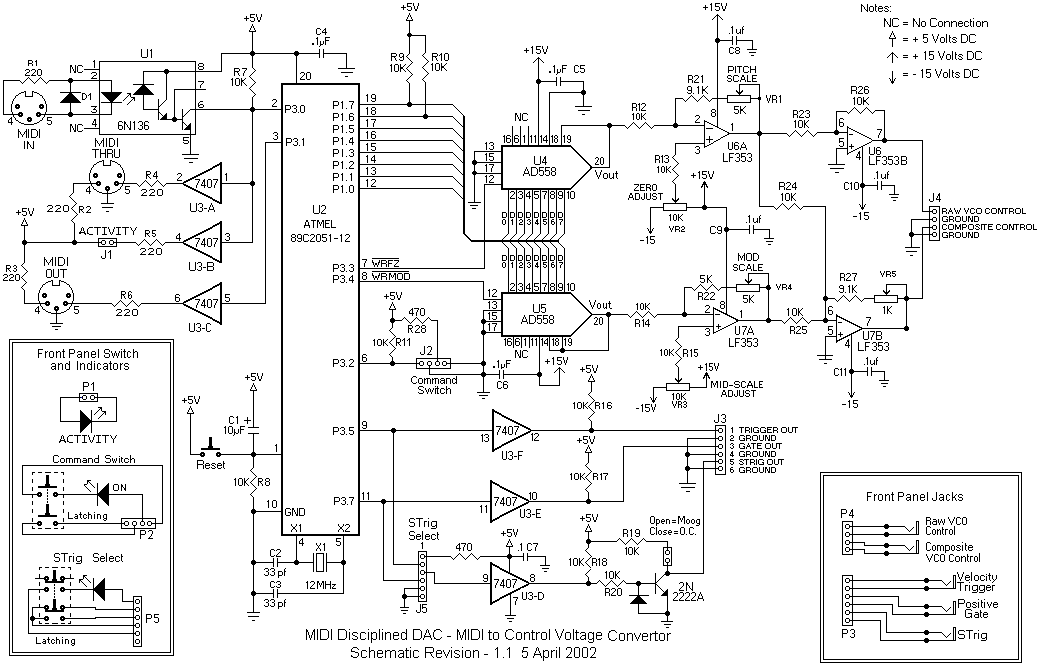

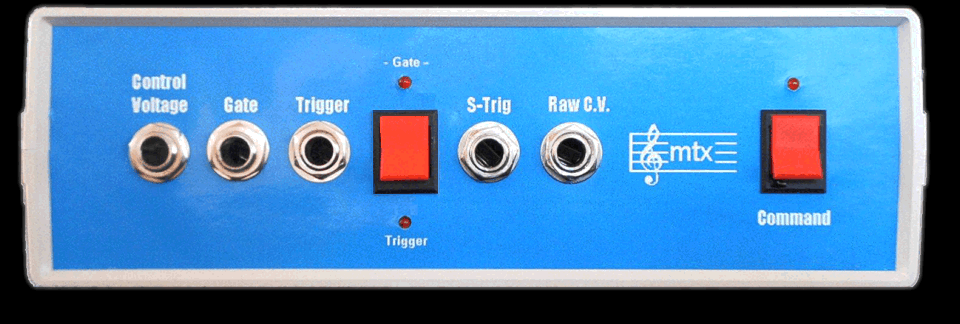

MIDI to Control Voltage Converter






DIY, Single Channel, MIDI to Control Voltage Interface for Exponential Response Synthesizers.

    • 10 Octave MIDI Note to Control Voltage Conversion with Pitch Bend;
    • +5V GATE Positive STEP and Velocity Responsive +5 Trigger Pulse control signals;
    • S-TRIG signal whose source derives from either the GATE or Trigger;
    • Integrated LFO and Random Noise Modulation Sources;
    • Parameter Programming using MIDI CC Messages or from Keyboard using front panel Command Switch;

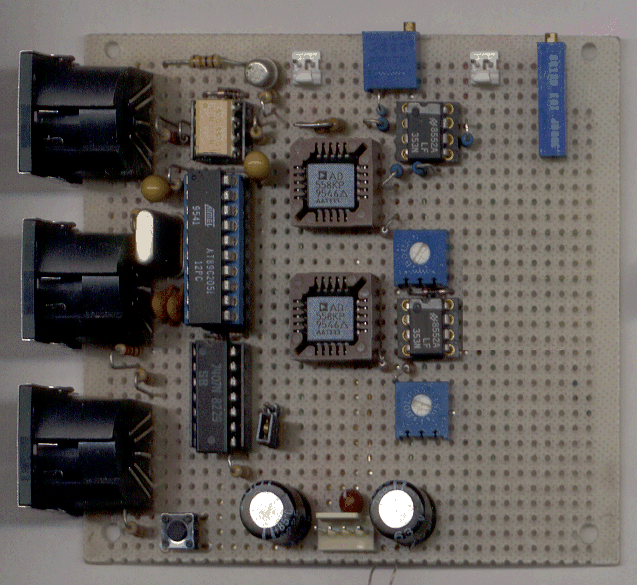

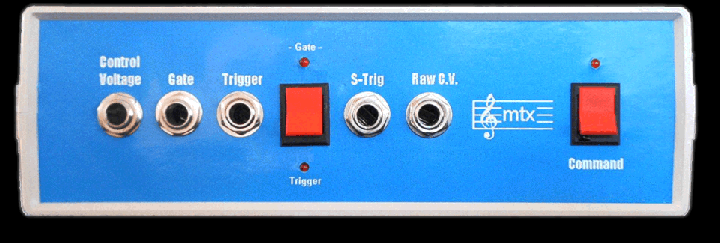

Text Box: This design has been constructed and presently controls a Concertmate MG-1.





NOTE:   This is a project not a product.  The following set of pages document the software and hardware efforts involved to construct the MDD and describes the resulting characteristics.  Feel free to address questions to the author phillip m gallo.




MDD Information Pages



MIDI Implementation         Synthesizer Interface        Operational Information         Feature Description

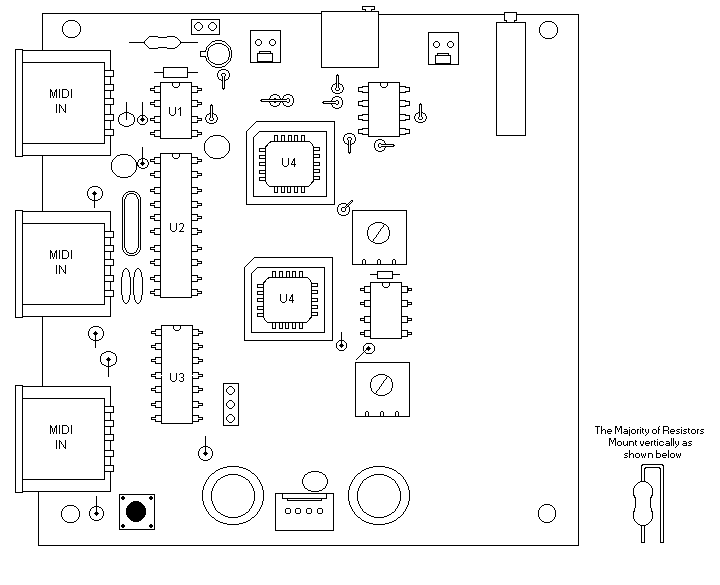

MDD DIY Construction Information Files

VIEW Files: "Left" click
SAVE Files: "Right" click and select "Save Target As .."
