Pump Location for Hydraulic Slides |
|
|
|
Location of Hydraulic Pump for Slides On Mountaineer 335RLBS |
|
|
|
 |
|
|
|
 |
|
|
|

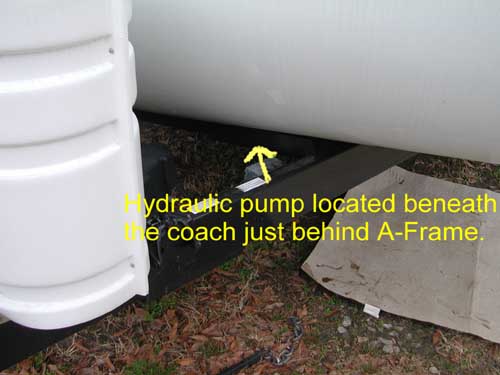

The hydraulic pump sits in a tray welded to the coach frame just behind the A-Frame on the drivers side of the coach. |
|
|
|

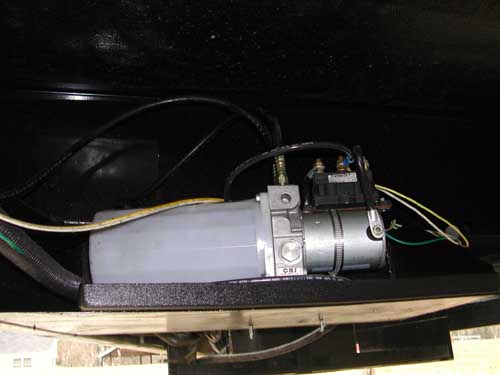

Picture of hydraulic pump as viewed from underneath the coach. The pump is easily accessible with the front of the coach raised using the electric tongue jack. |
|
|
|
|
|
 |
|
