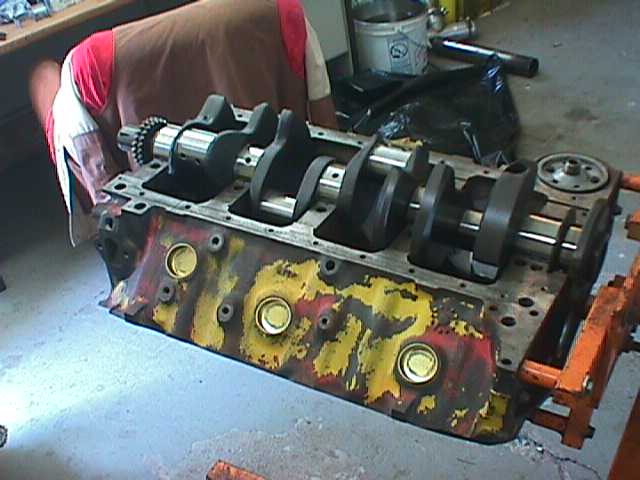

| Fresh from the machine shop, new sleeve #7 cyl, installing the forged crank |
 |
 |

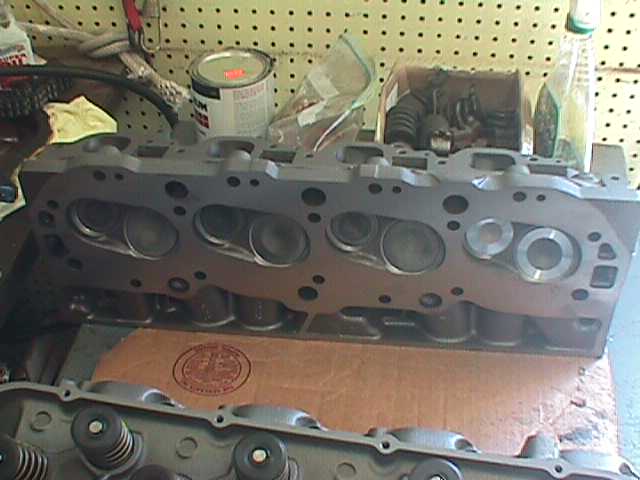

| Rebuilt heads |
 |

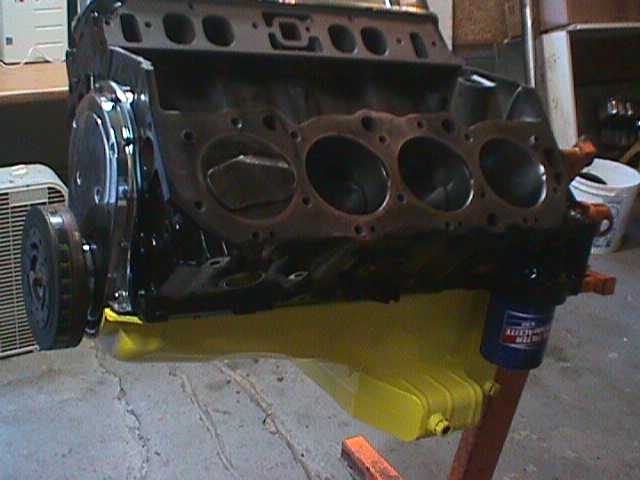

| after a coat of black enamel, new piston on #7, ready for install |
| New comp cam 244 dur 550 lift |
 |

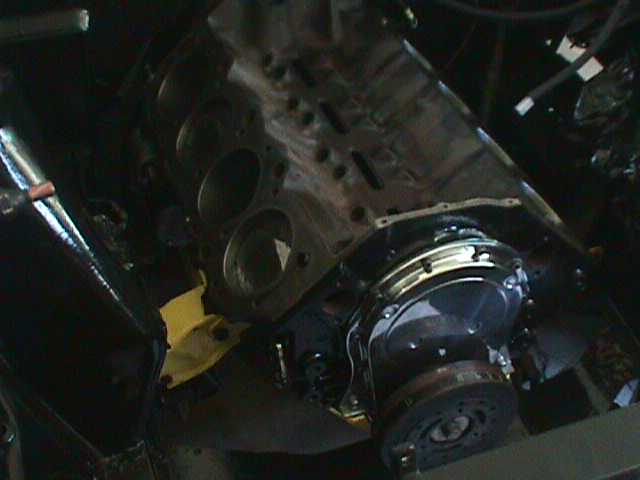

| Block installed |
| Clean, inspect block, install 1 sleeve, remove broken tap, $330.00 hone bores, install cam bearings, machine groove in rear cam journal Disassemble, clean, inspect and measure 2 bheads, install $698.00 1 guide knurl, machine remaining guides tops for HP seals, install 3 helicoils, resurface decks, grind valves and seats, reassamble and adjust spring heights and pressures. Disassemble, clean, inspect and magnaflux head, NO GOOD $14.50 intake & exhaust valve, valve guide, shims $41.00 Cylinder Sleeve $35.00 Cam bearing set $35.00 Brass freeze plug kit $16.50 rebuild rod, r&r piston, check for straightness $45.00 1 new piston $45.00 ------------------------------------------------------------------------------------------------------------ Total $1245.50 tax $ 8.63 ------------------------------------------------------------------------------------------------------------ Grand total machine shop $1254.13 |
| MACHINE SHOP COSTS |
| THE REST OF THE COSTS |
| 1 Valve train kit, includes Cam, lifters, Valve springs, retainers, valve locks, $355.00 valve stem seals and timing chain Main and rod bearings $ 55.00 ring set $ 95.00 Gasket set $113.00 Rocker Studs $ 30.00 New pushrod set 7/16 $110.00 Bead blast intake $ 50.00 Aluminum water pump $ 40.00 new heads off e-bay $ 40.00 Aluminum valve covers $ 80.00 Aluminum timing cover $ 65.00 ------------------------------------------------------------------------------------------------------------------- Total $1033.00 machine shop $1254.13 ------------------------------------------------------------------------------------------------------------------- Grand total $2287.13 |
