Mustang 5-Liter
T-5 Transmission Swap Parts List

To convert your Mustang from an AOD to a manual T-5 Transmission you'll need...

Motorsport T-5 Transmission
Steel Input Bearing Retainer (optional)
Bellhousing
Heat Shield
Clutch Assembly (Disc, Pressure Plate, Throwout Bearing)
Pilot Bearing
Flywheel (157 Tooth)
T-5 Shifter
Under-Dash Clutch/Brake Pedal Assembly w/ Starter Interlock
T-5 Transmission Wiring Harness
Speedometer Cable Drive Gear
HD Clutch Release Fork
Clutch Fork ball-stud
Adjustable Aluminum Clutch Quadrant Kit or
Clutch Cable Kit
Dust Boot (Cable to Clutch)
T-5 Transmission Mount
T-5 H-Pipe Bracket
Console Shifter Boot and Shift Tunnel Gaskets
Shifter Knob
Assorted hardware (flywheel bolts, bellhousing bolts, etc)
Redline Synthetic MTL Fluid

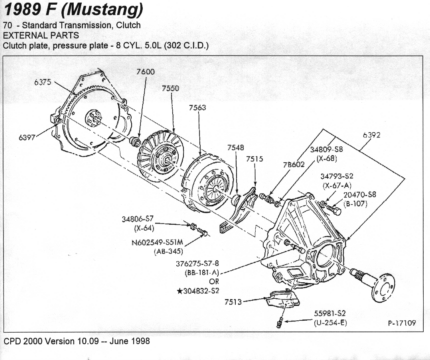

Schematic diagram courtesy of: �Ford Motor Company

Rear Main Bearing Seal - should be replaced when transmission is out - optional
Ford EEC-IV Computer Module for Manual Transmission (part # F3ZZ12A650CA) - optional
- - - - - - - - - - - - - - - - - -

For additional help, refer to "Slip, Sliding Away" (page 82) in the Jan. 1997 issue of Muscle Mustangs & Fast Fords
