N E W S ! ! ! !
In this page you'll find all the stuff actually founded. It has been classified in different references: Structures - Instruments - Panels - Various Item. In the last section -Various snapshot- you'll find some pics and it will be updated regoulary.
LATEST DEVELOPMENTS#1

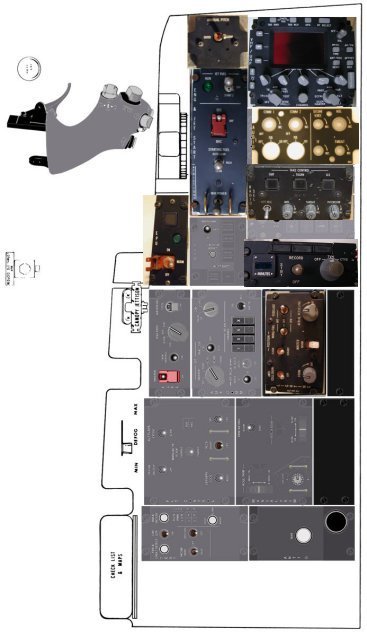

Left Side and Aux Consolle with Throttle and Throttle's Rail
LATEST DEVELOPMENTS#2

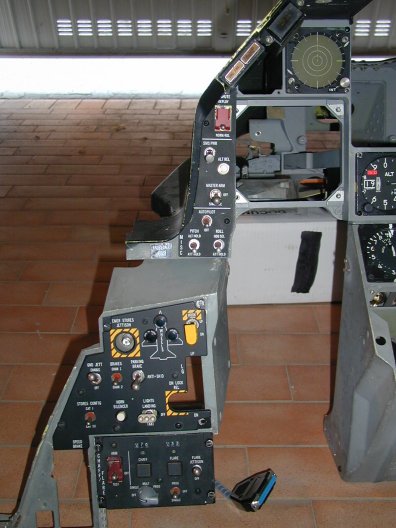

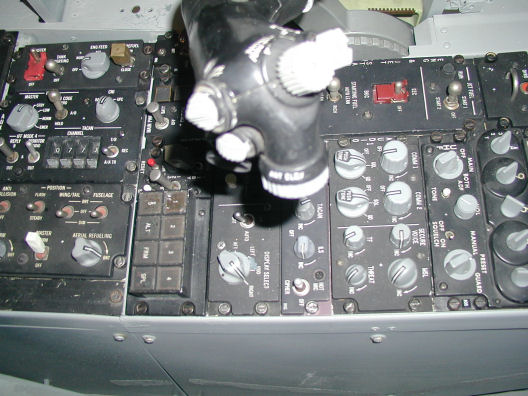

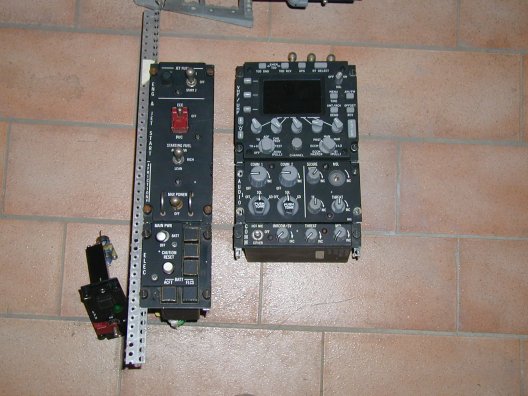

Left Side Consolle Details and Throttle
LATEST DEVELOPMENTS#3
LATEST DEVELOPMENTS#4
Main Instrument Panel partially populated, Hud custom made by RICHOET
STRUCTURE

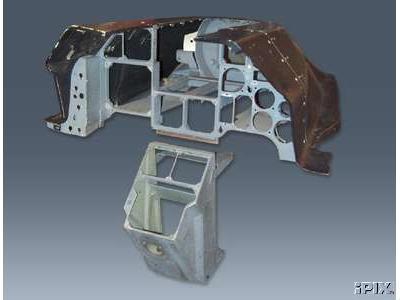

Cockpit Frame with center consolle and glareshield

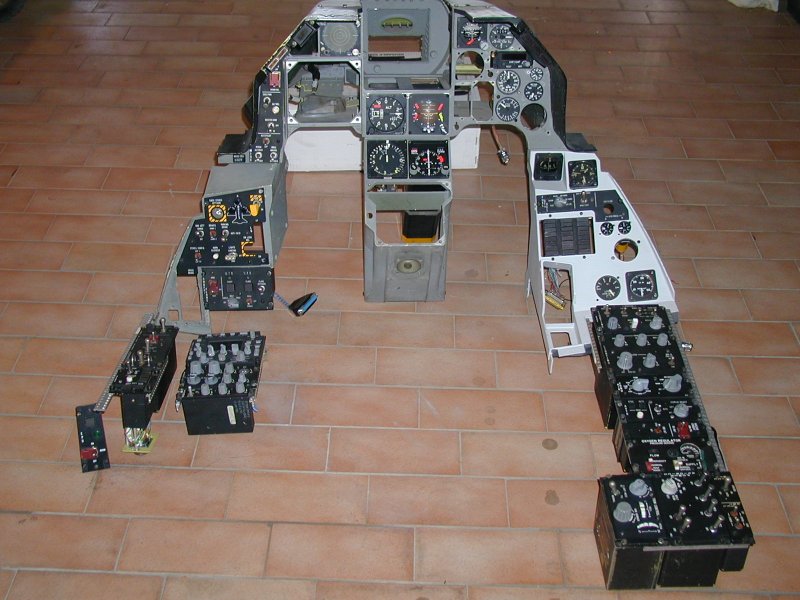

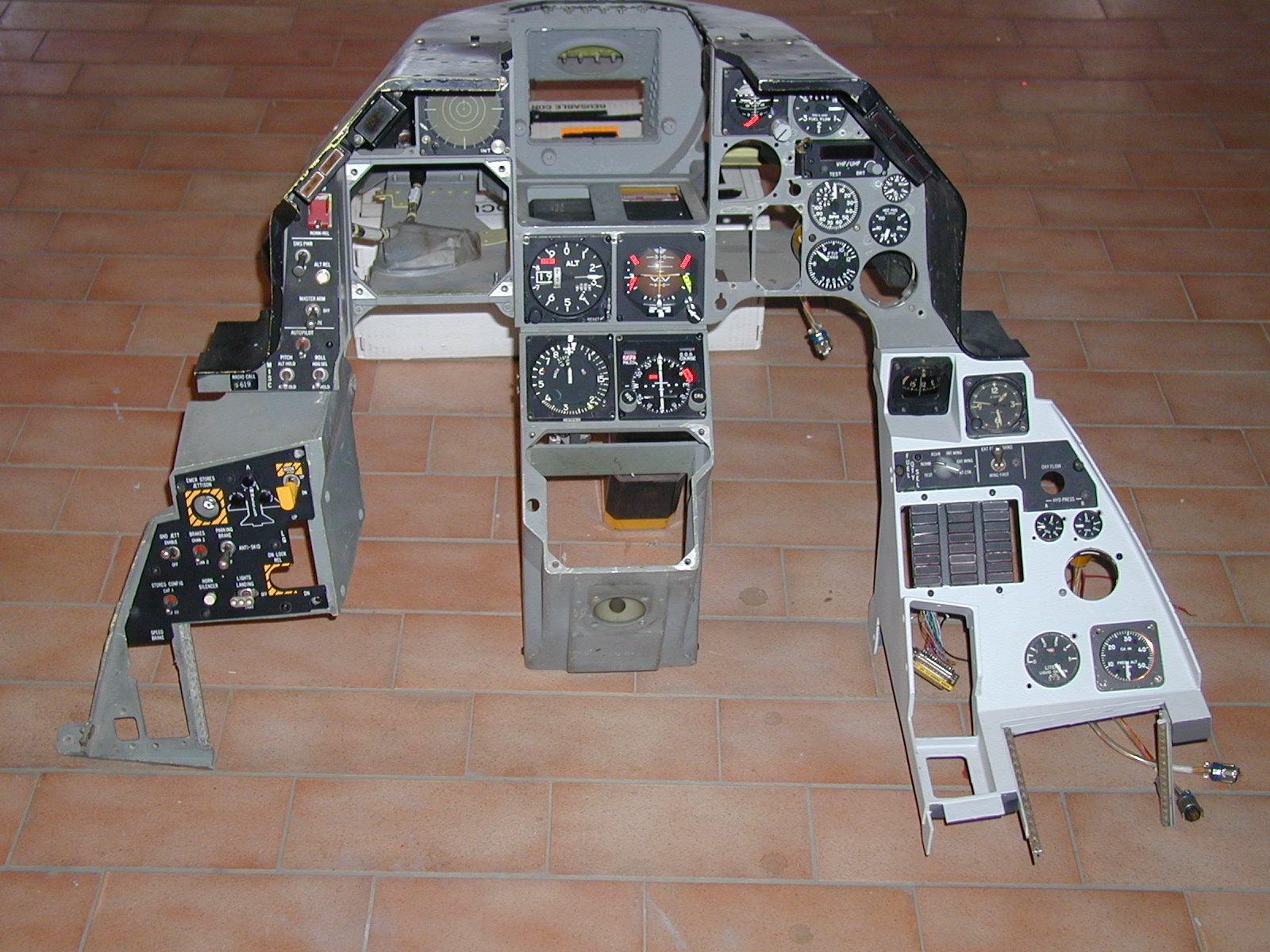

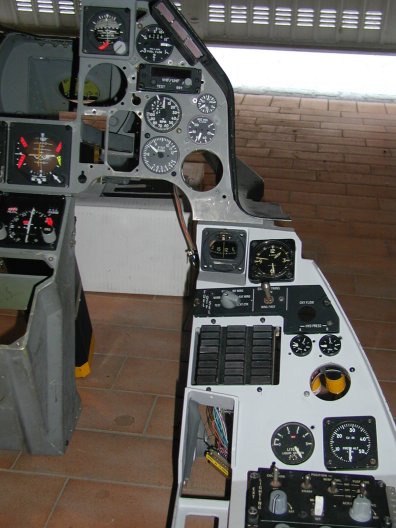

Cockpit Frame with some instruments and lights

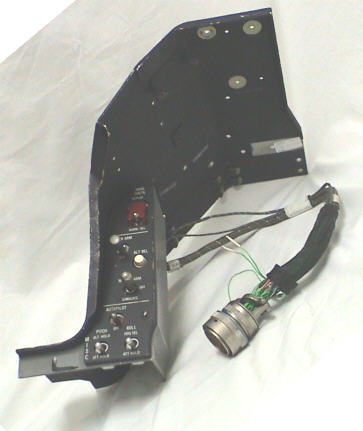

Left Hood with Complete MISC Panel
INSTRUMENTS

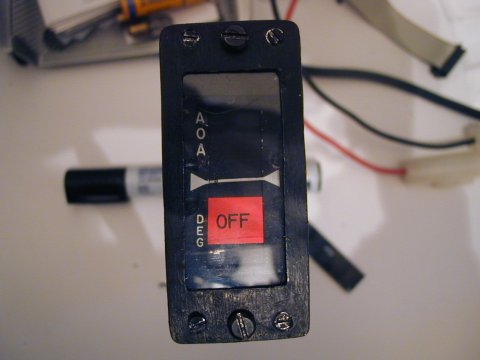

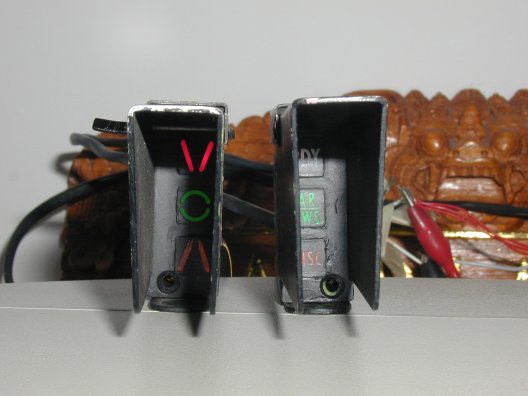

AOA - Angle of Attack

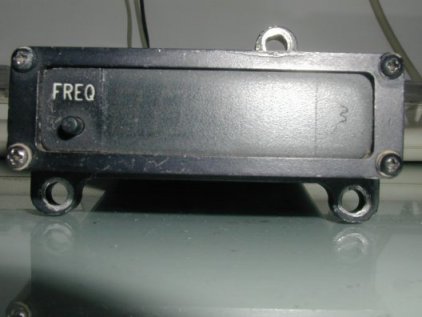

Frequency Display Indicator

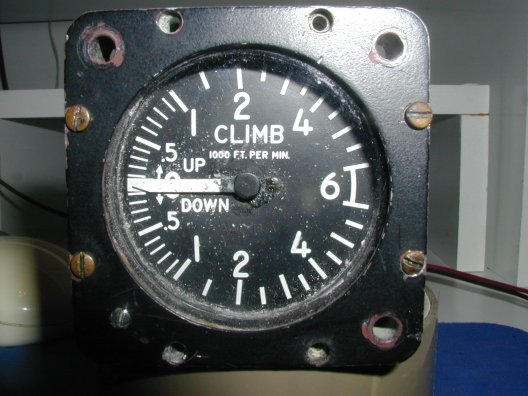

Vertical Speed Indicator F-16 A

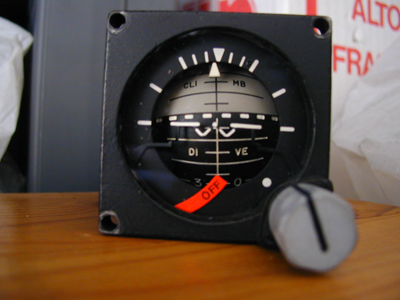

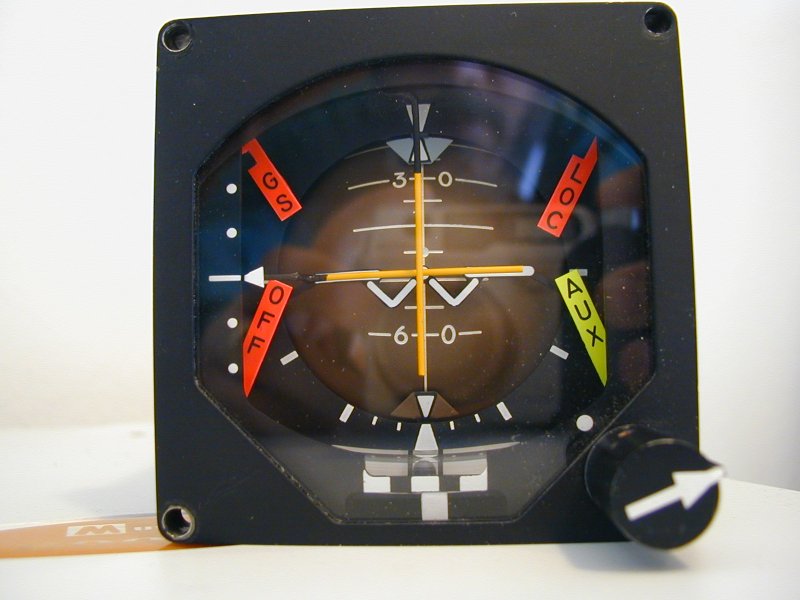

Attitude Deviation Indicator -The Real One-

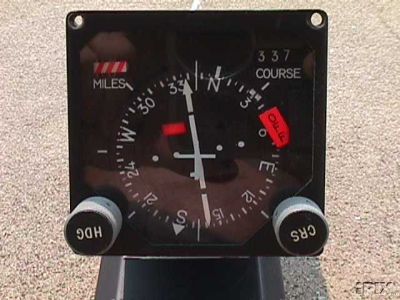

Horizontal Situation Indicator -The Real One-

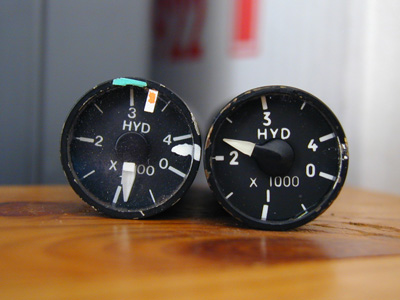

Hydraulics Gauges F-16 all Blocks
Oil Pressure Gauge F-16 all Blocks

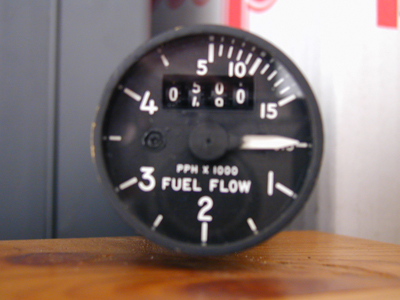

Fuel Flow Gauge F-16 Blocks 10-15
The same lighted
PANELS

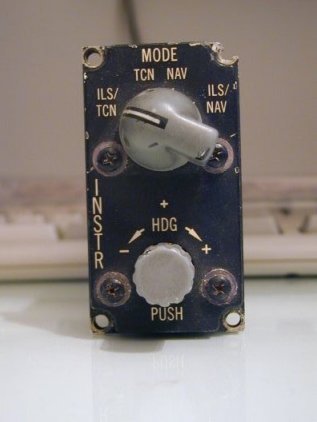

Instrument Mode Select

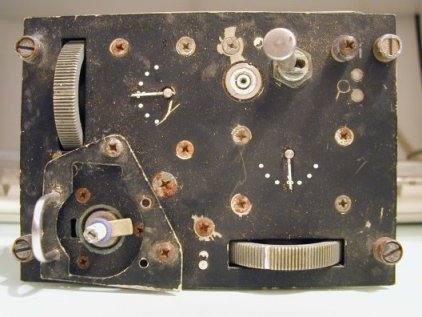

F-16 Manual Trim Panel missing the Backlited plate and needs restoration

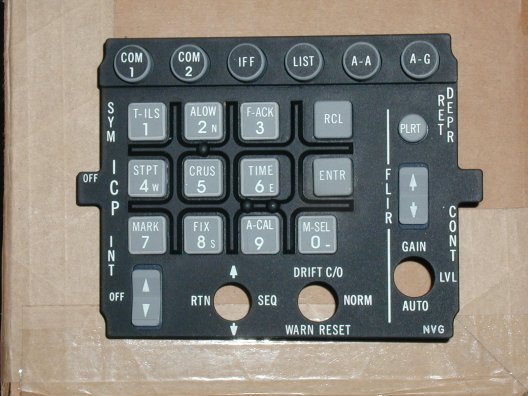

ICP panel

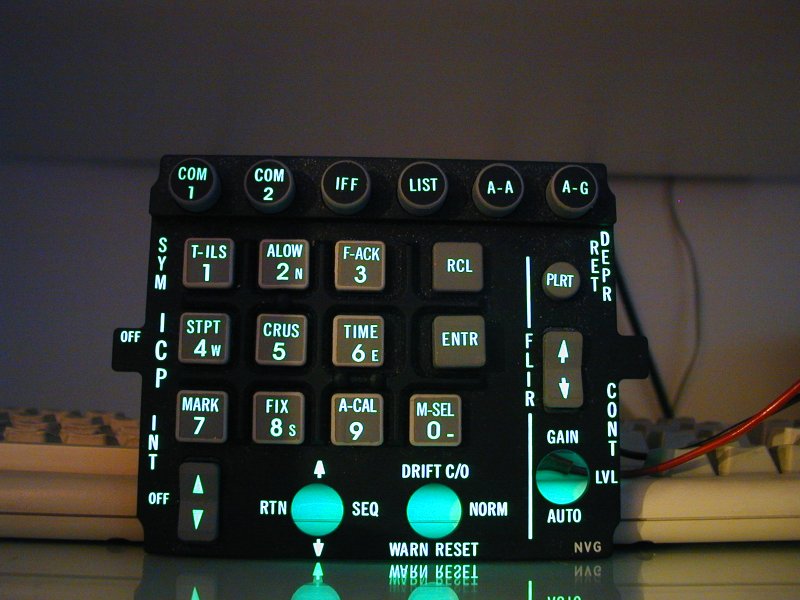

The same lighted

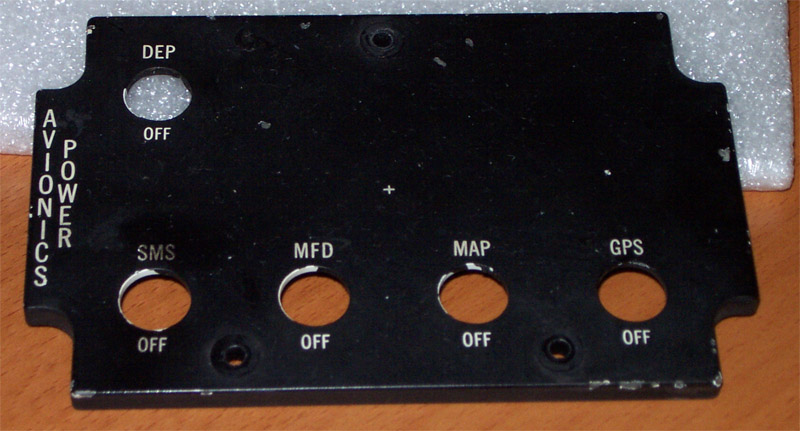

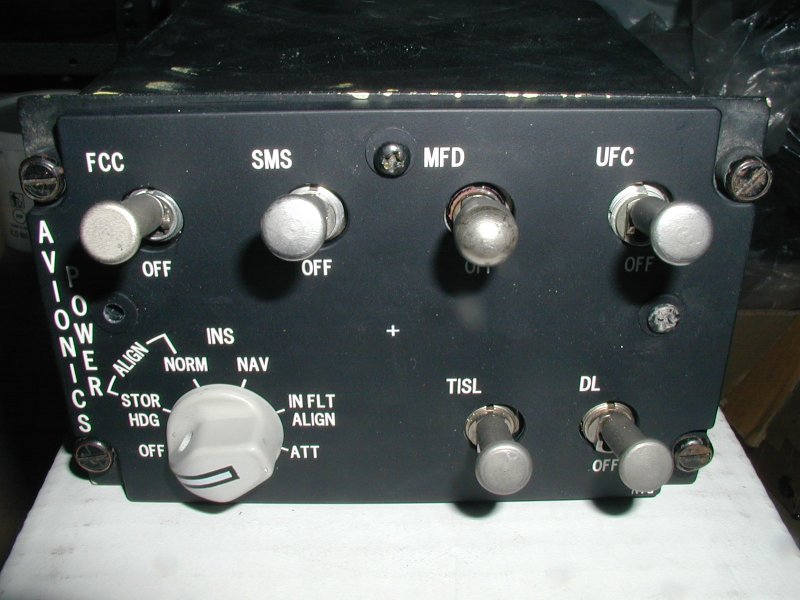

Avionics Power Panel F-16 C/D
ELEC Panel

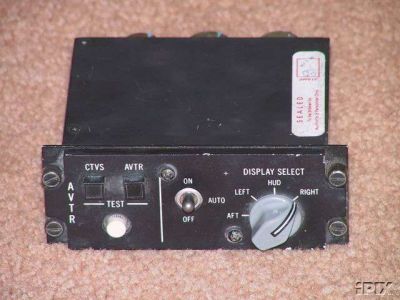

AVTR panel

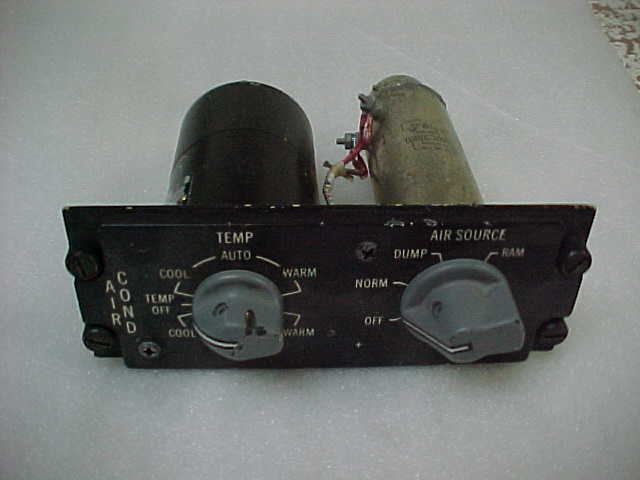

Air Conditioning Panel

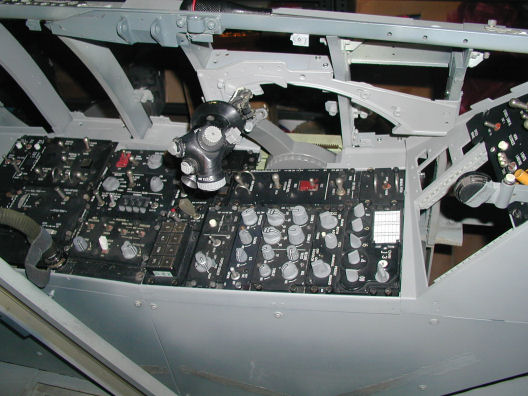

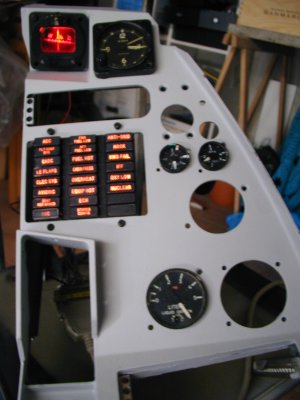

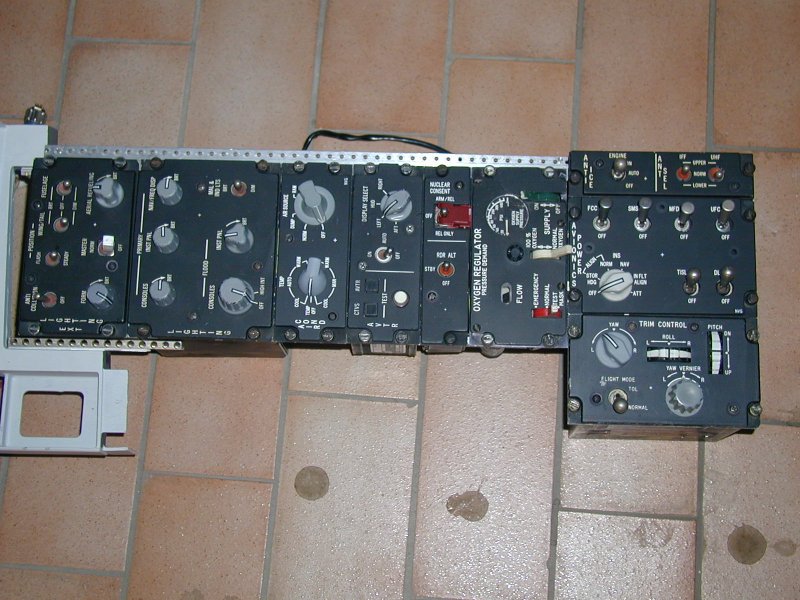

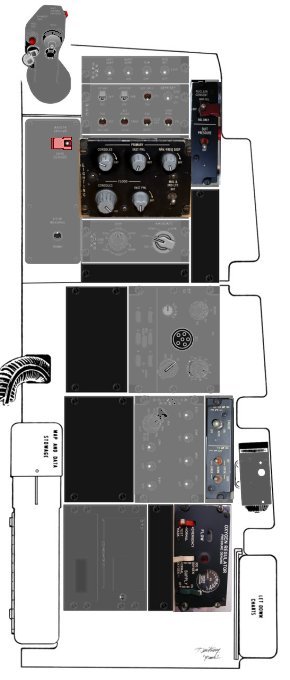

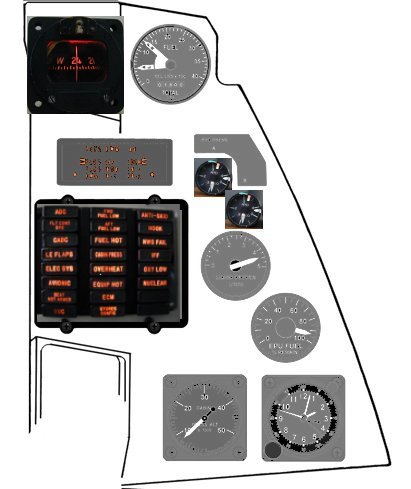

RIGHT AUX. CONSOLLE ACTUAL LAYOUT

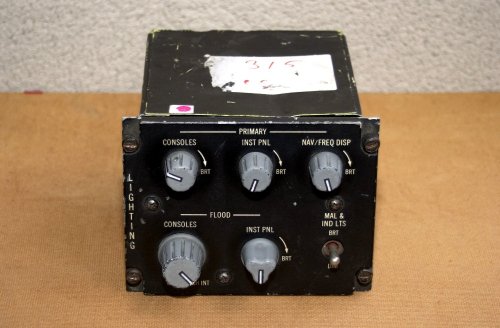

Internal Lighting Panel F-16 All Blocks
Chaff & Flare Panel F-16 All Blocks exept newer and MLU
Landing Lights Panel F-16 All Blocks

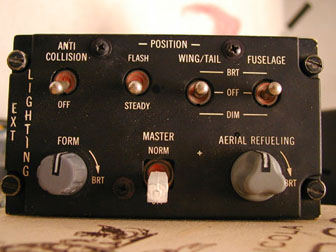

External Lighting Panel F-16 All Blocks

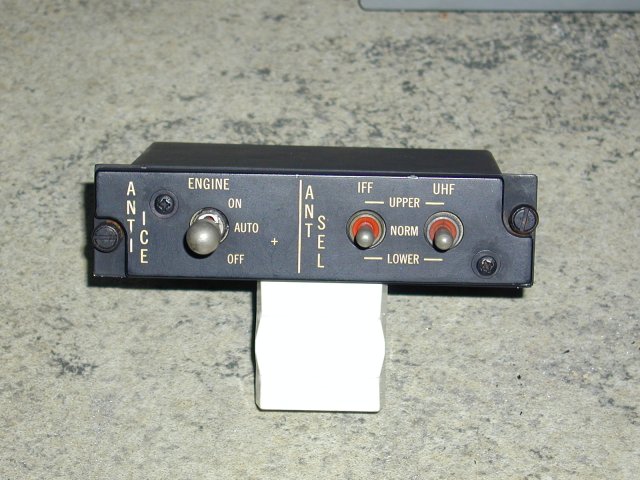

Anti-Ice Panels F-16 All Blocks
Master Caution Panel F-16 Block 10-15
The same with some lighted Warnings
Oxygen Regulator -All aircraft-

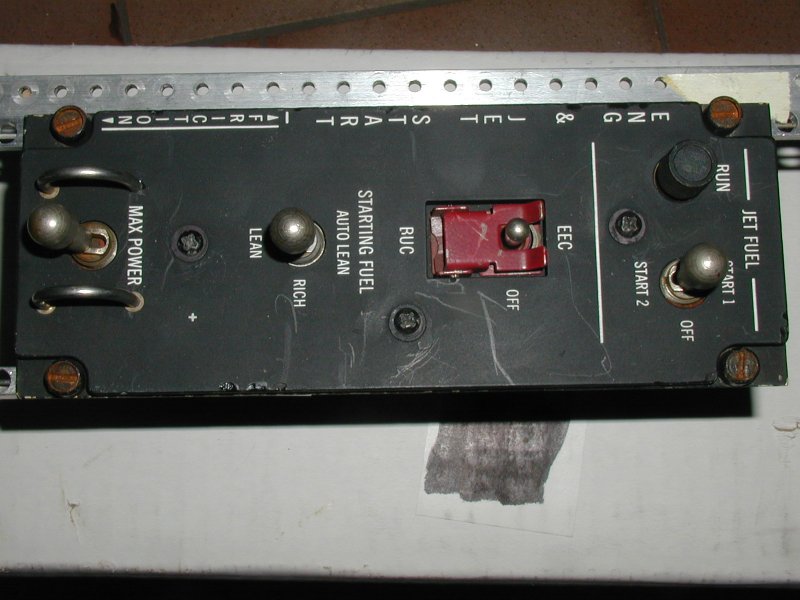

F-16 Pratt & Whitney F100 Engine Start Panel

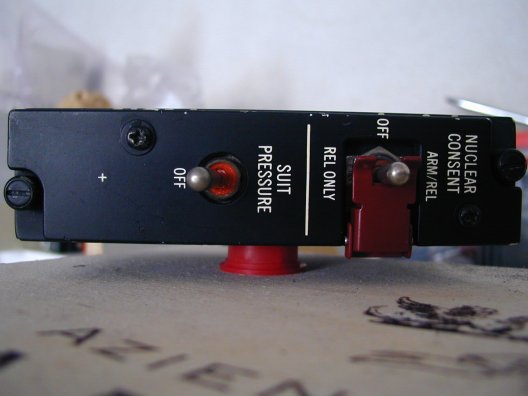

Nuclear Consent Panel F-16 All Blocks
V/UHF and NAV-COM Panel not an F-16 panel but will be used for different simulators
VARIOUS ITEMS
Throttle Wheel and Alternate Gear Handle

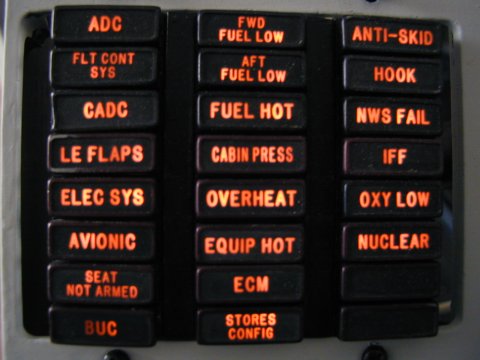

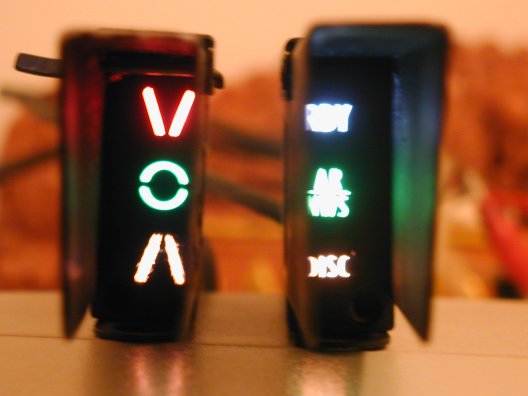

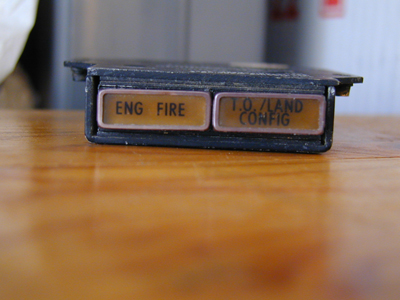

Glareshield Warnings Lights F-16 Block 10-15
By Davide "STRALE"
