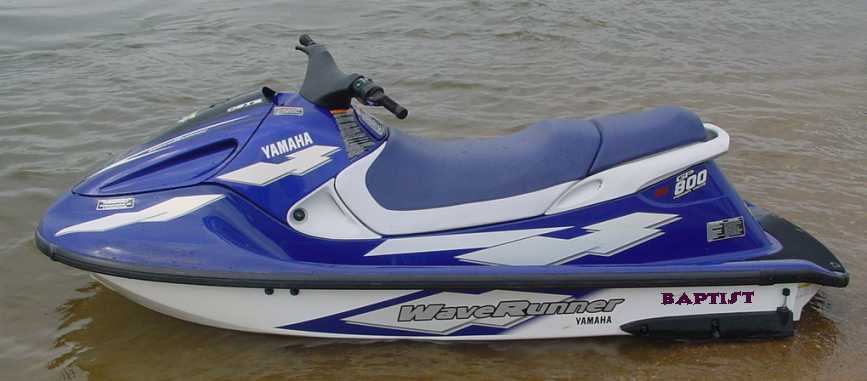

| Waverunner GP800 |
| DIMENSIONS & CAPACITY Dry weight: 498 pounds Draft: N/A Length: 112.6 Width: 44.1 inches Height: 38.2 inches Seat Length: 43.3 inches (centerline) Rider Capacity: 1 or 2 persons Weight Capacity: 352 pounds HULL & COMPONENTS Hull Type: Semi-V Dead Rise: 20 degrees @ stern, 26 degrees at bow Hull Material: SMC (sheet-molded compound) Deck Material: SMC (sheet-molded compound) Sponsons: Standard, adjustable Steering System: Nonadjustable Bilge System: Automatic Siphon Storage: Standard, bow tub and glove box Storage Capacity: 4.4-gallon bow tub/0.26-gallon glove box Cooler: Standard, under rear section of seat Cooler Capacity: 5.6 gallons Boarding Step: No Rear Boarding Handle: Standard Passenger Handles: Standard, integrated into rear boarding handle Seat Strap: No Lanyard: Standard, wristband Throttle Lever: Trigger type Mirrors: No Traction Pads: Standard, full length ENGINE Engine Type: Yamaha two-stroke, inline twin cylinder with YPVS (Yamaha Power Valve System) Bore x Stroke: 80.0mm x 78.0mm Displacement: 784cc Horsepower 120 @ 7,000 rpm Compression Ratio (corrected): 6.6:1 Intake System: Crankcase reed valve Fuel Induction System: 2 Mikuni BN "I" 44mm carburetors with accelerator pump Exhaust System: Yamaha Power Valve System with cast-aluminum pipe - wet exhaust with YSSS (Yamaha Sound Suppression System) Cooling System: Water-cooled, open loop DRIVE SYSTEM Jet Pump: Axial flow, single stage Jet-Pump Diameter: 144mm Jet-Pump Reduction-Nozzle Diameter: 82mm Impeller: Stainless-steel, three-blade, 17.1-degree pitch Thrust: N/A Transmission: Direct drive Trim System: Standard, QSTS (quick-shift trim system) - manual 5-position ELECTRICAL Battery 12 volt, 19 amp Ignition: Digital CDI with 7,500 rpm rev limit Ignition Timing: 15 degrees BTDC-20 degrees BTDC Spark-Plug Type: NGK BR8ES Starting System: Electric Security System: Standard, Yamaha PADLOC - personalized programmable digital security system INSTRUMENTATION Fuel Gauge: Standard, LCD with low-level light and beeper Oil Gauge: Standard, LCD with low-level light and beeper Speedometer: Standard, digital Tachometer: Standard, LCD Hour Meter: Standard, digital Trim Gauge: Standard, mechanical indicator on twist grip Misc. Instrumentation: Low-voltage and engine overheat warning lights and beepers, digital clock, trip meter, hour meter and trip timer Optional Instrumentation: N/A FUEL/LUBRICATION Recommended Fuel: Regular gasoline (87-octane minimum) Fuel Capacity (Inc. Reserve): 13.2 gallons Fuel Consumption: 12.9 gallons per hour (wide-open throttle) Reserve Capacity: 2.3 gallons Lubrication: Variable-rate oil injection (200:1-30:1) Oil Reservoir Capacity: 4.24 quarts |
 |
 |
 |
 |
