CONSTRUCTION PAGE HOW I DID IT

CLICK ON PHOTOS TO ENLARGE

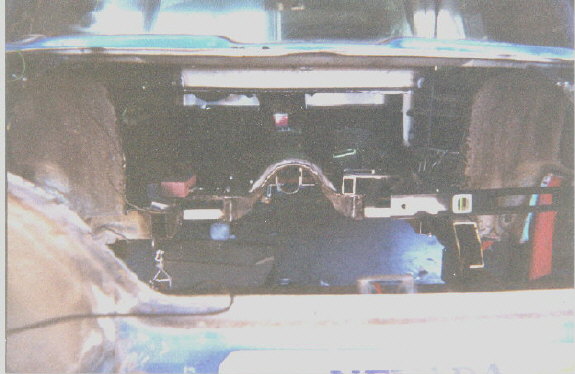

BUILT AND RECONSTURCTED IT MYSELF  HAD LOTSA FUN DOING IT !!!!!   <<<<< GUTTED IT OUT  AFTERWARDS THOUGHT I WAS GONA HAVE TO BRING ITS REMAINS TO THE BONEYARD!!!!!!!!!!!!

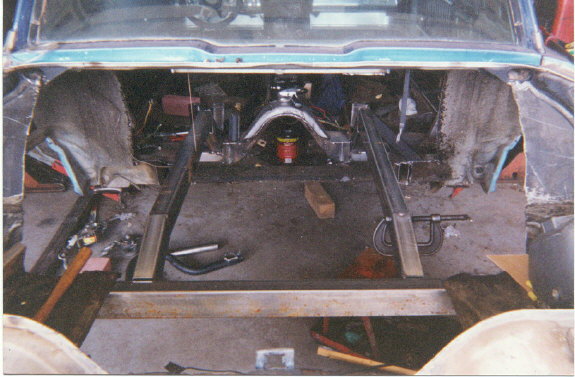

HAD TO RECONSTRUCT  THE FRAME WORK I COULDENT GET A KIT FOR A 1960 T BIRD SO I BUILT THE FRAME   MYSELF STARTED WITH  ALOT OF MEASURING AND INSIGHT  USED 2X3 SQARE STOCK 120 WALL!!!!!!!!!!!!!!!!!

I GOT THE BASIC OUTLAY OF THE FRAME WORK THEN DONE ALOT MORE MEASURING AND BACK TO THE DRAWING BOARD I HAD  TO FIGURE  THE CENTERLINES OF WHERE THE AXLES AND TIRE SPACE NEEDED!  MAJOR BRAIN TEASE   LOL!!!!!!!!!!!!!!!!!!!!!!!!

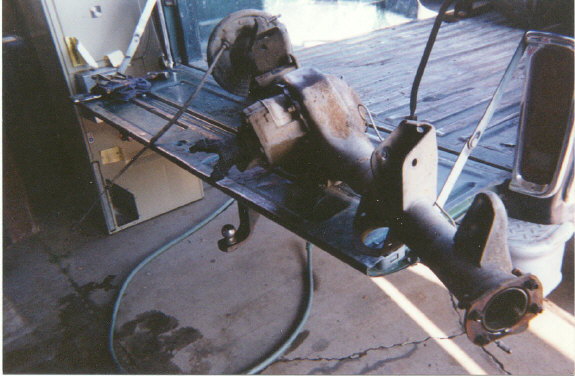

WENT TO THE BONE YARD PURCHASED A  HEAVY DUTY 9 INCH  FORD REAR END HOUSING OUT OF A 77 RANCHERO  LATER  SET UP WITH 456  WITH A SPOOL FULL LOCK!!!!!!!!!!!!!!!!!!

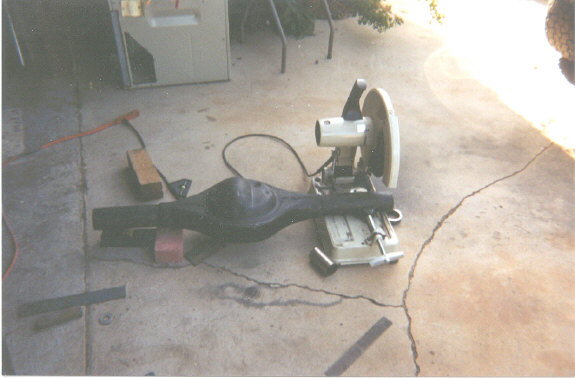

I HAD ALOT OF PREP WORK THAT NEEDED TO BE DONE BEFORE I REACHED  THIS POINT HAD TO REMOVE ALL THE ORIGINAL BRACKETTS  BUT YES  I NARROWED IT UP MYSELF!!!!!!!!!!!!!!!!!!!!!!!

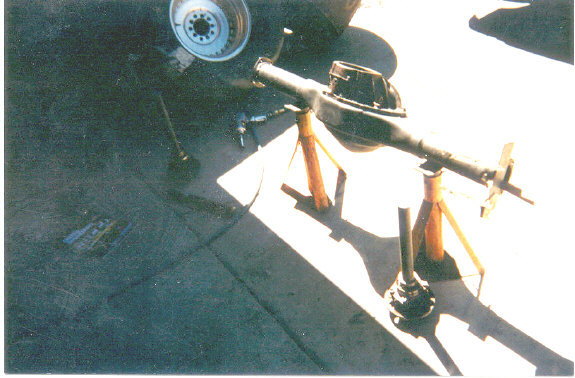

I HAD TO CUT THE ORIGINAL AXLES TO MAKE A TEMPLTE FOR THE AXLES THAT I HAD CUSTOM BUILT FROM STRANGE AXLES !!!!!!!!!!!!!!!!!

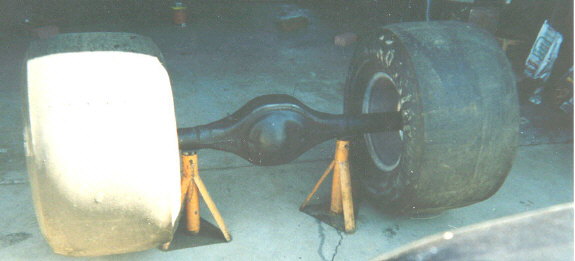

I SET THE TIRES IN PLACE FOR  YEAH YOU GUESSED IT MORE MEASURMENTS LOL !!!!!!!!!!!!!!!!!!!!!!!!!

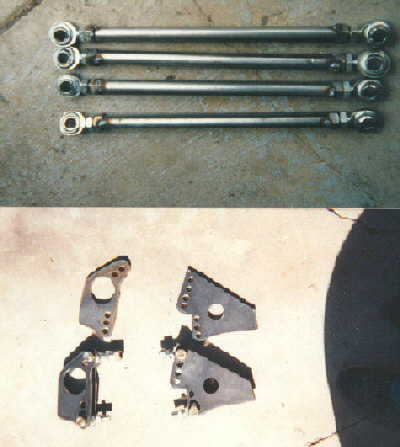

THIS IS A  FINISHED PIC OF MY FOUR LINK S AND BRACKETTS I BUILT!!!!!!!!!!

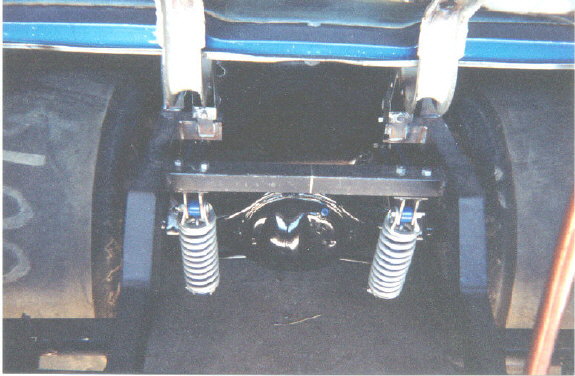

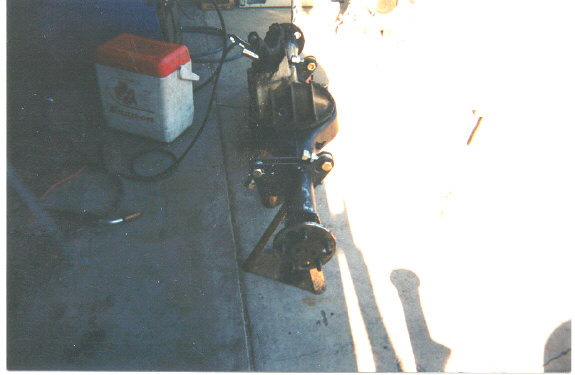

AFTER I GOT THINGS INTO PERSPECTIVE THEN I WELDED IT INTO PLACE !!!!!!!!!

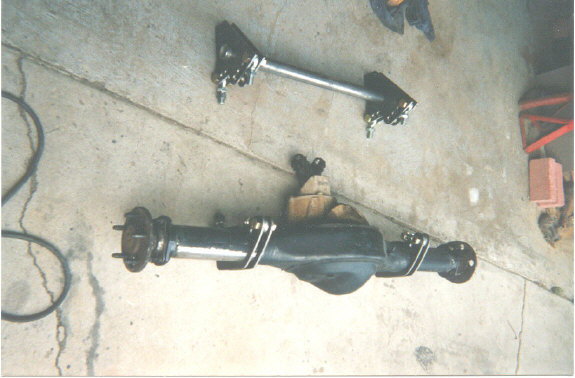

BRACKETTS AND HOUSING READY FOR INSTALLATION INTO THE CAR!!!!!!!!!!!!

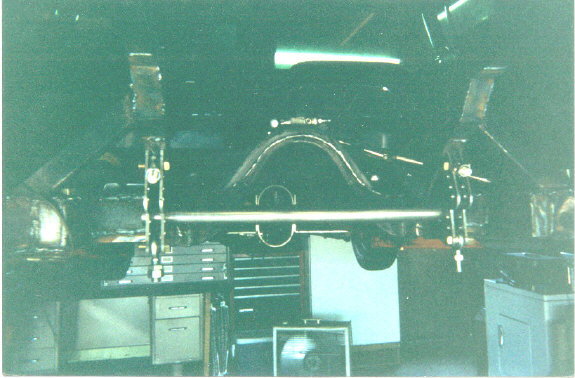

IT TOOK A BIT OF WORK TO GET THINGS LINED UP AND SQARE WITH THE FRAME WORK IN RELATIONSHIP TO THE  BODY BUT GOT IT SET UP RIGHT!!!!!!!

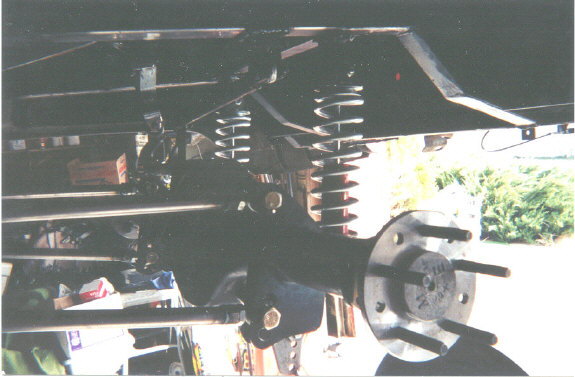

NOW I GOT IT PUT INTO THE CAR  LOOKS OK BUT  STILL NEED TO LINE IT UP YUPP MORE MEASURING!!!!!!!!!!!!!!!!!!!

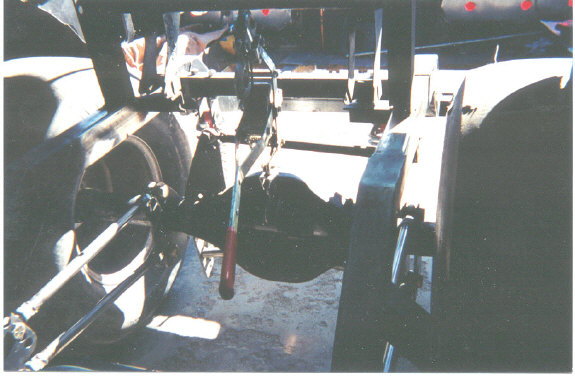

I GOT THE FOUR LINK AND HOUSING WITH THE SHOCKS AND TRACK BAR AND THE SLICKS ALL IN TACKED  ALL LOOKS LIKE A GO. !!!!!!!!!!!!!!!!

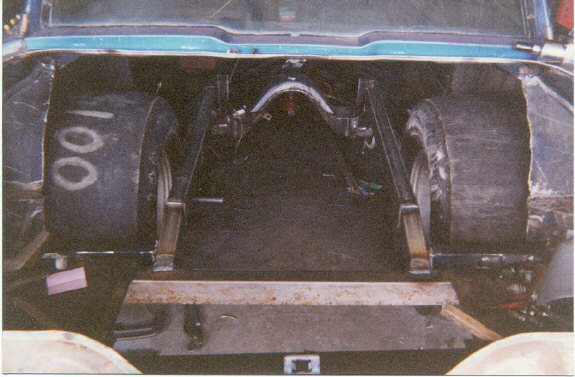

A VIEW  FROM THE TRUNK BEFORE THE TUBS WERE INSTALLED!!!!!!!!!!!!!!!
