General description |

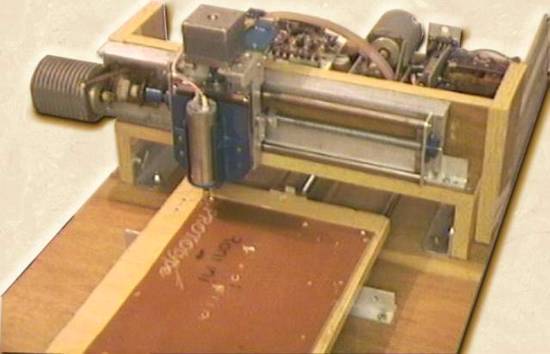

In bellow's picture, there is a general view of Engraver which I made in the last summer. Couple years ago I started to build up a PCB drilling machine, driven by a PC. At the beginning I wrote a small driver BASIC program, and that time was enough for me. After a while I thought that, I need one Engraver, for creating PCB... Last summer I discovered a free and very good program for driving an Engraver machine at ....
So... I begun to develop one system to match software requirements (otherwise it's very flexible and allow you to do a lot). The machine currently is 3 axis, with an X and Y range of around 300mm each and a Z range of around 30mm. Stepper motors drive each axis, with 3 geared down 7.5degree ALVO stepper motors "rescued" from old dot matrix printers.
|
For mechanical construction, I used two old dot-matrix printers (physically almost new) . I bought those printers from second-hand market, for only 5 $ both of them. Stepper motors from old fashioned dot-matrix printers are cheap and have enough power to be a good solution for one Engraver machine. I tested different type of electronic drivers for stepper motors. In following pages I will describe some of them.
|
|
electronic driver schematics 1 | electronic driver schematics 2 |
CNC Engraver gallery |
Links to pictures gallery, showing some details over system and also a few artwork examples.
Gallery 1 | Gallery 2 |
CNC Engraver Links |
Useful links to different pages, where you will find a lot information, starting from theory up to dedicated software.
CNC Engraver Links to Theory pages and Software |
Disclaimer !
I have designed these circuits for my own hobby use, and I presented here as it is. If you don't understand, how the described circuitry works, better don't use it!. I have tested the circuits presented in this page (all worked well ), but there is no guarantee that, the circuit descriptions and diagrams are entirely correct. |
