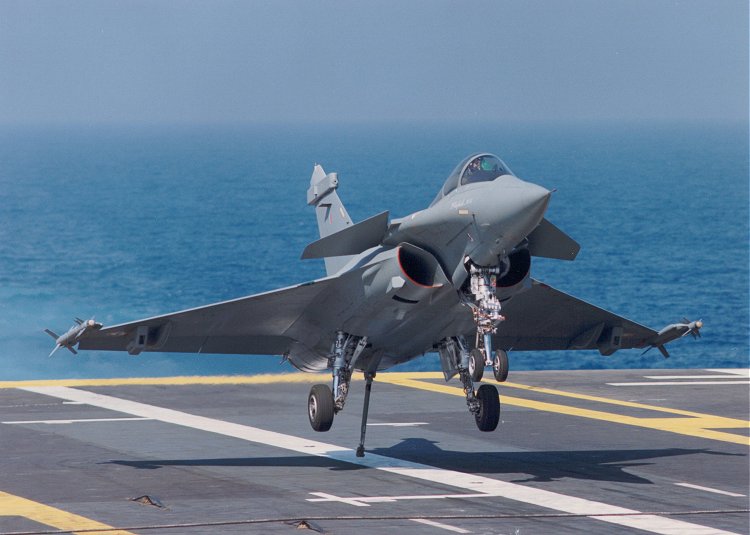

Dassault Rafale
More pics
Rafale is a twin-jet combat aircraft capable of carrying out a wide range of short- and long-range missions, including ground and sea attack, air defence and air superiority, reconnaissance, and high-accuracy strike or nuclear strike deterrence.
The aircraft has been developed for the French Air Force and Navy. 61 have been ordered (36 for the Air Force and 25 for the Navy) out of a total requirement of around 300 (234 for the Air Force and 60 for the Navy). 10 had been delivered by the end of 2001. The Rafale is produced in three variants, M,B and C. The Rafale M variant is a single seater carrier-based version for the navy, B and C are a two seater and a single seater for the Air Force. The Rafale M entered service in 2001 and seven aircraft are on the Charles de Gaulle aircraft carrier. Rafale B and C will enter service in 2003. A two-seater Rafale N version is being developed for the Navy for delivery in 2008.
COCKPIT:
The cockpit has hands-on throttle and stick control (HOTAS). The cockpit is equipped with a head-up, wide-angle holographic display from Thales Avionique, which provides aircraft control data, mission data and firing cues. A collimated, multi-image head-level display presents tactical situation and sensor data, and two touch-screen lateral displays show the aircraft system parameters and mission data. The pilot also has a helmet-mounted sight and display. A CCD camera and on-board recorder records the image of the head-up display throughout the mission.
WEAPONS:
The Rafale can carry payloads of over nine tons on 14 hardpoints for the Air Force version, and 13 for the naval version. The range of weapons includes Mica, Magic, Sidewinder, ASRAAM and AMRAAM air-to-air missiles; Apache, AS30L, ALARM, HARM, Maverick and PGM100 air-to-ground missiles; and Exocet/AM39, Penguin 3 and Harpoon anti-ship missiles. For a strategic mission, the Rafale can deliver the MBDA (formerly Aerospatiale) ASMP stand-off nuclear missile. Main weapons are expected to be the MBDA (formerly Matra BAe Dynamics) MICA air-to-air missile, MBDA Storm Shadow/Scalp EG stand-off cruise missile and the MBDA (Aerospatiale) AS 30 laser-guided missile.
The Rafale has a twin-gun pod and a GIAT 30mm DEFA 791B cannon, which can fire 2,500 rounds per minute.
The Rafale is equipped with laser designation pods for laser guidance of air-to-ground missiles.
COUNTERMEASURES:
The Rafale's electronic warfare system is the Spectra from Thales. Spectra incorporates solid state transmitter technology, radar warner, DAL laser warning receiver, missile warning, detection systems and jammers.
SENSORS:
The Rafale is equipped with an RBE2 radar, developed by Thales, which has look-down and shoot-down capability. The radar can track up to eight targets simultaneously and provides threat identification and prioritisation.
The optronic systems include the Thales/SAGEM OSF infrared search and track system, installed in the nose of the aircraft. The optronic suite carries out search, target identification, telemetry and automatic target discrimination and tracking.
NAVIGATIONS and COMMUNICATIONS:
The communications suite on the Rafale uses the Saturn onboard V/UHF radio, which is a second-generation, anti-jam tactical UHF radio for NATO. Saturn provides voice encryption in fast-frequency hopping mode. The aircraft is also equipped with fixed-frequency VHF/UHF radio for communications with civil air traffic control. A multifunction information distribution system (MIDS) terminal provides secure, high-data-rate tactical data exchange with NATO C2 stations, AWACS aircraft or naval ships.
Rafale is equipped with a Thales TLS 2000 navigation receiver, which is used for the approach phase of flight. The TLS 2000 integrates the instrument landing system (ILS), microwave landing system (MLS) and VHF omni-directional radio ranger (VOR) and marker functions.
The radar altimeter is the AHV 17 altimeter from Thales, which is suitable for very low flight. The Rafale has a TACAN tactical air navigation receiver for en route navigation and as a landing aid.
The Rafale has an SB25A combined interrogator-transponder developed by Thales. The SB25A is the first IFF using electronic scanning technology.
ENGINES:
The Rafale is powered by two M88-2 engines from SNECMA, each providing a thrust of 75kN. The aircraft is equipped for buddy-buddy refuelling with a flight refuelling hose reel and drogue pack.
