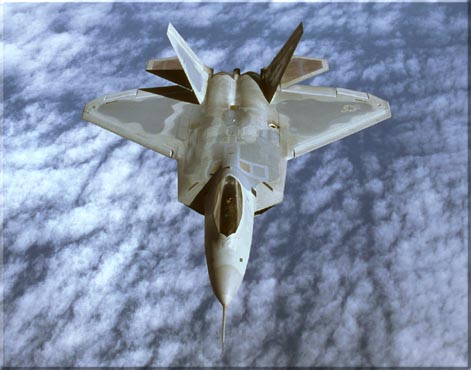

F-22 Raptor
More pics
MISSION:
The F-22's primary mission is to establish absolute control of the skies over any battlefield - a must-have in modern warfare. It provides first-look, first-shot, first-kill capability. The F-22 is an air superiority fighter with much improved capability over current Air Force aircraft. Its stealth, supercruise ability, integrated avionics and other features will make it the most potent fighter in the world
The F-22 Raptor incorporates the latest technological gains in low observables, avionics, materials, engine performance and aerodynamic design. Knowledge gained from proven weapon systems such as the F-15, F-16 and F-117 formed the foundation for F-22 development.
First look/first shot/first kill in all environments:
A combination of improved sensor capability, improved situational awareness and improved weapons provide first-kill opportunity against threats. The F-22 possesses a sophisticated sensor suite that allows the pilot to track, identify and shoot the threat before it detects the F-22. Significant effort is being placed on cockpit design and avionics fusion to improve the pilot's situational awareness. Advanced avionics technologies allow the F-22 sensors to gather integrate and display essential information in the most useful format to the pilot.
Reduced observable:
Advances in low-observable technologies provide significantly improved survivability and lethality against air-to-air and surface-to-air threats. The F-22's combination of reduced observability and supercruise accentuate the advantage of surprise in a tactical environment.
Supersonic persistence:
The F-22's engines produce more thrust than any current fighter engine, especially in military (non-afterburner) power. Called "supercruise," this characteristic allows the F-22 to efficiently cruise at supersonic airspeeds without using afterburners. This capability greatly expands the F-22's operating envelope in both speed and range over current fighters that must use afterburner to operate at supersonic speeds.
Increased maneuverability:
The F-22 has been extensively designed, tested and refined aerodynamically during the demonstration/validation (dem/val) phase and the current Engineering and Manufacturing Development (EMD) phase. The F-22's sophisticated aero-design and high thrust-to-weight ratio provide the capability to outmaneuver all current and projected threat aircraft. To ensure the F-22 provides air dominance for deep-interdiction aircraft, it operates at medium and high altitude at ranges superior to current generation air dominance aircraft.
Improved reliability and maintainability:
To ensure operational flexibility, the F-22 has better reliability and maintainability than any military fighter in history. Increased F-22 reliability and maintainability pays off in less manpower required to fix the aircraft and consequently less airlift required to support a deployed squadron. Additionally, reduced maintenance support provides the benefit of reduced life-cycle cost and the ability to operate more efficiently from prepared or dispersed operating locations.
Increased lethality and survivability:
The above characteristics provide a synergistic effect that ensures F-22 lethality against an advanced air threat. The combination of reduced observability and supercruise drastically shrinks surface-to-air engagement envelopes and minimizes threat capability to engage and shoot the F-22.
Air-to-surface capability:
The F-22 has a secondary role to attack surface targets. The aircraft will be capable of carrying two 1,000-pound Joint Direct Attack Munitions (JDAMs) internally and will use on-board avionics for navigation and weapons delivery support.
WEAPONS:
The F-22 is capable of carrying existing and planned air-to-air weapons. These include a full complement of medium-range missiles such as the AIM-120A advanced medium range air-to-air missile (AMRAAM), and short-range missiles such as the AIM-9 Sidewinder. The F-22 also will have a modernized version of the proven M61 internal gun and growth provisions for other weapons. The aircraft also will be capable of carrying Joint Direct Attack Munitions (JDAMs) and other ground-attack weapons.
ENGINES:
The F-22 will incorporate Pratt & Whitney's new F119 engine. Designed for efficient supersonic operation without afterburner use (supercruise), and with increased durability over today's engines, the F119 is a very high thrust-to-weight ratio engine. Advanced technologies in the F119 include integrated flight-propulsion controls and two-dimensional, thrust-vectoring engine nozzles.
