Here are a few programs that I have written to help in the shop. Some of them are for programming CNC machines. Some of the programs are quite long, so it is recommended that you purchase from CASIO the FA-123 program link cable. You can download the FA-123 software off the net. You will need the software to view the programs.

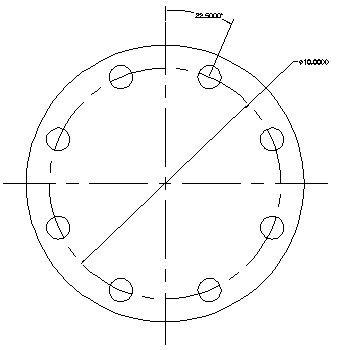

This program will calculate out the X and Y position for
an entire bolt circle. You will need the bolt circle dia, the number
of holes and the angle to the first hole.
bolt cir.zip
Program for calculating the X and Z moves for the finish
bore of a NPT thread. This is to help in programming a CNC lathe.
nptidx.zip
Program for helping in measuring a dovetail using two ground
pins of equal diameters.
dovetail.zip
Because of the old line shaft driven machines that I have,
I wrote this program to help me in making the pulley size and speed calculations.
pulleys.zip
This program is for doing 5 different jobs. One is the
G41 circle program. This is for ramping on and off using cutter diameter
compensation when milling a bore on a CNC machining center. It was written
for a Fanuc control. The second part of this program will give the dimensions
of a hole for a socket head cap screw. The third is for giving the amount
of gage blocks needed to obtain a specific angle using a sine bar. The forth
is for measuring the pitch of a thread using the three wire method. The
last one is for calculating the depth of a spot drill with different angles.
referen.zip
This program is for manually compensating the tool nose
radius when turning or boring toward the chuck. This would be the equivalent
to a G42 or right compensation if the machine was automatically compensating
for the tool nose radius. This program was done because some shops I have
seen don't like to use a G41 or G42. Go figure....
nserdc.zip

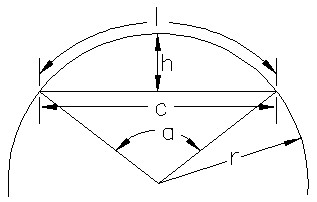

This program is for calculating segments of circles .
cirseg.Zip
I have many more programs that I am working on, such as a speed and feed program. When I have the program done to my satisfaction, I will post it. If you have any good ideas for machine shop programs then E-mail them to me at [email protected].
