FIREARM OVERLOAD

GranTech Testing - Lab

Using SKS and

CenterPoint

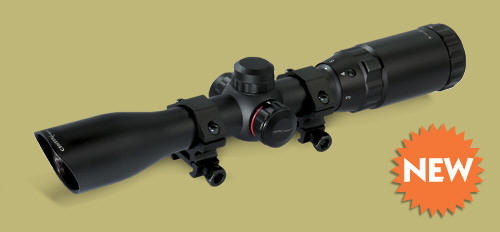

Adventure Class 2 x 7 -  32mm

Specifications:  Part number � CP273RG

  • Designed for rifle, shotgun and muzzleloader hunting
  • Red/Green dual illuminated Mil-Dot reticle
  • True Hunter windage and elevation adjustment dials
  • Up to 5.2 inches of eye relief
  • Parallax set at 100 yds
  • 1/4 MOA click
  • Includes flip open lens covers and rings
  • One piece tube construction
  • Nitrogen filled
  • CenterPoint's Advantage lens coating reduces light loss and limits glare, while allowing optimum light transmission
  • Ergonomically designed grips for fast focus eyepiece and magnification
  • 100% waterproof, fogproof and shockproof
  • Limited Lifetime Warranty

    Comes with rings and shims.


    You would not think a scope you pick up at Walmart, in a clam shell plastic display, selling for $69.00  could function as well as others costing 3 times more. My Simmons scope 1.5 x 5 x 32 was dropped and became bent. Simmons scope had a diamond reticle, and the windage and elevation were not adjustable by fingertips. the scope new cost $110.00.

    The first part of any purchase is a bit of research. CenterPoint is Crosman.  http://www.centerpointoptics.com/

    Checks of the web had most people liking the scope or at least the brand.

    Installation:

    It came with weaver style rings and plastic shims. I had to use the rings that came with my SKS, but I did use the shims. Nice touch for a inexpensive scope.

    Test Sequence:

    1- Will the scope Zero, optics clear, red green illumination works

    2- Will the scope hold zero over multiple days

    3- Will the scope hold zero at 100 yds, dial in elevation change for 200yds,

    Hit target 4 inch balloons multiple 4 targets, then reset elevation  back same number of clicks as you just set forward. Should stay aimed at 100 yds.

    Results:

    Testing over 3 separate days  over a 10 day time span.

    1 & 2 -Scope held zero at 50, 100 yds over multiple days.

      Optics were clear on sunny and cloudy day, red and green illumination worked fine.

    3- Scope Zeroed at 100 yds, 3 shot group confirmed. the ballistic table says the bullet will drop 7 inches. With the scope 1/4 moa that will be 1/2 at 200 yds. Computes to 14 clicks up. Clicks applied 14 up. Should aim for 200 yds. 1 shot - missed 4 shots hit 4 inch balloon.

    Scope was adjusted down 14 clicks for reset to 100 yd. A 3 shot group confirmed the zero was held.

    Step 3 was repeated multiple times.

    This scope functioned fine. I like the illumination, Mil-Dot, the easy turret clicks to set the elevation and wind. Comes with free flip up lens covers and two batteries.









SAFETY FIRST - when you are dead, you don't get a second chance.              USE YOUR BRAIN and WATCH your FINGER!


�Copyright 1998 - 2008 All Rights Reserved

William Ed  Fowler "AceEyeEd" , Owings Mills, Maryland

Updted on 9/28/2008  by Ed Fowler
