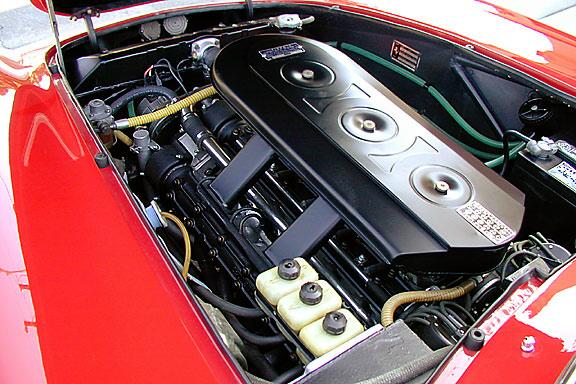

Engine:

Front longitudinal 60° V12, light alloy cylinder block and head



Bore & Stroke:

77 x 58.8 mm



Unitary and Total Displacement:

273.81/3,285.72 cc



Compression Ratio:

9.2:1



Max. Power Output:

300 bhp at 8,000 rpm; 91 bhp/litre

Timing Gear:

2 valves per cylinder, twin overhead camshafts per cylinder bank



Fuel Feed:

6 Weber 40 DCN/9 carburettors



Ignition:

2 distributors (1 distributor per cylinder bank)



Transmission:

Dry, multi-plate clutch, 5-speed Gearbox + reverse, conventional differential



Chassis:

Tubular steel

Front Suspension:

Independent, double wishbones, coil springs



Rear Suspension:

Independent, double wishbones, coil springs



Brakes:

Dunlop discs with servo assist.



Cooling System:

1 front radiator



Wheelbase and Front/ Rear Track:

2,400/1,401/1,417 mm

Dry Weight:

1,100 kg



Tyres:

205-14



Fuel Tank:

94 litres



Top Speed:

268 km/h
