For the Technically minded –

Warmoth Neck:              Mahogany with Rosewood fingerboard

Scale:                             24 ¾”

Warmoth Body:              Mahogany with flamed maple laminated top

 Tuners:                           Schaller, locking

 Pickups       Neck:        DiMarzio ‘Humbucker from Hell’ DP156

                       Bridge:     DiMarzio Virtual PAF (bridge) DP197

Bridge,Tailpiece:           Gotoh tune-O-matic. TonePros locking tailpiece Studs

Strap pins:                       Schaller Strap Lock

Wiring:                              1 vol (treble roll off) 2 tone. Coil cut. 3 way P/U Selector

Finish              Neck:        Water soluble dye stains on timber. 'Hard' Shellac. Rubbed to satin as per Polishers' Handbook. Headstock rubbed to gloss.

                         Top:          Water soluble dye stains on timber shellac seal coat VHT sptay can             nitrocellulose lacquer rubbed to gloss as per Guitar Player Repair Guide pg 270

                        Back:        Water soluble dye to timber. Hard shellac. Rubbed to satin

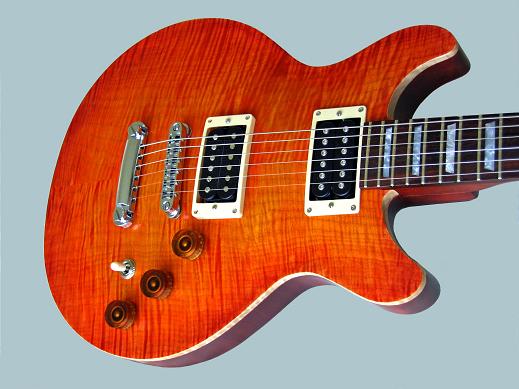

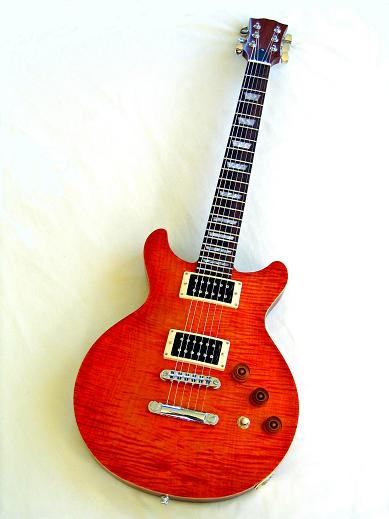

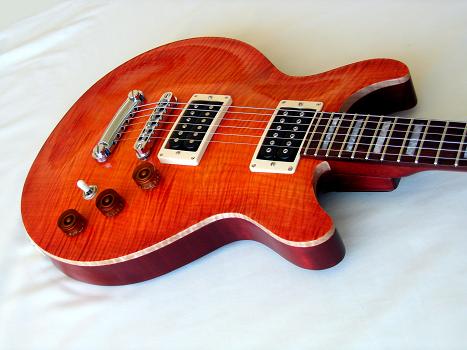

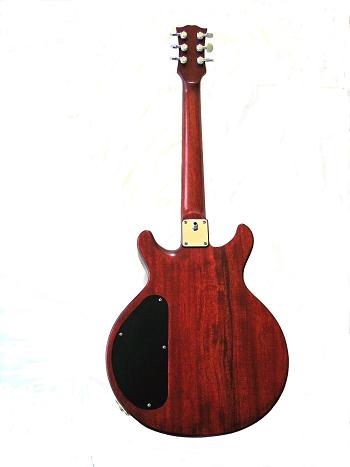

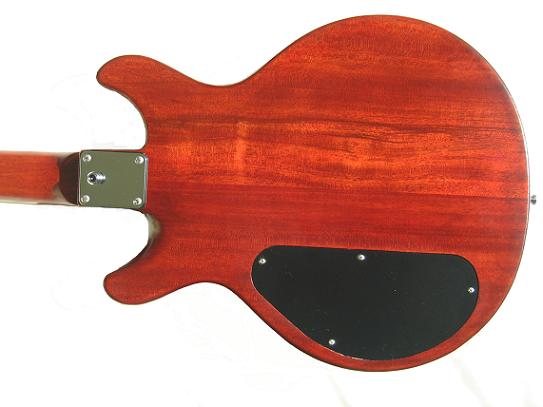

Picturtes 1 to 5. Well..here it is..

Despite my crappy soldering everything works. I must say the bridge pickup is just murderous. The fattest treble in the world – if you like paradoxes. Best thing I’ve heard in years!! LOL!!

The other two are shedding nitro fumes for a week or so.

CYS, Robbo.
