Barra de Progreso personalizada

Vamos a construir una barra de progreso en un formulario para indicar la leida de los registros de un RecordSet. Es muy importante que leas al final de la pagina la linea de color rojo, es donde indicaras la tabla, query o sentencia SQL de donde se obtendran los registros a leer.

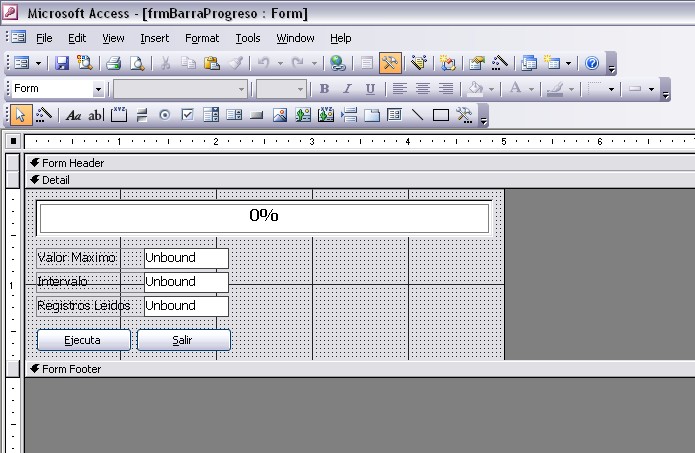

Antes que nada crea un formulario con los siguientes atributos:

Nombre: frmBarraProgreso
Titulo: Barra de progreso
Modal=Si
Emergente=Si
Botones de navegacion=No
Lineas de division=No
Selector de registros=No
Ancho=7200
Alto=2565
Estilo de borde=Delgado (Thin)
ControlBox=Si (Yes)
Botones Min Max=None
Close Button=No

Crea los siguientes controles con estos atributos:

Control Name: boxFrame
Control Type: Rectangulo
Top: 180
Left: 180
Width: 6840
Height: 540
=========================================
Control Name: lblPorcentaje
Caption:
Control Type: Etiqueta
Top: 240
Left: 240
Width: 0
Height: 420
=========================================
Control Name: lblCaption
Caption: 0%
Control Type: Etiqueta
Top: 240
Left: 240
Width: 6720
Height: 420
=========================================
Control Name: txtValMax
Control Type: Cuadro de Texto
Top: 900
Left: 1800
Width: 1260
Height: 300
=========================================
Control Name: Label4
Caption: Valor Maximo
Control Type: Etiqueta
Top: 900
Left: 180
Width: 1620
Height: 300
=========================================
Control Name: txtInter
Control Type: Cuadro de Texto
Top: 1260
Left: 1800
Width: 1260
Height: 300
=========================================
Control Name: Label6
Caption: Intervalo
Control Type: Etiqueta
Top: 1260
Left: 180
Width: 1620
Height: 300
=========================================
Control Name: txtRecordsRead
Control Type: Cuadro de Texto
Top: 1620
Left: 1800
Width: 1260
Height: 300
=========================================
Control Name: Label10
Caption: Registros Leidos
Control Type: Etiqueta
Top: 1620
Left: 180
Width: 1620
Height: 300
=========================================
Control Name: cmdRun
Caption: &Ejecuta
Control Type: Boton de Comando
Top: 2100
Left: 180
Width: 1440
Height: 360
=========================================
Control Name: cmdClose
Caption: &Salir
Control Type: Boton de Comando
Top: 2100
Left: 1680
Width: 1440
Height: 360
=========================================

Y por ultimo pega este codigo en la ventana de VBA

Private Sub cmdClose_Click()
DoCmd.Close acForm, Me.Name
End Sub
Private Sub cmdRun_Click()
Dim i As Double '//Intervalo de avance
Dim j As Long '//Cuenta
Dim w As Long '//Ancho de la etiqueta de porcentaje
Dim rst As ADODB.Recordset
Set rst = New ADODB.Recordset
rst.Open "dbo_costs45", CurrentProject.Connection, adOpenKeyset, adLockReadOnly
'//Revisamos que el Recordset contenga registros
If rst.BOF And rst.EOF Then
MsgBox "no hay registros"
rst.Close
Set rst = Nothing
Exit Sub
End If
Me.txtValMax.SetFocus
Me.cmdRun.Enabled = False
Me.cmdClose.Enabled = False
'//Ponemos a 0 el ancho de la etiqueta lblPorcentaje que es la que representa el avance
Me.lblPorcentaje.Width = 0
'//Ponemos la cantidad de registros del Recordset en el campo txtValMax
Me.txtValMax = rst.RecordCount
Me.txtInter = 1
'//Intervalo de avance del porcentaje
i = Me.lblCaption.Width / rst.RecordCount
j = 1
Do Until rst.EOF
DoEvents
Me.lblPorcentaje.Width = j * i
Me.lblCaption.Caption = Round(((j * i) / Me.lblCaption.Width) * 100, 0) & " %"
Me.Repaint
txtRecordsRead = j
j = j + 1
rst.MoveNext
Loop
rst.Close
Set rst = Nothing
Me.cmdRun.Enabled = True
Me.cmdClose.Enabled = True
Exit Sub
Error_cmdRun_Click:
MsgBox "Ocurrio error " & Err.Number & ", " & Err.Description, vbCritical + vbOKOnly, "Aviso"
rst.Close
Set rst = Nothing
Me.cmdRun.Enabled = True
Me.cmdClose.Enabled = True
Exit Sub
End Sub

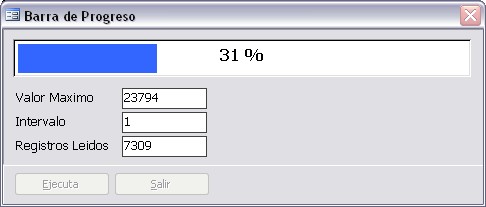

Vista final del formulario

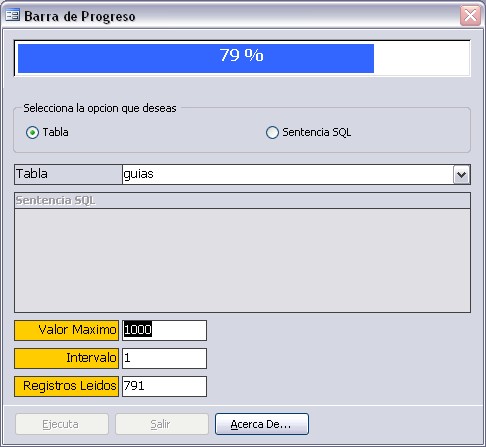

Screen shot de la ultima revision
