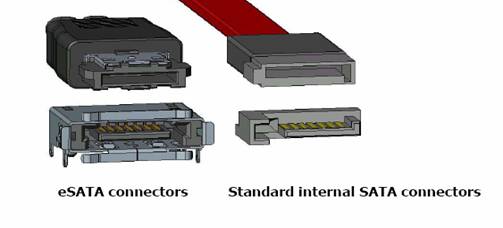

Pin 7 6 5 4 3 2 1 Pin 1 2
3 4 5 6 7
SATA Pin out DATA
|
PIN # |
Signal Name |
Signal Description |
|
1 |
GND |
Ground |
|
2 |
A+ |
Transmit + |
|
3 |
A- |
Transmit - |
|
4 |
GND |
Ground |
|
5 |
B- |
Receive - |
|
6 |
B+ |
Receive + |
|
7 |
GND |
Ground |
Yes the pin out is the same but the pin count is in the
other direction, at least at the ASUS P5K motherboard.
