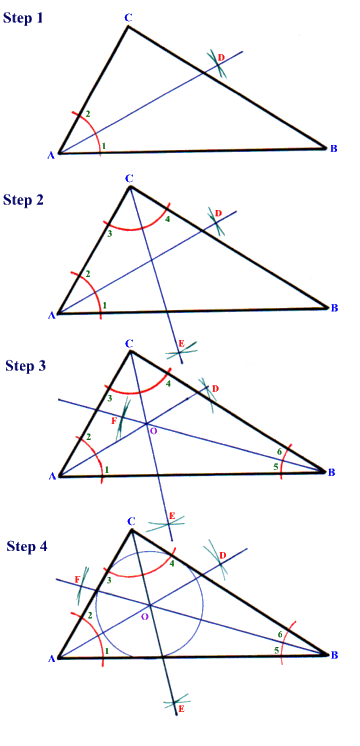

Sketch a triangle

with an inscribed circle

1.- Bisect angle A




 2.- Bisect angle C







3.- Bisect angle B

     The intersection of the three

      bisecting lines is the center of

      the circle.

      Label the center O





4.- Place the tip of the compass at

      point O and draw an inside circle

      as shown in step 4.

      The radius of this circle has to be

       of a such measurement that the

       the circle should  touch only

       one point of each side of the

       triangle.
