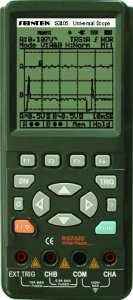

S2405Reader.xls - This is actually MsExcell workbook with macros I have created to import *.WFM files created by the S2405 communicator software. It is freeware, use at your own risk. This one may not be the latest version available. Send me an e-mail if you want to get the latest version.
This spreadsheet is capable to plot the waveforms and interpret the file header data, that indicate the measurement type and other information concerning the measurement.
The *.WFM files are composed of a 14 bytes header and two series of data, each is composed of 125 data points with a byte each. Even if you are working with only one channel, both of them are recorded.
You will see a wider vertical range than shown on the scope screen because it has only 132 lines and the captured values range from 0 to 255.
I am now trying to figure out if it is possible to capture 512 points of data on a single shoot mode as is told on the device datasheet.
Please provide a feedback if you have tried this file and report bugs found.
|
