Sukhoi SU-7 'Fitter-A' for FS2004

Flight Simulator 2004 Project Page

Sukhoi SU-7 'Fitter A' - created with FS Design Studio v2 Color schemes on this project model are published with the kind permission of Americo Maia. http://geocities.yahoo.com.br/alvmaia/Sukhoi/

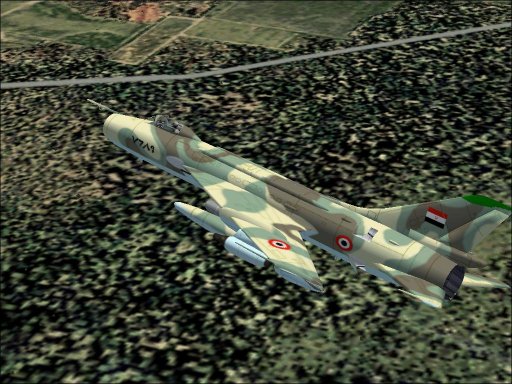

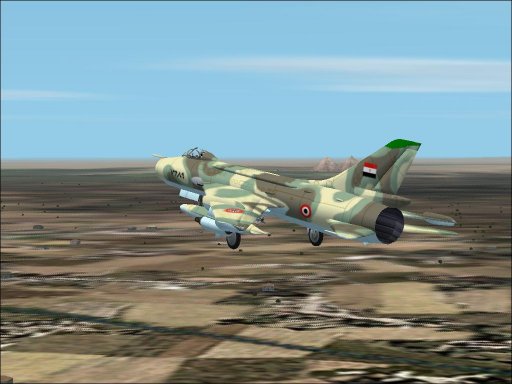

Republic of Egypt Air Force

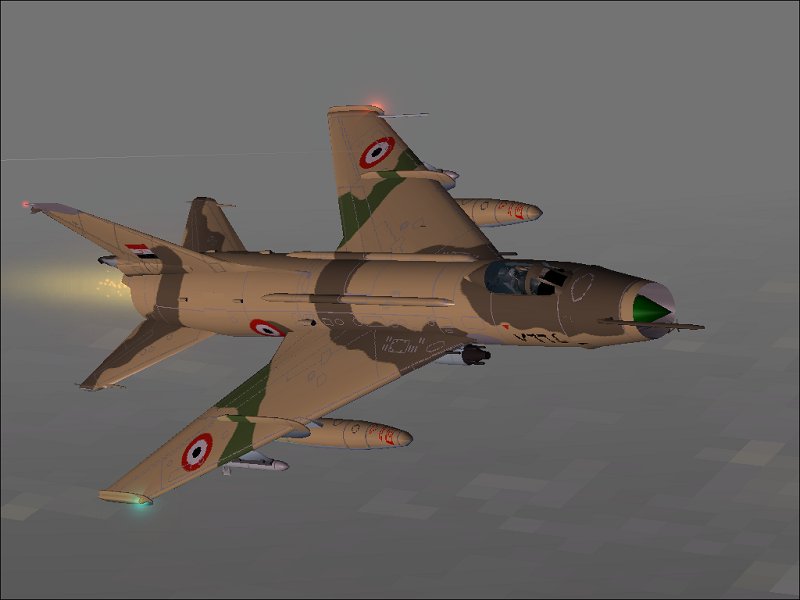

Black 7689, Katamia AB, Egypt 1982

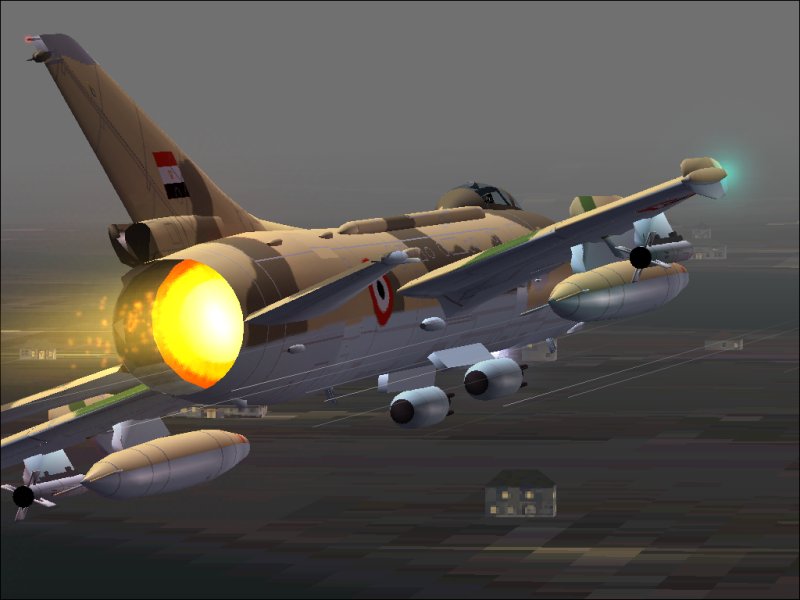

Black 7664, Egypt 1973

	front view

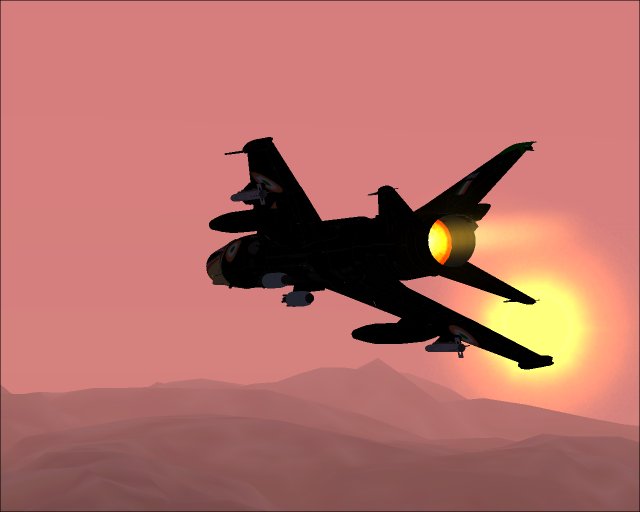

India Air force

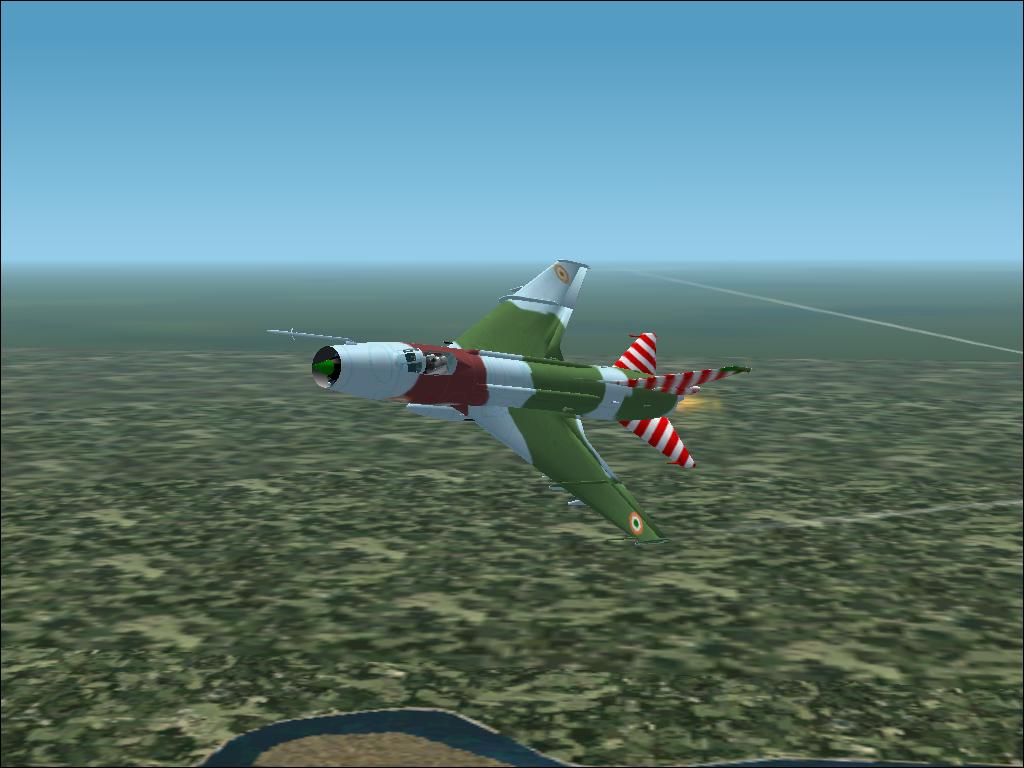

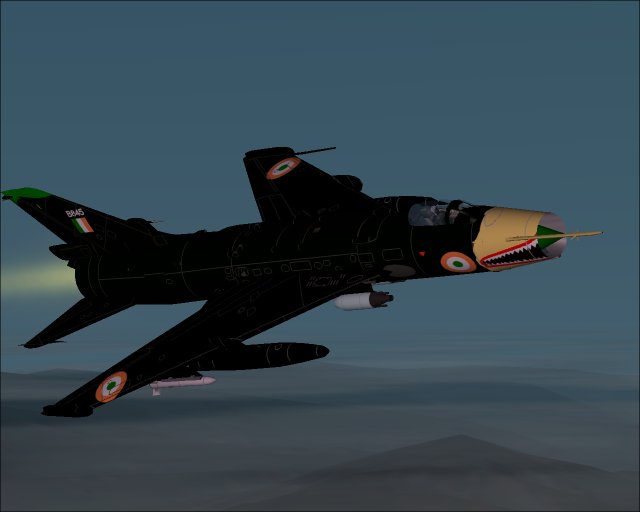

Black B845 - No .32 Squadron, "the Thunderbirds", 1982

Download Su-7 BKL 'Fitter-A, India Air Force, (ver 1.0) - from Simviation.com (994k).

No .32 Squadron, Shorkot AB, 1981

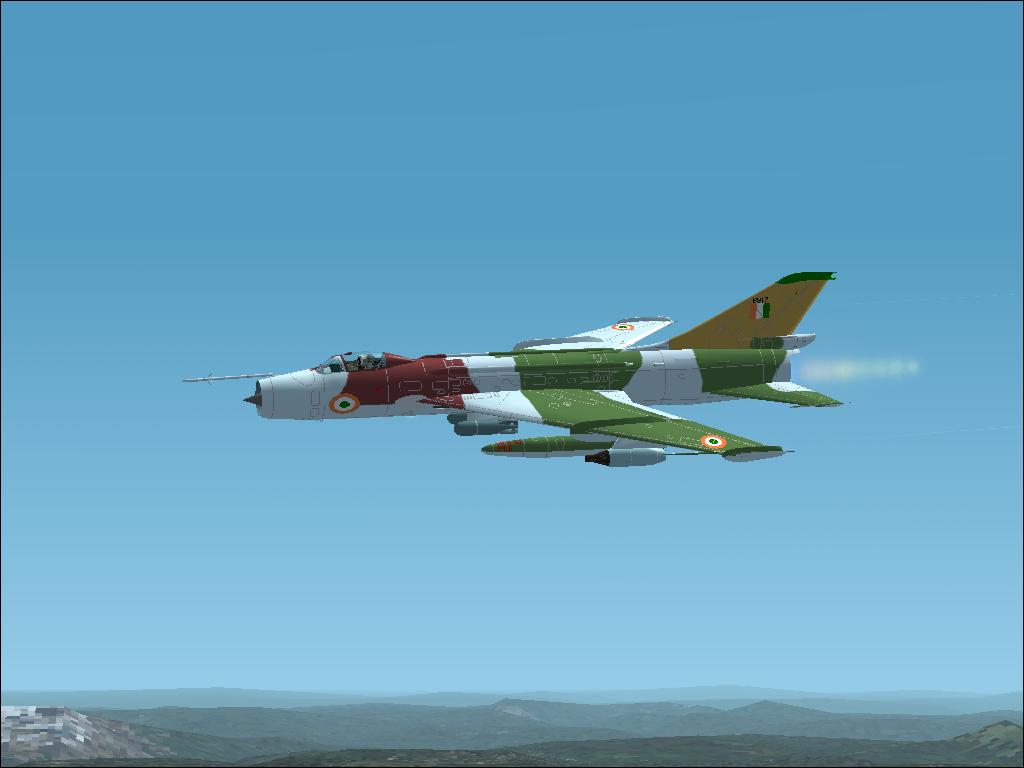

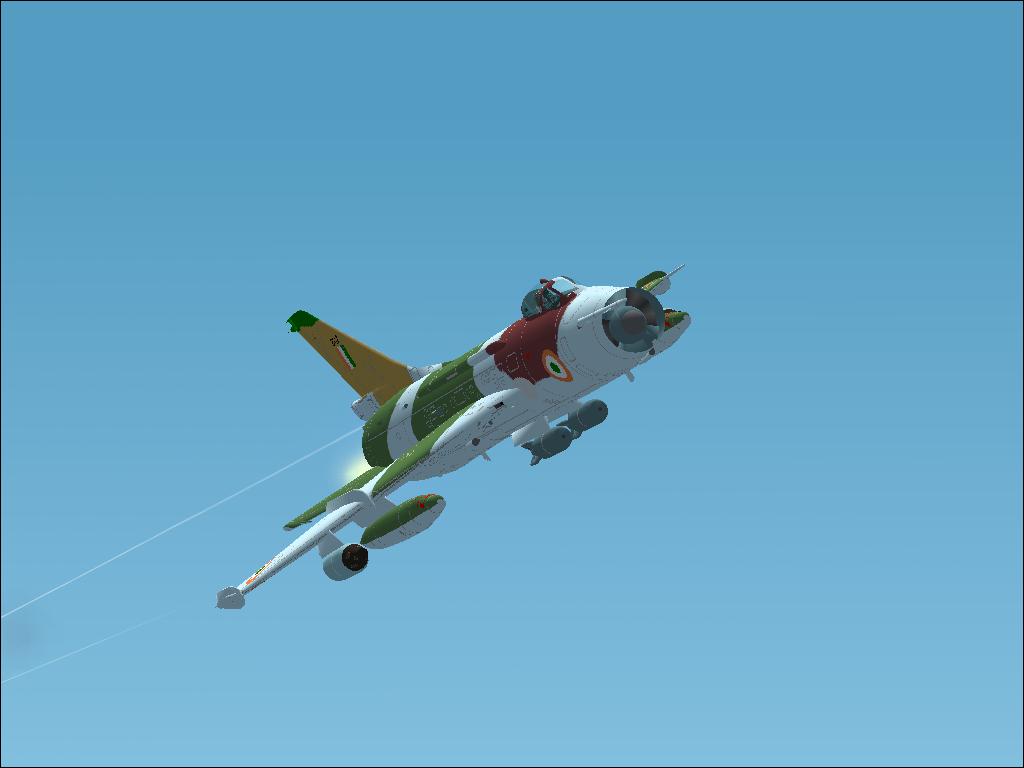

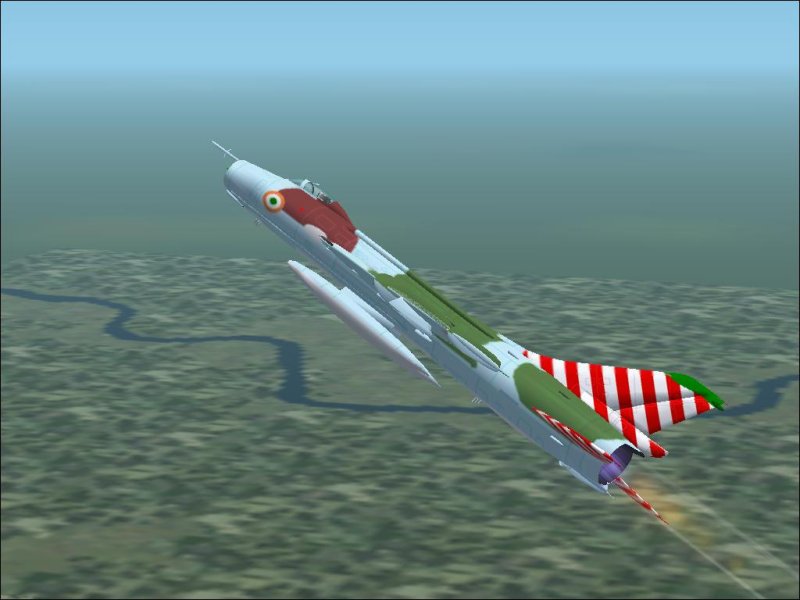

Black B817 - No .222 Squadron, 'the Tigersharks' Risalwala AB, 1981




Soviet Air Force

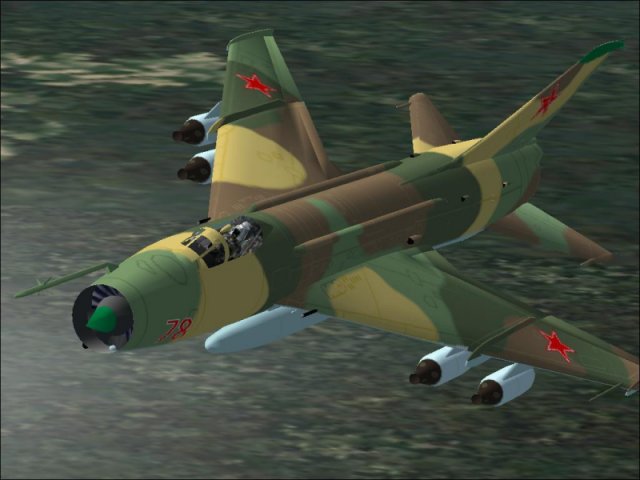

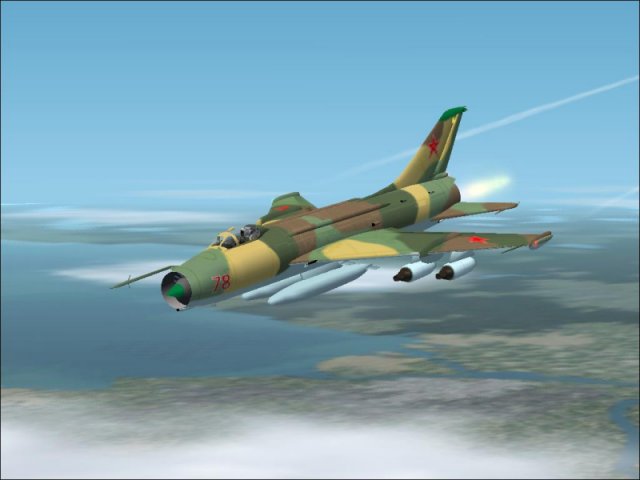

Red 78

Download Su-7 BM 'Fitter-A, 'RED 78' -Soviet AF, (ver 1.0) - from Simviation.com (994k)

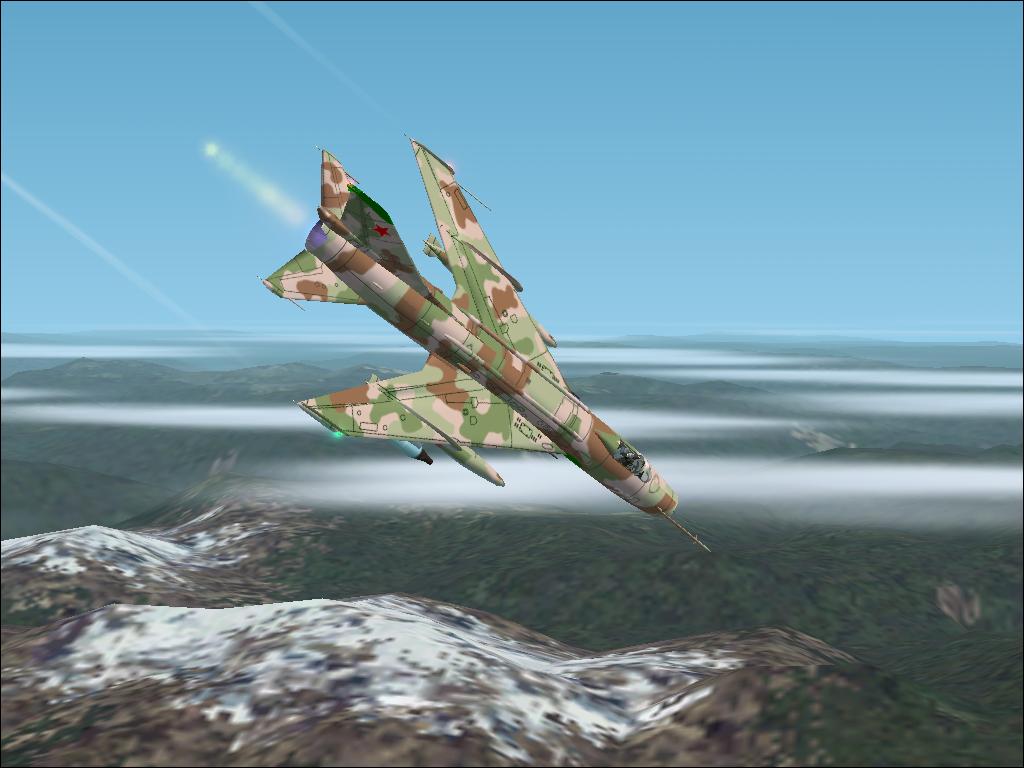

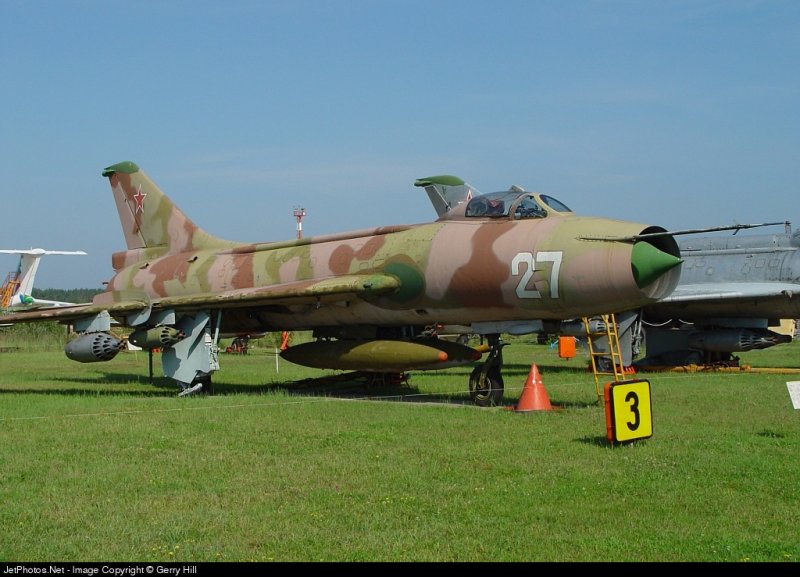

White 27

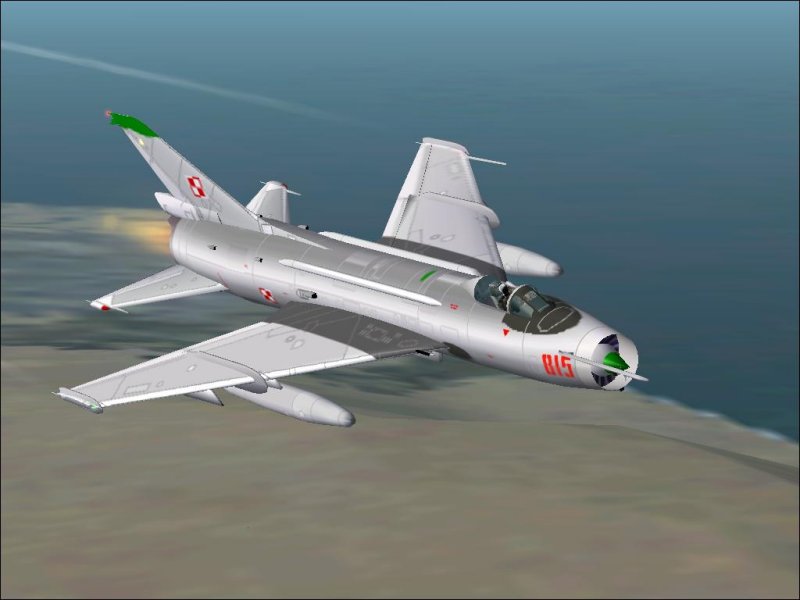

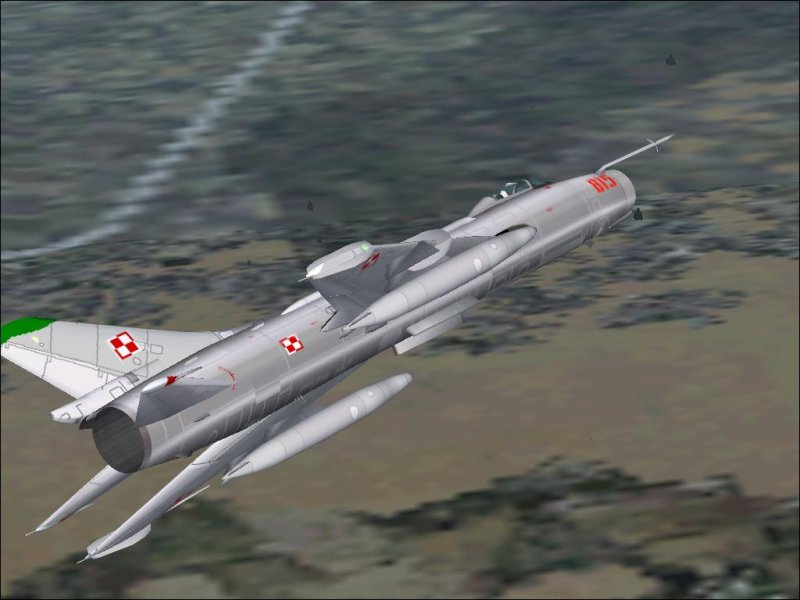

Polish Air Force
Red 318

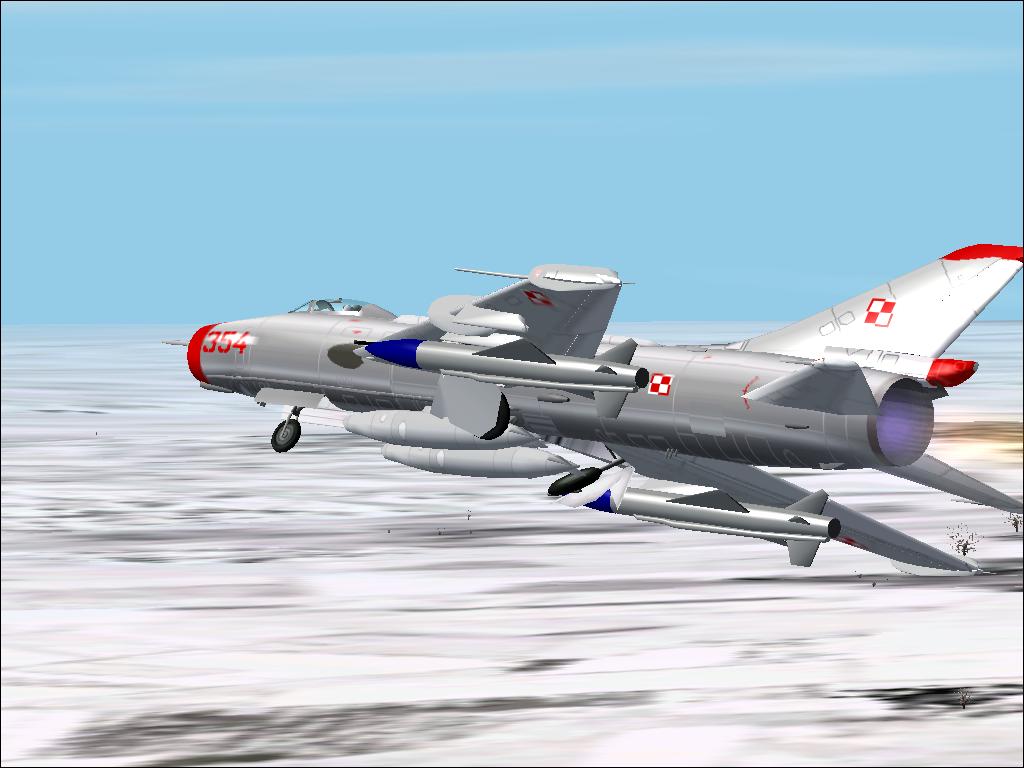

Red 354

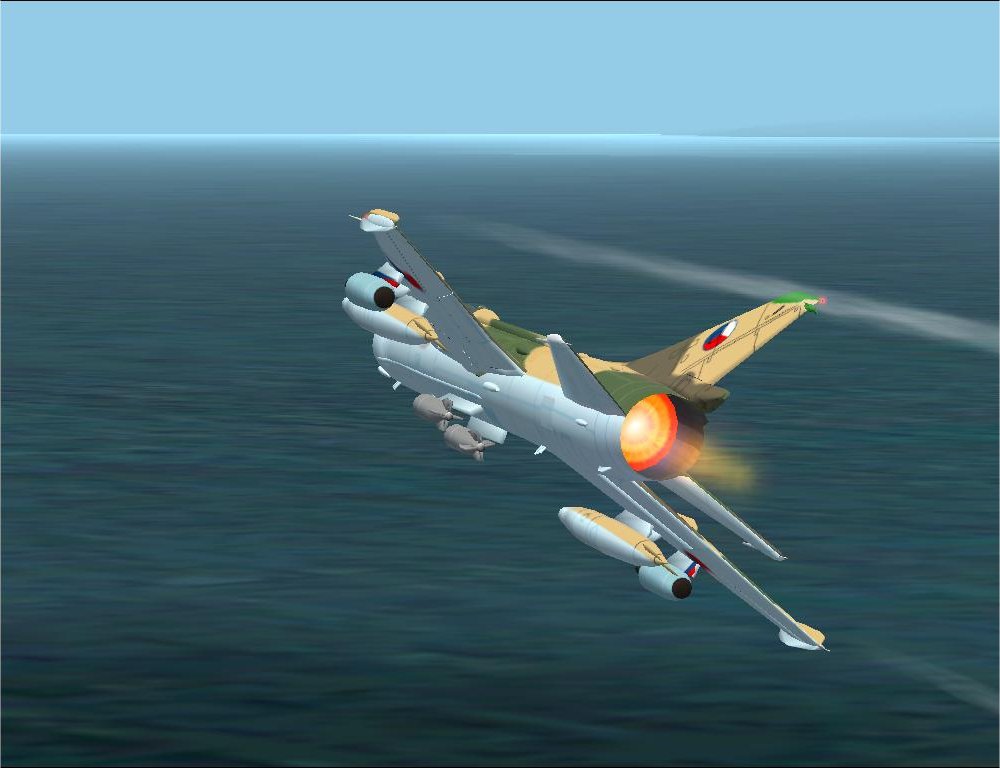

Czechosovakia Air Force

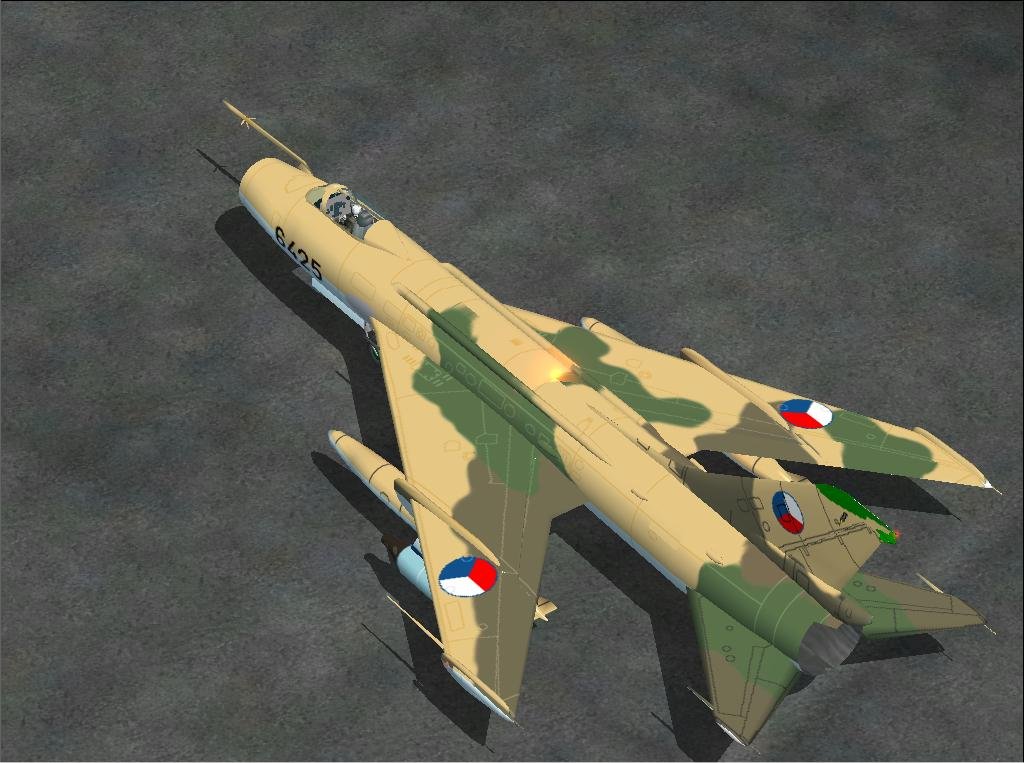

Black 6325

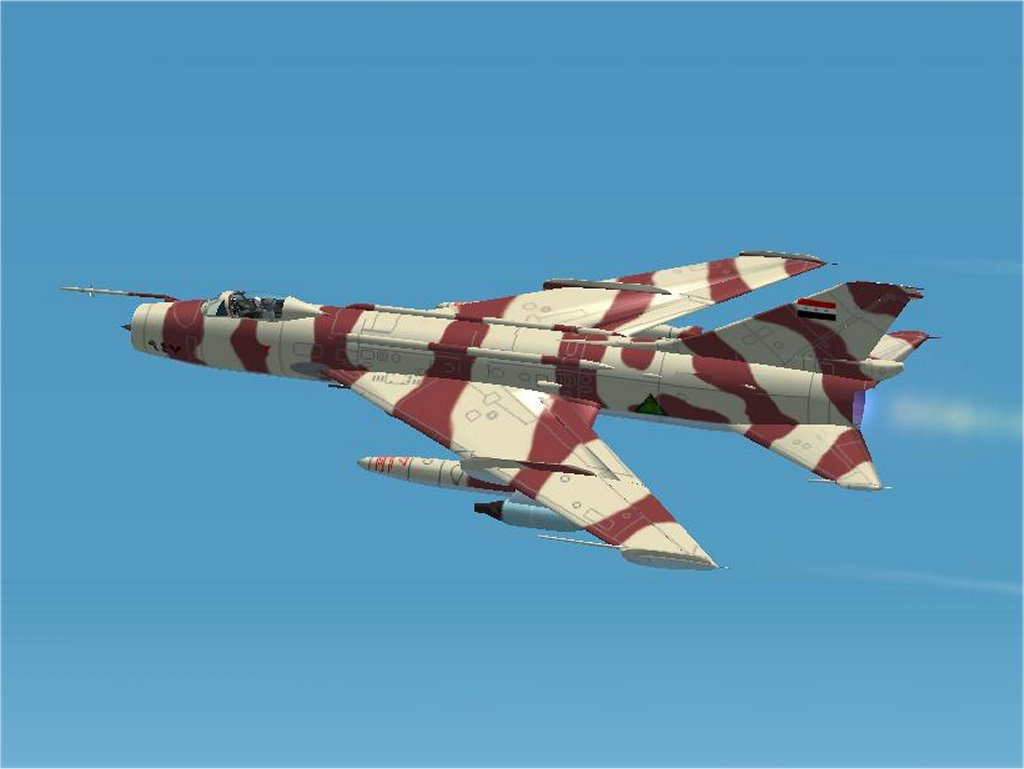

Iraqi Air Force
Black 947





The Sukhoi Su-7 is a single seat ground attack aircraft that was for a long period the standard tactical fighter-bomber with the Soviet Air Force (VVS). The development of Su-7 began in the early 1950's. First prototype, called S-1 "Strela", made its first flight in 1955. The Su-7 was unveiled to the West at the 1956 Soviet Aviation Day display at Tushino Airport outside Moscow. The prototype turned out to be very promising and Su-7 went in production several years later, in several versions including the Su-7B, Su-7BM, Su-7BKM and the Su-7BKL. The aircraft was exported to Czechoslovakia, Poland, Romania, China, and other countries. Construction: ------------------ The swept two-spar wing is swept 60 deg. at leading edge, has Fowler flaps and boosted ailerons. All controls are hydraulic. Each wing carries two prominent fences. The semi-monocoque fuselage is mainly of cylindrical shape, bulged coke bottle fashion at rear end, according to area ruling principles. The air intake has an in-flight adjustable centre body with di-electric cone for radar rangefinder. The pressurised cockpit is equipped with the KS-4 ejection seat. The rear fuselage carries four petal-type airbrakes, controlled hydraulically. The vertical empendage has a 60 deg. sweep, the slab stabiliser having counterweight spikes at its tip. The hydraulically activated undercarriage has a forward-retracting nose wheel, the main wheels, retracting towards the fuselage centreline. The wheels are carried on trailing arms, the skids on arms with dampers. The powerplant consists of the axial-flow Lyulka AL-7F-1 (TRD-31) turbo-jet of 66.48 kN dry thrust and 94.08 kN with reheat. For shortening the take-off two JATO bottles SPRD 110- rated at 29.4 kN thrust are used. Armament --------------- The SU-7BKL has powerful fixed armament - two 30 mm cannon NR-30 (70 rounds/gun). Two to six rocket pods (of 16 unguided 57 mm 55 rockets to each pod), unguided air to surface rockets, 2 x 1.000 kg of bombs , or guided air-to-ground missiles can be carried on the two fuselage and four underwing hard points. SU-7's can also, but as a ground strike aircraft, normally do not, carry air-to-air missiles. The SU-7BKL can also fulfil the photo reconnaissance role. Specifications Country of Origin CIS (formerly USSR) Similar Aircraft:- North American F-100 Super Sabre Republic F-105 Thunderchief Blackburn Bucaneer Crew: One Role: ground-attack Length: 57 ft (17.38 m) Span: 29 ft, 3 in (9 m) Weight: 13,387kg (loaded) Maximum Speed: 1.6 Mach Maximum Ceiling: Unknown Service Ceiling: 18 km Maximum Range: 1,449 km Cruise range: 645nm Combat Range: 250-350 km (with drop tanks) In-Flight Refueling: No Internal Fuel: 2350 Kg Payload: 1000kg Drop Tanks: 2x 600 L drop tank with 479kg for 69 nm range. Ferry tank with 719kg for 99nm range Sensors: High Fix (SRD-5M) radar. Armament: two Cannon: NR-30 30mm, FAB-500, UV-16-57 rocket bods, FAB-250, AA-2,FAB-750, FAB-500 User Countries: Afghanistan Algeria Bangladesh Czech Republic North Korea South Yemen India Egypt Poland Iraq
