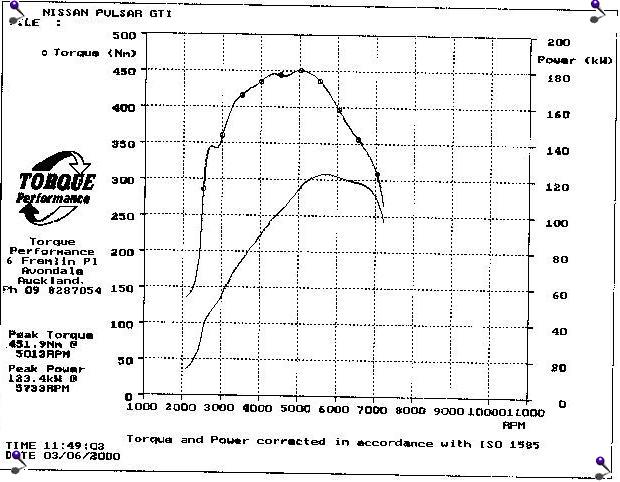

Sheet 1
This was done shortly after the conversion, it still had the 2 1/4" exhaust and standard T25 turbo.

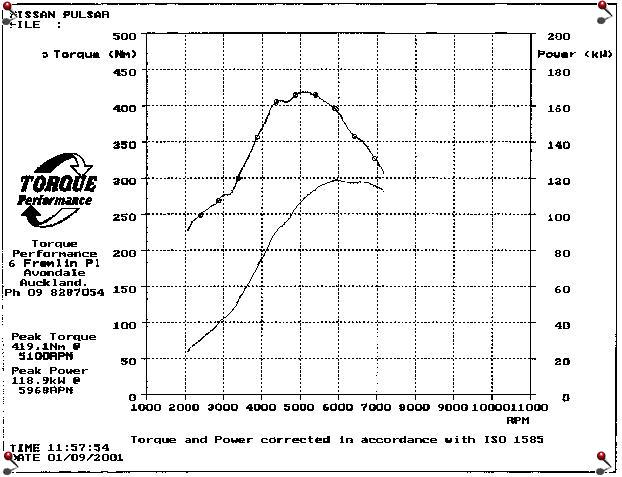

Sheet 2
A little disappointing this run, as I had put on the straight through 3" exhaust and larger T28 turbo. As I have no boost gauge we found the boost was running a low 6lbs!...

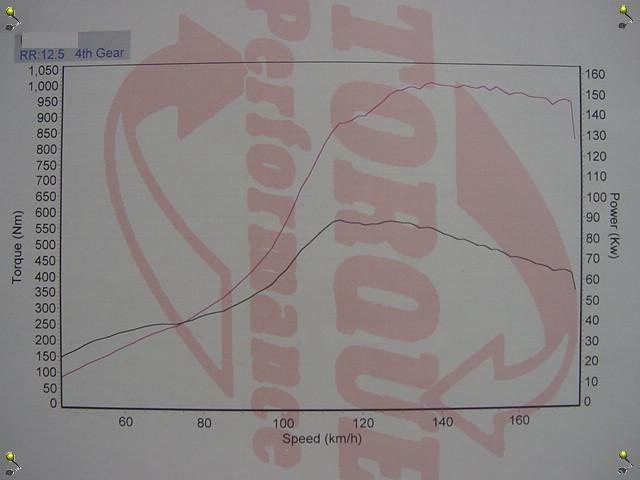

Sheet 3
Now this was awesome! it peaked at 154kW, now my power line is greater than my torque line. Since the last run I had installed a HKS boost controller, now the boost was switch able between 10-14lbs, and as you can see raising the boost 8lbs made a hell of a difference.

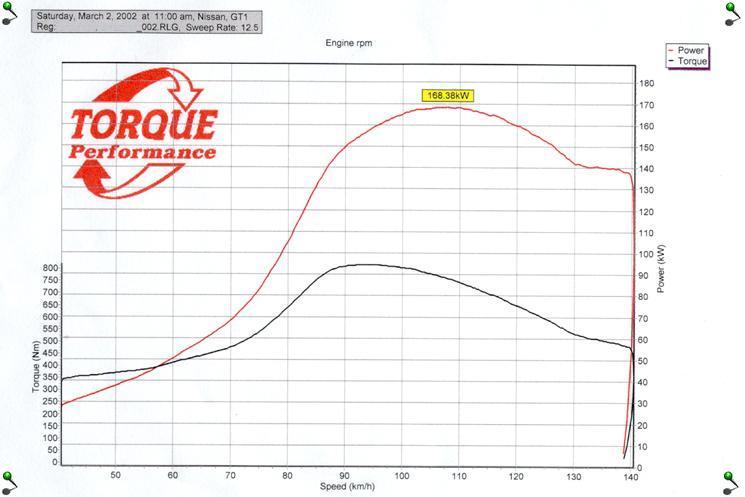

Sheet 4
This time the only mods from the previous run were the 11mm leads and a modified Falcon XR6 Air Flow Meter for a 14kW gain.
