| BEFORE RECAPPING | |||||||||||||
|
|||||||||||||

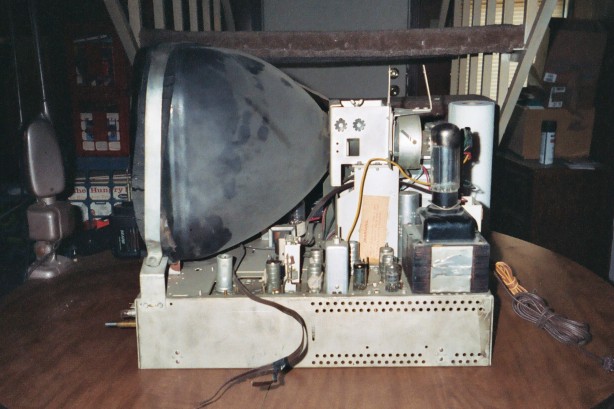

| SIDE VIEW. YOU DO NOT WANT TO TURN THIS CHASSIS ON THE SIDE OF THE POWER TRANSFORMER. IT WAS NOT UNCOMMON TO PUT THE RECTIFIER TUBE ON THE TRANSFORMER. | |||||||||||||
|
|||||||||||||

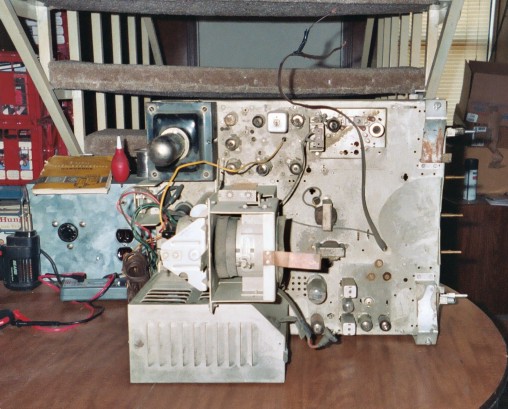

| TOP VIEW WITH CRT REMOVED. THERE WERE DIFFERENT MOUNTS USED FOR THE METAL ROUND TUBE AND THE GLASS RECTANGULAR. YOU CAN SEE THE INDENT ON THE CHASSIS WHERE THE ROUND TUBE WOULD HAVE SAT. | |||||||||||||
