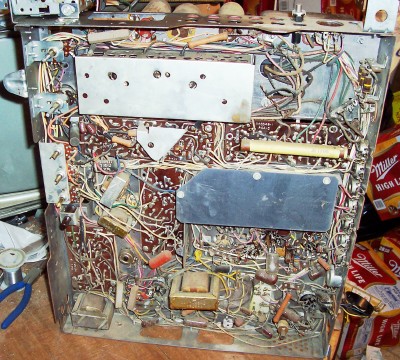

| HERE IS THE CHASSIS BEFORE ANY RESTORATION. I WILL USE WHAT LITTLE FREE SPACE I HAVE TO HIDE NEW ELECTROLYTICS. I WILL ALSO ADD FUSES TO THE B+ AND 110 LINE. SOME OF THE CONTROLS WERE A MOTHER TO CLEAN. RCA DIDN'T INTEND THIS CHASSIS TO BE SERVICABLE. I HAD A HELL OF A TIME GETTING THE WAND FROM THE CAN OF CLEANER INTO THE CONTROLS. MOST OF THE CAPS ARE MYLAR. THIS WILL TAKE VERY LITTLE TO MAKE IT LOOK GREAT. | ||||||||||
|
||||||||||

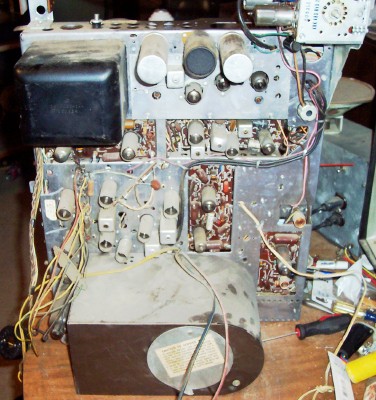

| THE TOP OF THE CHASSIS. IT SITS VERTICALLY IN THE CABINET. MOST LIKELY, I WILL RELOCATE THE VOLTAGE DOUBLER CAPS RIGHT WHERE THE RECTIFIERS ARE. THIS SET HAS A LOT OF LYTICS IN IT. I WANT TO AVOID CUTTING THE CANS IS POSSIBLE. I WILL IF I HAVE TO. I DID CONFIRM THAT THE CRT IN MINE IS AN ORIGINAL RCA VICTOR 21CYP22 (FIRST ALL GLASS 21" TRICOLOR CRT). | ||||||||||
