RCA VICTOR 6-T-64 CHASSIS |
|
|
|
 |
|
|
|

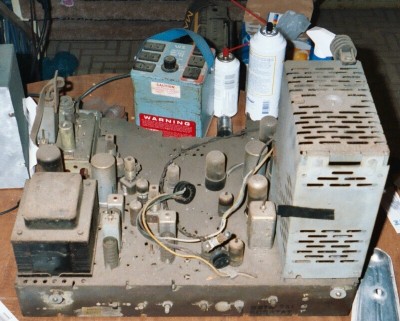

THIS IS THE CHASSIS. IT IS FILTHY. I WILL HAVE TO GIVE THIS ONE A BATH, SOMETHING I PREFER NOT TO DO. PICTURES OF THE UNDERSIDE WILL COME SOON. I DID NOT SOFT START THIS YET, NOR HAVE I CHECKED THE TUBES. I THINK THIS WILL CLEAN UP NICELY. I DID FIND A PAPER CAP FLOATING WITH ONE SIDE DISCONNECTED. I WILL NEED TO GET A PRINT BEFORE I CAN PROCEED. I AM PLANNING TO MAKE THIS MY WINTER PROJECT. |
|
|
|
 |
|
|
|
THIS IS THE 16GP4 METAL CONE CRT. THIS WAS A COMMON TYPE IN 16 INCH SETS OF THE ERA. YOU DO NOT WANT TO TOUCH THIS WHEN THE SET IS ON. IT WILL BE CHARGED WITH HIGH VOLTAGE AND BLAST YOU. THIS SHOWED WEAK EMISSION AFTER I FIRST LET IT COOK ON THE CRT CHECKER. AFTER I USED THE "CLEAN" FUNCTION ON MY CRT TESTER , IT CHECKED GOOD. THERE WAS A BRIGHTNER ON IT WHEN I OPENED THE SET. I AVOID BRIGHTNERS AT ALL COSTS. AFTER I RECAP THE CHASSIS, I'LL SEE HOW IT LOOKS. IF IT LOOKS BAD, I'LL FIND A REPLACEMENT. |
|
|
|
