I CALL THIS COMPLETE. I THINK THIS WILL BE A GOOD PERFORMER.
MAIN PAGE
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||

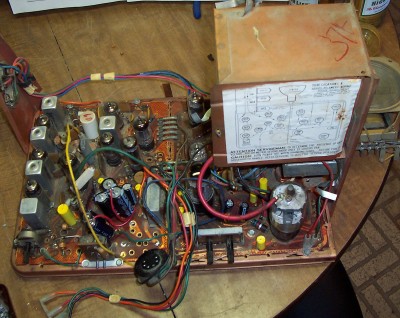

| HERE IS THE CHASSIS AFTER RECAPPING AND PARTIAL REASSEMBLY. I ELIMINATED THE ELECTROLYTIC CANS COMPLETELY. THE SELENIUM DIODES YOU SAW IN THE BEFORE SHOT ARE ALSO GONE, REPLACED WITH SILICON DIODES. I WILL POLARIZE THE PLUG. THE SIDE OF THE LINE CORD THAT CONNECTS TO THE CHASSIS IS DIRECT. I ALSO CHECKED THE CABINET WITH THE PLUG DIRECT, AS OPPOSED TO THE ISOLATION TRANSFORMER. THERE WAS NO VOLTAGE ON THE CABINET. THERE IS A SLIGHT HUM IN THE SOUND. I MAY HAVE A TUBE WITH HEATER-CATHODE LEAKAGE. I WILL CHECK ALL AUDIO RELATED TUBES. THERE WAS AN ELECTROLYTIC CAN WITH A STRAP TIED TO GROUND. I MAY NEED TO REPLICATE THAT. AS YOU CAN SEE IN THE NEXT SHOTS, THE PICTURE IS NICE AND BRIGHT. AS USUAL, THEY ARE DELIGHTFUL SHOTS. | ||||||||||||||||||
|
||||||||||||||||||

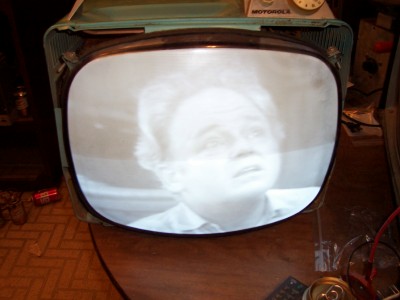

| BEFORE REINSTALLING THE FRONT OF THE CABINET. | ||||||||||||||||||
|
||||||||||||||||||

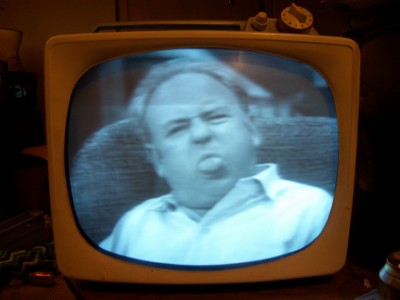

| AFTER REINSTALLING THE SAFETY GLASS. FOR SOME REASON, THIS PIC TURNED OUT A LITTLE RED. | ||||||||||||||||||
|
||||||||||||||||||

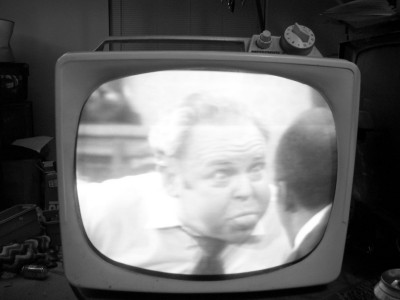

| I DID THIS ONE IN BLACK AND WHITE TO ELIMINATE THE REDNESS. I DID NOT PUT VISENE IN THE CAMERA. I CALL THIS COMPLETE. I THINK THIS WILL BE A GOOD PERFORMER. |
||||||||||||||||||
