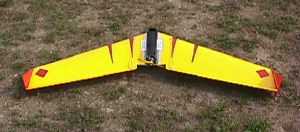

Zagi XE 480L

Wingspan 480
Airfoil Zagi 999
8/10/02 Foam Wing Changed to Zagi XE All EPP
Speed 480L
Speed Demon 202 ESC (SD202B-S) (changed 13 ga. wiring to 16 ga., cut brake wire)
8 800 AR cells & 8 K1700AE cells
HiTec 555 Rx
2 HiTec H-81 servos

Modifications
Put RX on right wing just aft of servo
CG 8" 8/10/02 Now 7 5/8"
5/18/02 Upgraded to Speed 480L
Kavan 6X4 soft Prop

6/05/02 Weight 30.6 oz.
8/10/02 Weight 30.8 oz.

7/10/01 Installed Trike Gear & 1 servo
Removed 7/18/2001

CS Throws Elevon 3/8 U & D measured 1" from Tips

Test Run SV 11.3 Amps 16.6 Watts 154 5/18/02
Ready to fly 5/18/02
Ready to Fly 8/10/02

6/16/05 Windsor 5.5X4 Prop
6/05/02 Made new tray out of Coroplast
Installed single Main Wheel
Installed Coroplast Winglets & extended them lower to accept wire Skids
6/16/05 Changed to 3S2P Li-Po 4200mah
11/16/05 Installed Li-Saver
6/16/05 Weight 32 oz.

Test Run 3S2P Li-Po SV 12.44 Amps 18.4 Watts 206
Ready to fly 6/16/05
