A mixture of old parts
The X-3
Equipment

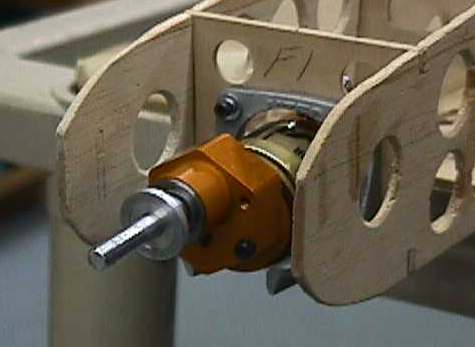

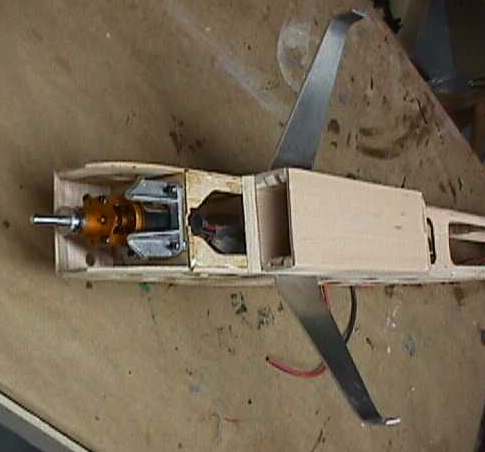

Astro 05 7T with AF 2.38:1 Gearbox ESC Speed Demon 200
PT-Electric Fuselage & tail Feathers

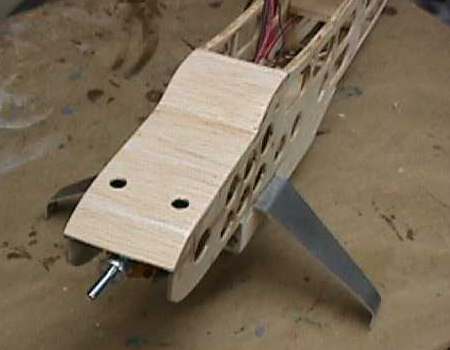

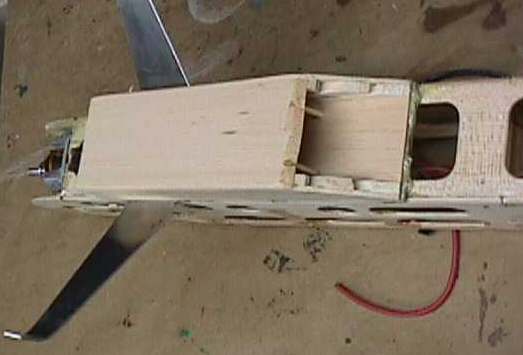

Battery Box added to bottom

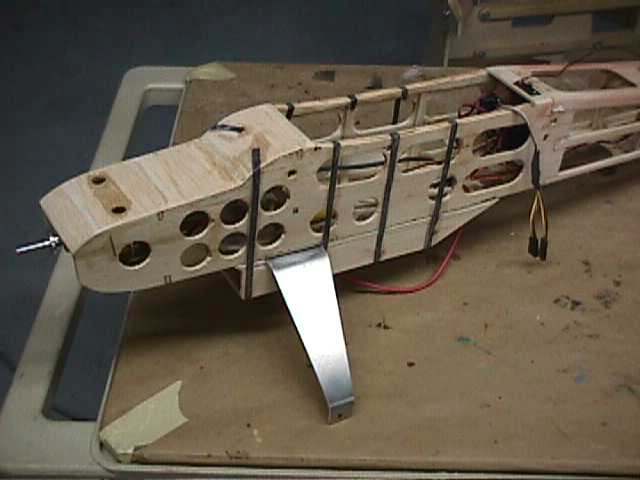

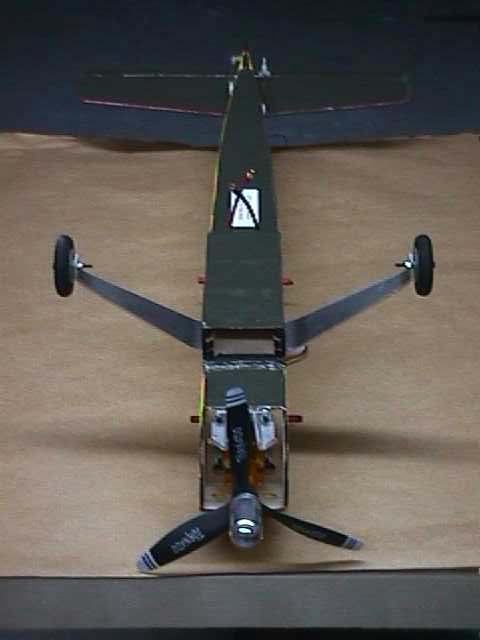

Aluminum L/G 2" mains, wood tail skid
1 Tower Servo TS-31 Elevator 1 Hitec HS-60 Servo Rudder
2 HiTec HS 81 servo's ailerons Micro-Mon. 350 mah Rec. Battery, Hitec
535 RX.
8 cell Gordy 2000 mah Power Battery, Tornado 9X6 3 blade prop

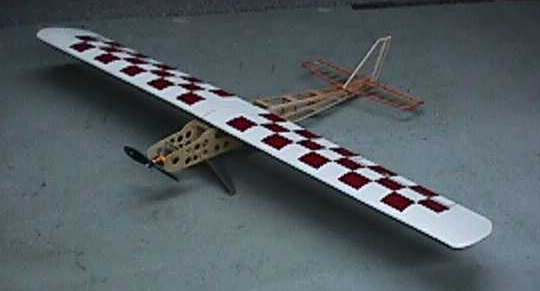

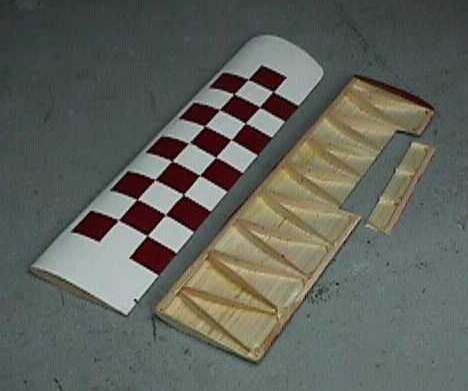

68" Aeronca wing shortened & converted to Ailerons No Dihedral
Specifications
66" Wing 528 sq. in.
Covered with 3 colors of Mono
CS Throws R - 1/4 E - 1/4½ A - 3/8 U 1/4 D
Incidence Wing +1/2 Motor 4 1/2 D 1 1/4 R
Run Up SV 11.0 A 24.5 W 217
6/07/03 Run Up SV 11.0 A 17.6 W 160
In Service RTF 12/31/02
***********************************
12/11/04
Converted to TP3S3P Li-Po 6000 mah battery
UBec & Li-Saver
***********************************
12/17/04 Run Up SV -12.1 A - 24.6 W 279 - with TP 3S3P 6000 mah
12/ 17 /04 Weight RTF - 56.2
