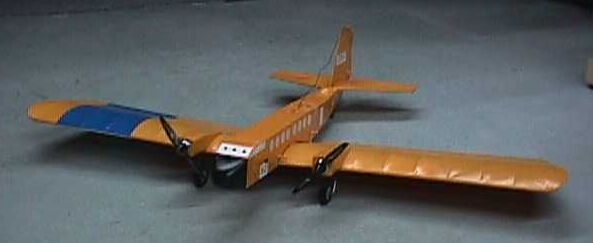

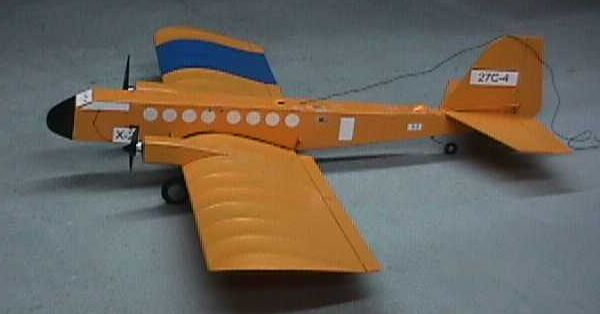

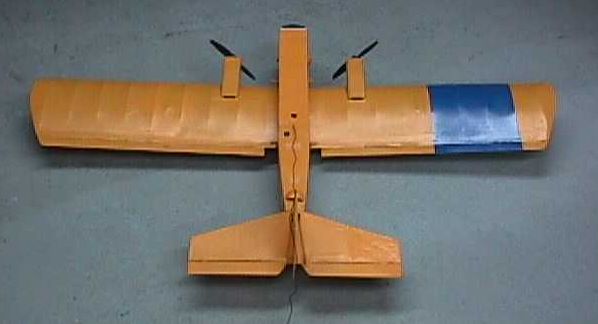

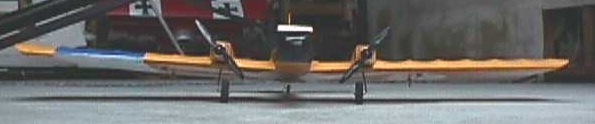

X-2
Home Brew

NOTE; The X-2 started out as a Twin Puddlemaster, but flew poorly & crashed)

Puddle Master Wing & Tail Feathers
Fuselage Scratch Built
Low Wing Tail dragger

Equipment
6/8/02 Motors changed to Multiplex Turbo 450's
ESC - Jeti JES-50
Props Aeronaut 6.5X4
Prop Adaptors Graupner

2 Permax 400 Direct Drive Motors
ESC Speed Demon 200
2 HiTec HS80 Servo's Rudder & Elevator
2 HiTec HS60 Aileron Servo's
2 Multiplex Gunther Props 4.9 X4.4
HiTec RCD 535 Rx

Specifications
Wing Span 48"
Square Inches 440
8-cell Gordy 2000's Power Battery

Modifications
Motor's mounted using Don Granlund Sr. Article
Ailerons added to T/E full-length strip
Completely modified Fuselage
Battery pack "Ejectable" through front hatch
Hollow wing tips
Covered with Polyester dress liner & dope
Closed structures doped
Motors set at -1 degree
Wing +1 degree
Painted with Krylon Paint

CS Throws R - 3/4 E - ½ A - 3/8 U 1/4 D
Incidence Wing - LI +1/2 LO -3/4 RI +1/2 RO -1- Motors - 0
CG -2.25"

6/8/02 Total Weight ready to fly 54 oz.

Run Up SV 11.4 A - 31.6 W - 280 2000's
Ready to fly 9-12-98
Ready to Fly 6/15/02

************************************************
12/11/04
Converted to TP 3S3P 6000 mah Li-Po
Li-Saver
*************************************************
11/23/03 Run Up 3S3P LiPo's SV 12.1 A - 30.7 W - 334 6000mah
12/11/04 Total Weight RTF 50.8 oz with 3S4P Li-Po's

Ready to Fly 12/11/04
