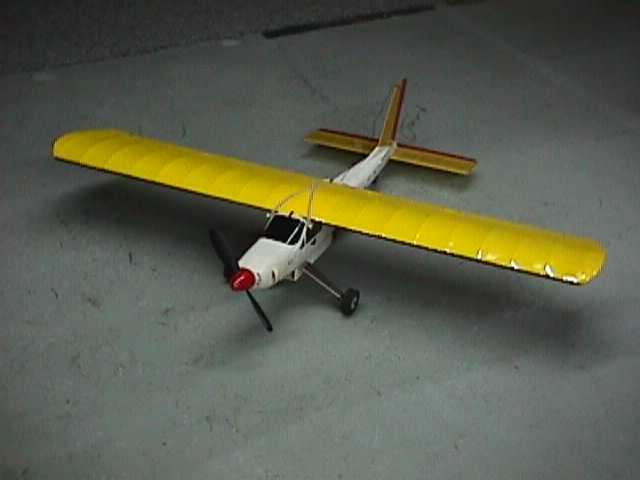

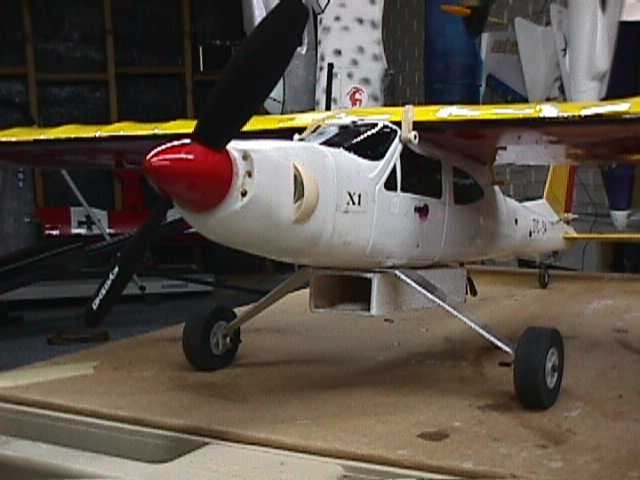

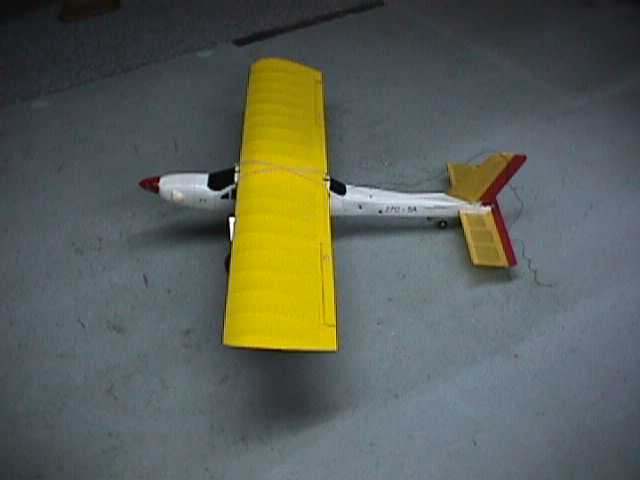

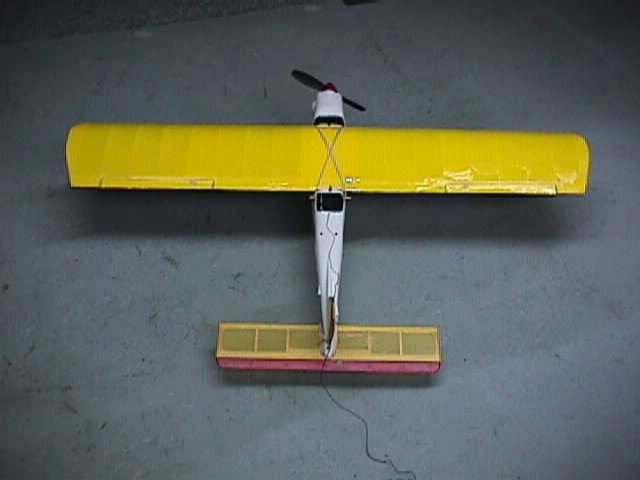

ARF Cessna Cardinal M36 1/9 Scale
Lic# N3157X
Renamed X1

Equipment
Astro 05, Astro 2.38 gear box
Prop Kyosho 9X8
ESC Jeti 350 with BEC
Hi-Tec RCD 5500 RX
4 Futaba S133 Servo's

Modifications
Modified Puddle Master wing with no Dihedral & Added Ailerons & 2 Aileron servo's,
Servo's in rear of Fuselage
Put Battery box under Fuselage
Added Aluminum L/G Bracket
Dave Brown Lite Flight 2" Wheels
Added tail Wheel

Total Weight ready to fly 55 oz.

Incidence
Wing Root +1 Tips -1
Motor 1 1/2 down to Wing, 1/2 right

Surface travel
Ailerons, 1/4 U 3/16 D Elevator 3/16, Rudder 3/8

Run Up
Sv 11.3, Amps 33.9, Watts 299
