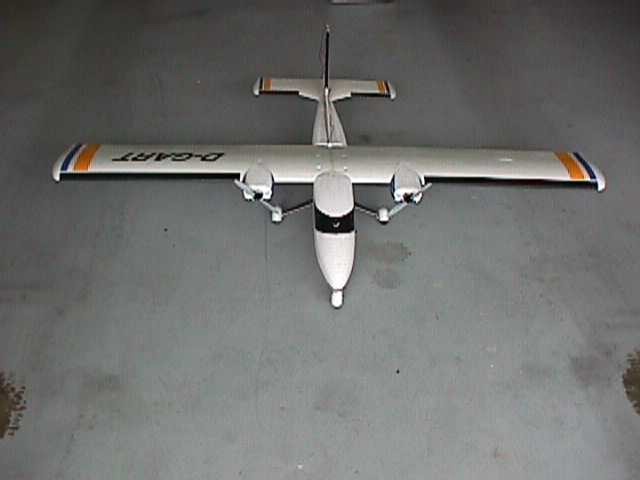

Partenavia Kavan NY

Equipment
Span 59" 8.25 Chord 486 Sq. In.
2 Graupner 480 Direct Drive #6304
ESC Jeti JES 045 with Li-Po BEC
HiTec Flash 5 Radio
RCD 555 receiver
2 HiTec HS-81 Servo's R & E
2 HiTec HS-80 Servo's Ailerons
APC 5.7X3 Props & Graupner # 1298.3 Spinners
Nose Wheel 1 3/4 " Steering
Mains 2 1/2 "
CG set to 2 1/4 "

Modifications

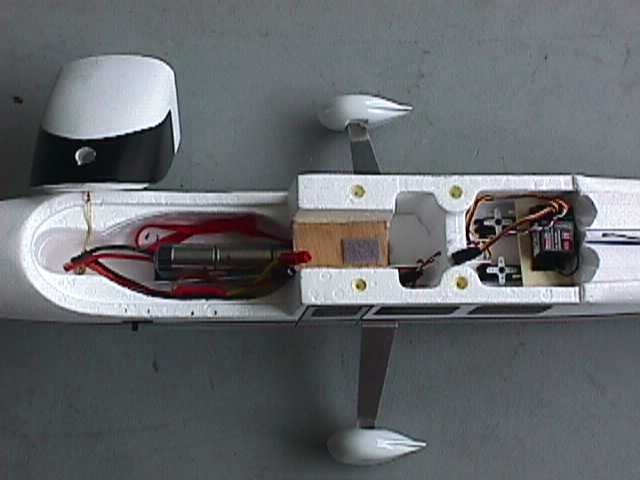

Moved RX to a platform over Rudder, Elevator Servo's
Routed Antenna up & to the top of Vertical Fin.
Made a 1/2 " Cooling hole in Windshield
Cut 2 exhaust cooling holes just behind wing TE.

Run Up SV - 12. Amps - 30.3 Watts - 314 TP 3S3P 6000mah Li-Po

Total Weight 3S3P LiPo's ready to Fly 52.2 oz.
