ModelAir Tech

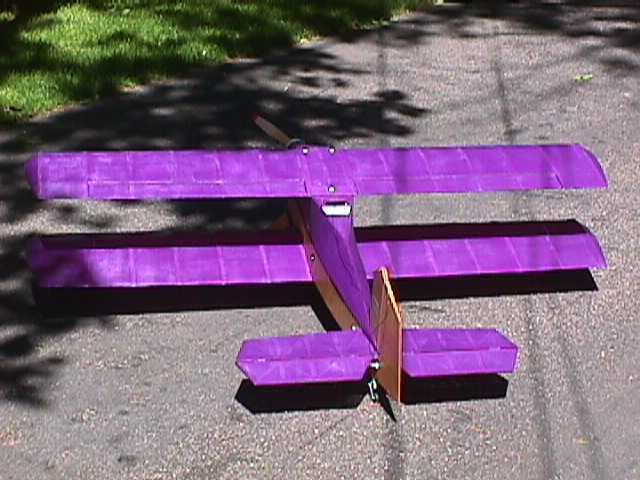

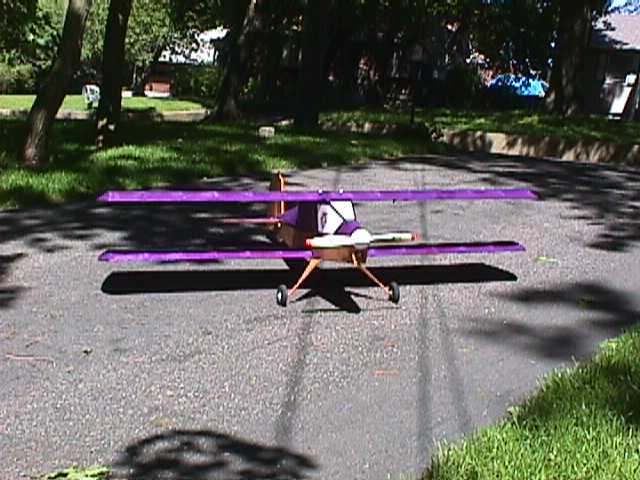

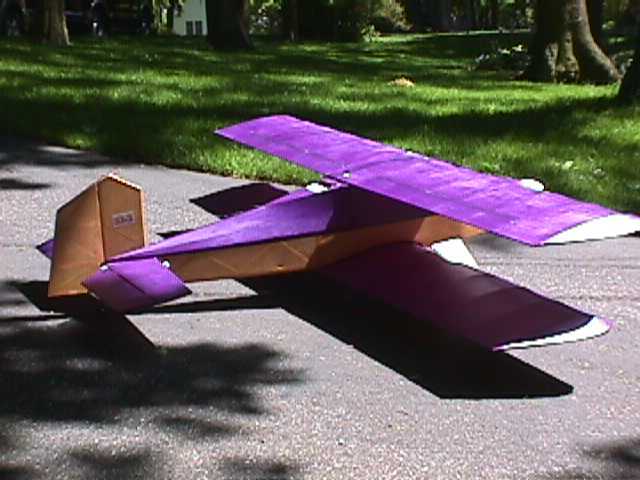

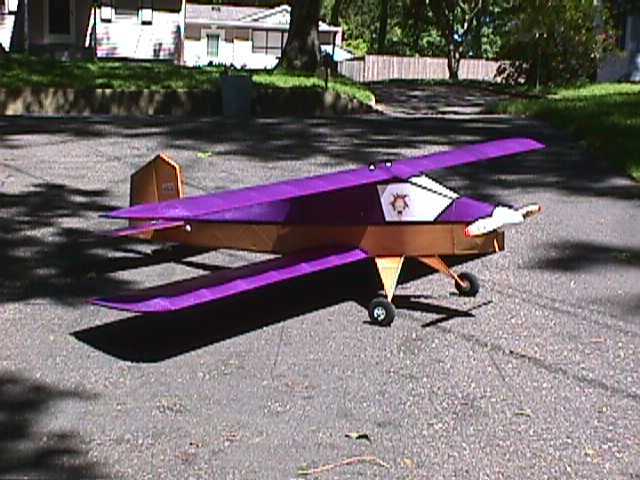

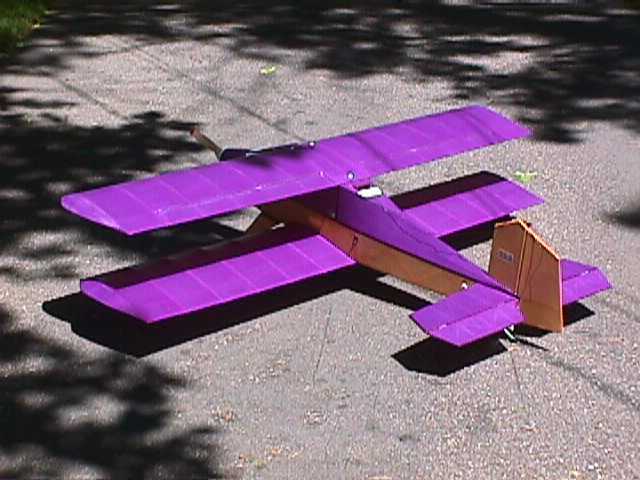

MegaWatt Bipe

Equipment
Dewalt 14.4 motor Mat H-1000 belt drive 3.63/1
ESC Jeti JES 450 8-30 cells
4 HiTec HS-85 Servo's RCD 535 receiver &
6/1/03 Ultimate Bec
21 Gordy 2000 SCRC's in 3 - 7 cell flat packs
6/17/04 switched to APC 16X10 14X10 prop Graupner 2 ½ " Spinner GPMQ4520
3 " Lite Flite Main Wheels WR30-5730 Sullivan Tail Wheel Brkt. #S859 w/ 1 " Tail Wheel #352

Modifications
None

Incidence in degrees
Horizontal Stab 0, Lower Wing 1 at root, 0 at tip, Upper Wing 1 at root 0 at tip
Motor ¾ down ½ right

CS Throws R - 1 E - 1/2 A - 1/2 A - 3/4

Run Up 6/1/03 SV - 29.1 Amps - 28.8 Watts - 688 computed time 4.1
Run Up 12/21/03 SV - 20.9 Amps - 21.9 Watts - 433 computed time 21.9
Total Weight ready to Fly 128.02 oz. With 21 Ni-Cads

07/26/04 changed gear ratio to 3.0/1
7/26/04 Switched back to 14X10 prop
7/26/04 Changed to TP 5S4P
7/26/04 Install Li-Saver

Run Up 07/26/04 SV - 20.2 Amps - 28.1 Watts - 521 computed time 17.0
Ru7/26/04 Total Weight ready to Fly 114.5 oz. With 5S4P Li-Po's
