Fly Baby
Trainer/Sport Flier

Original Build in the mid to late 80's, flew only 2 times, seemed tail heavy.
Crashed on 2'nd flight, wing OK

Wingspan 40"
Wing is built up balsa 275 sq. in" Covered with Plastic film

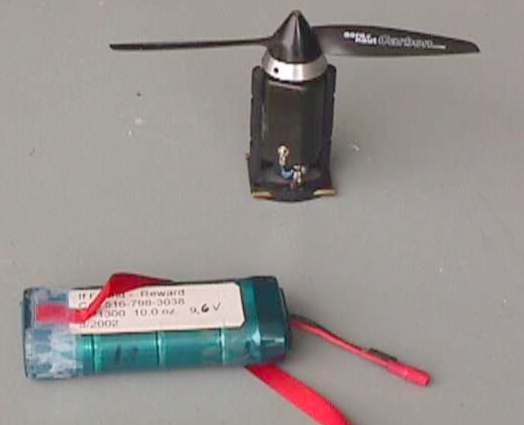

Speed 480 with Kavan 6X4 prop with GR1298/3 Spinner
ESC Jeti Jes 350 with BEC
8 CP1300 cells
HiTec 555 Rx
2 Hitec HS 81 servos in rear & 1 Futaba S133 for Ailerons
2 1/4" Main Wheels, Tail Skid

Modifications
Replaced 3/16 balsa frame with 1/8
Replaced 5/32 sheet for tail feathers with 1/8

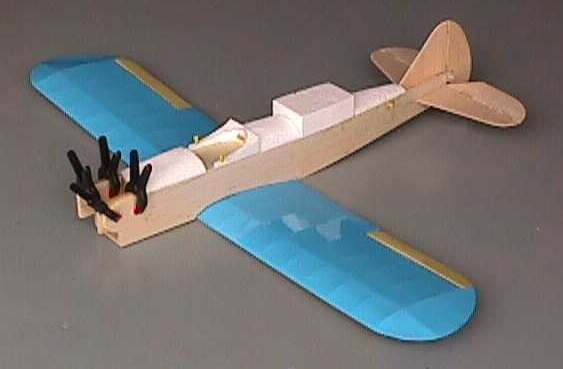

Turtle Deck & forward portion of fuse foam.
Eliminated 3/32-balsa sheet in rear for servo rod exits.

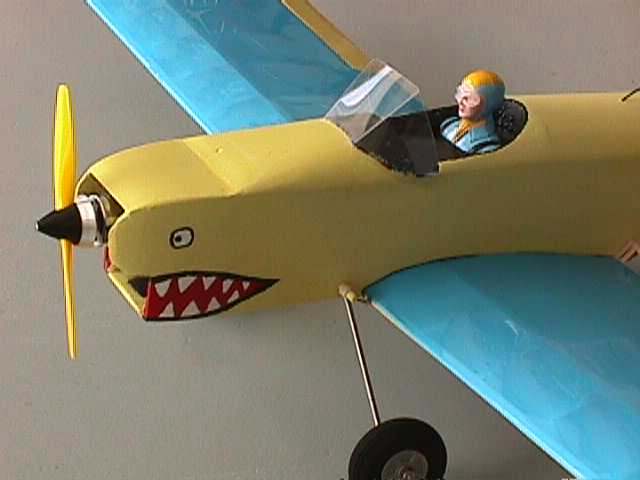

Extended nose to suit Sonic Tronic motor mount
Battery box built into nose for battery ejection
Fuselage is primed with Krylon Home Décor white
Rustoleum Painters Choice Latex thinned 50% on all bare balsa

CG 1 7/8" A little nose heavy.
Control Surface Travel R - 3/4 E - 1/2 Up & Down A - 3/8 Up & Down
Weight 32 oz.

Run Up SV - 10.8 Amps 17.0 Watts 154
