Equipment

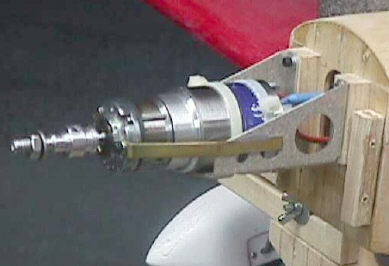

Aveox 1406/3Y with Planeta 3.70 Gearbox
Prop APC 12x8E Black Spinner
ESC Jeti JES 40-3P opto (brushless)
UBEC
Hi-Tec RCD 555 RX
1 Hi-Tec HS 81’s Servo's for Rudder in rear
1 Hitec HS 205BB Elevator Servo in rear
2 Hi-Tec HS 81’s for Ailerons
Wing Red upper & Black lower Krylon
Fuselage White with Red tail feathers Krylon

Modifications
Converted from Glow to Electric
Tail Wheel with my steering modification

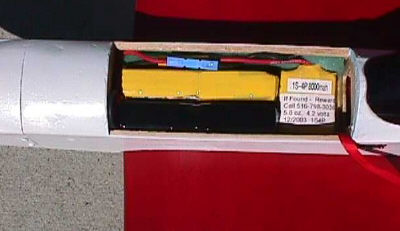

5S4P LI-PO

Span 60” Wing Area 625

Total Weight “Final” ready to fly 84.0 oz.

Wing Incidence at root +1 at Tips 0
Motor offset 0 down 0 left & right
CS Throws R 1 1/4 E 3/4 A 3/8 U &D
Run Up – SV-20.3 A-31.8 W-584
RTF 8/25/04
