Gulliow's BF-109
Enlarged 100%

Equipment

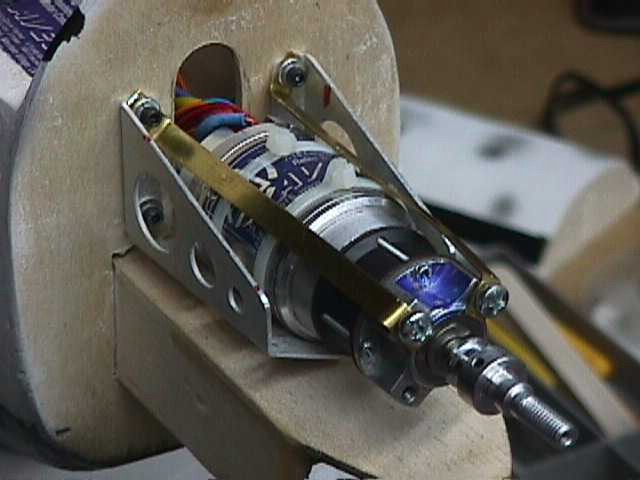

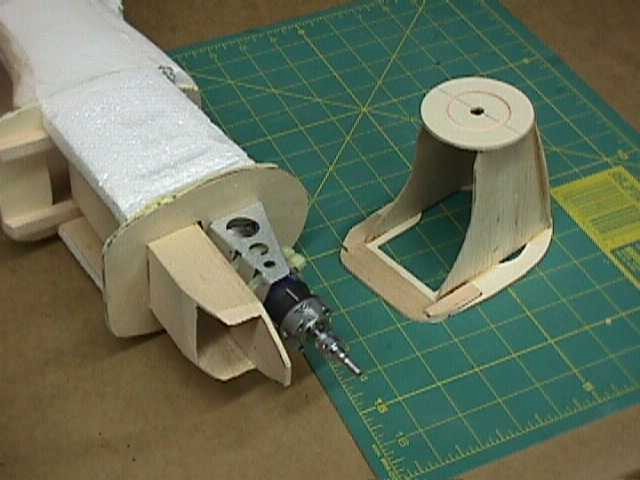

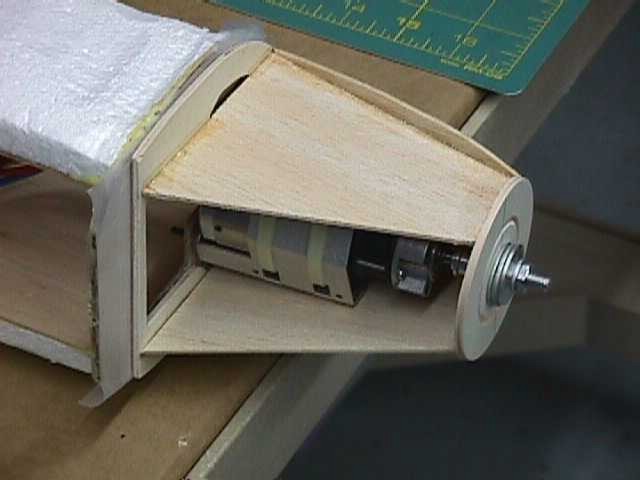

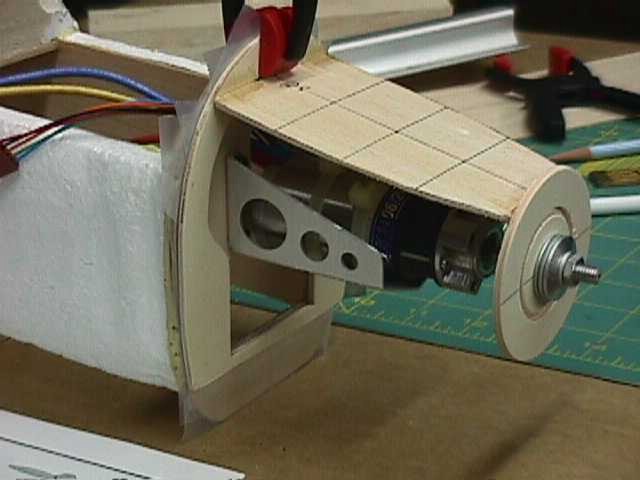

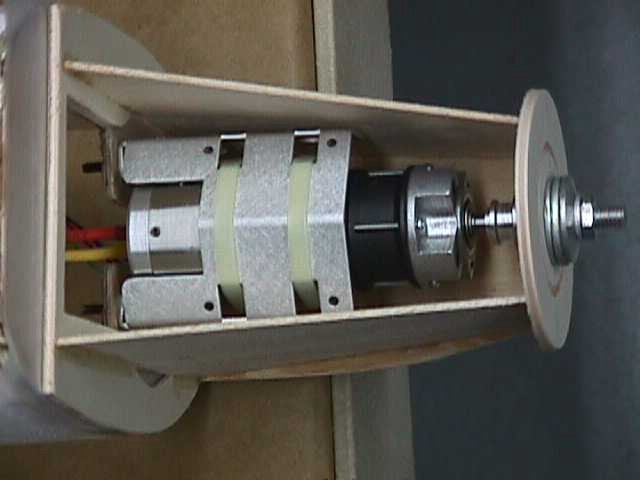

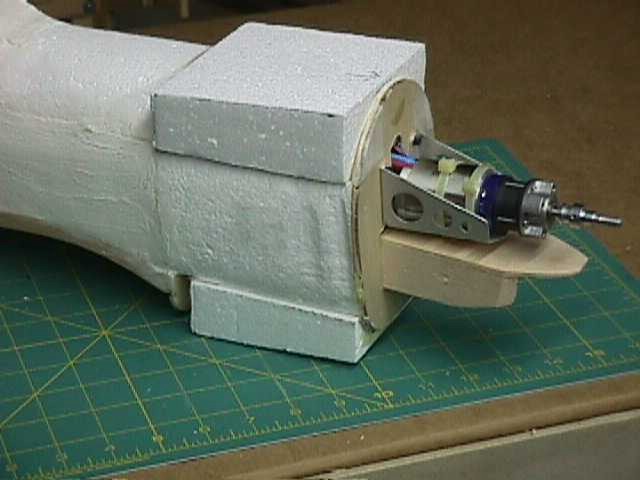

Aveox 1406/3Y with Planeta 3.70 Gearbox
Prop MA 12x10 electric Black Spinner
ESC Aveox L-160 Replaced with Jeti JES 40-3P opto (brushless) on 8/22/01
On Board RX Battery checker
Hi-Tec RCD 535 RX

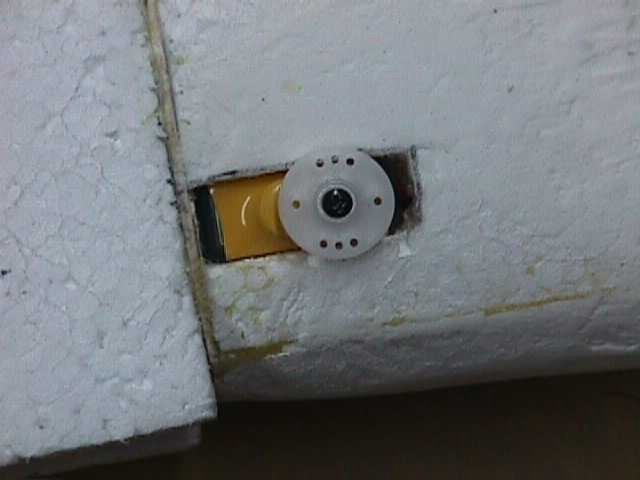

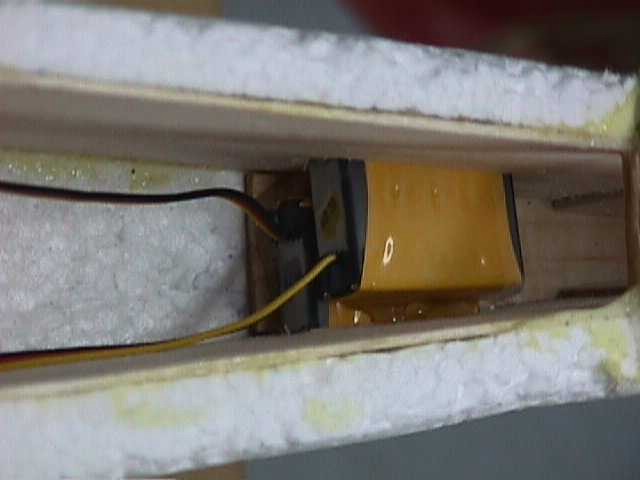

2 Hi-Tec HS 81's Servo's in rear

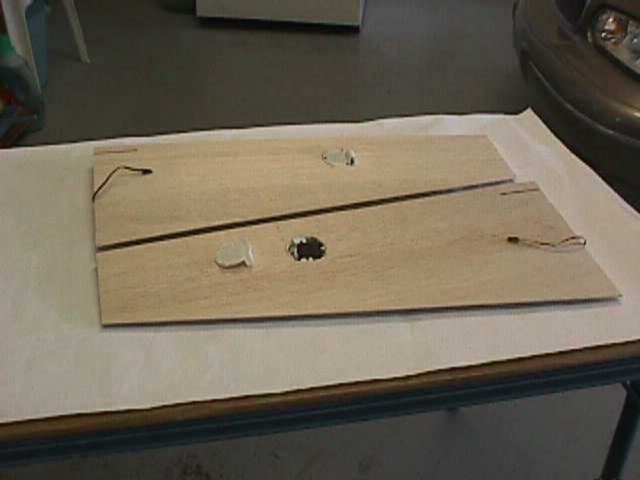

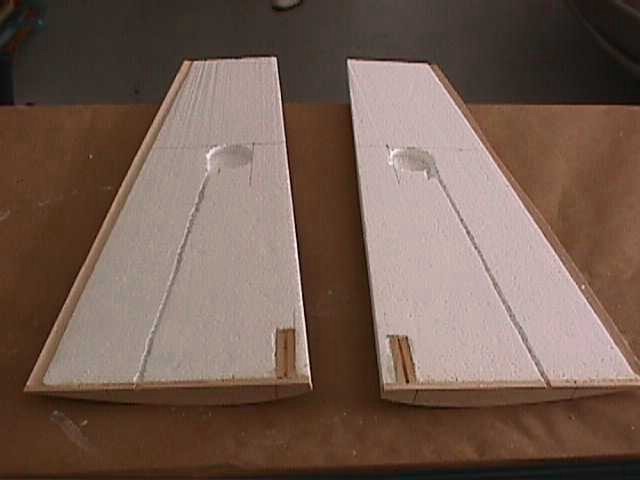

2 Hi-Tec HS 81's for Ailerons

Modifications

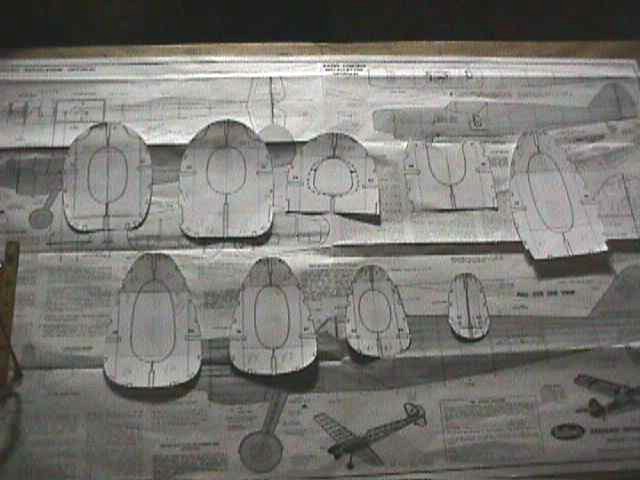

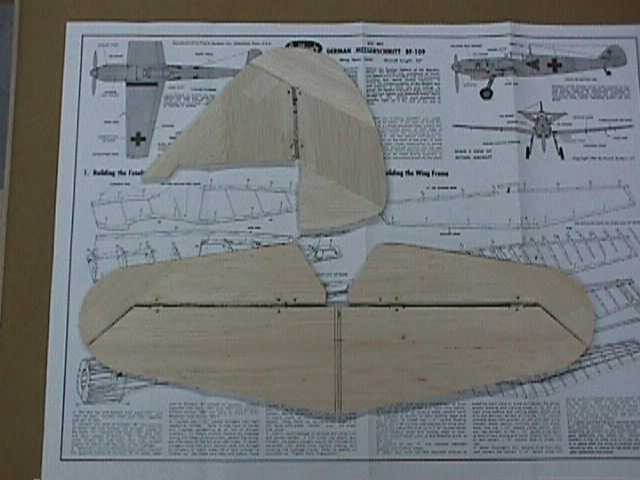

Enlarged plans 100%

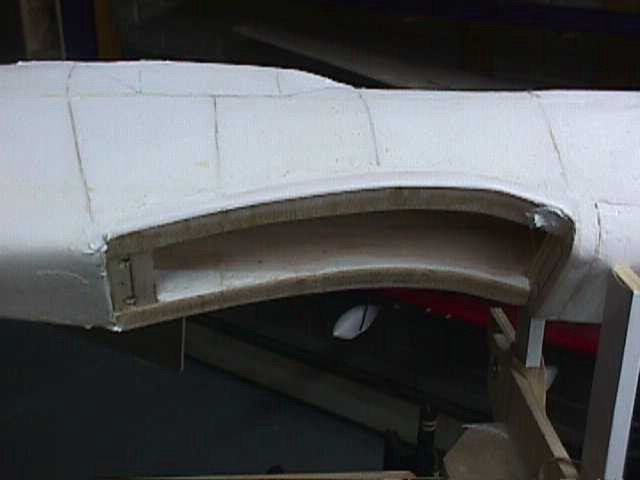

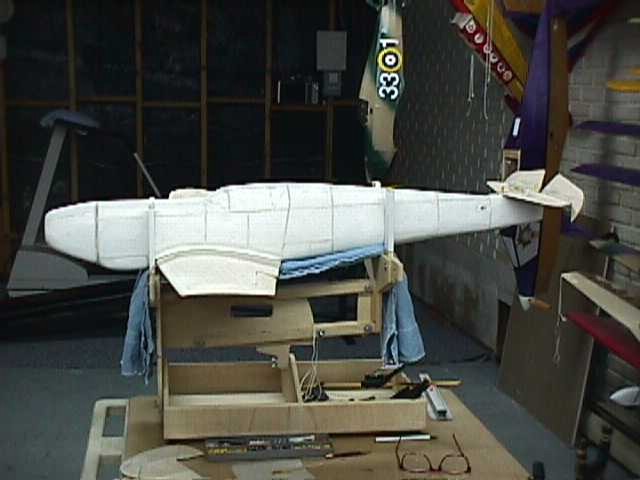

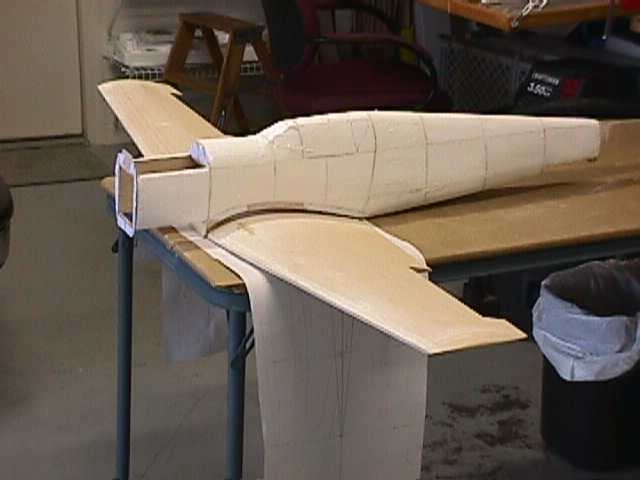

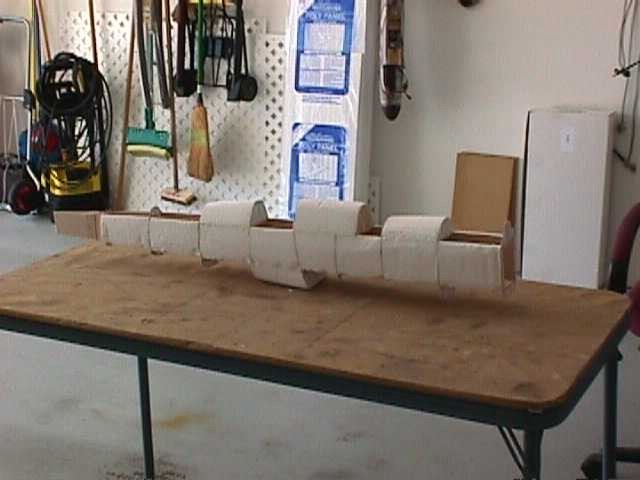

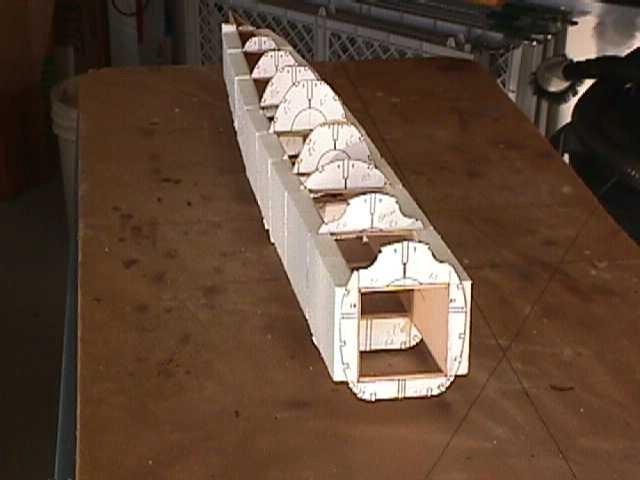

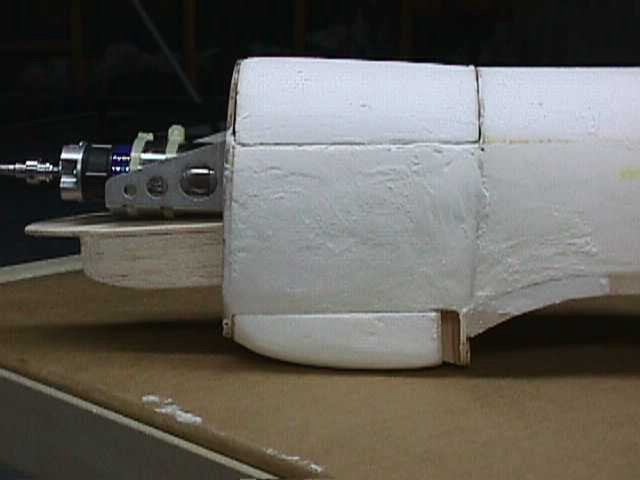

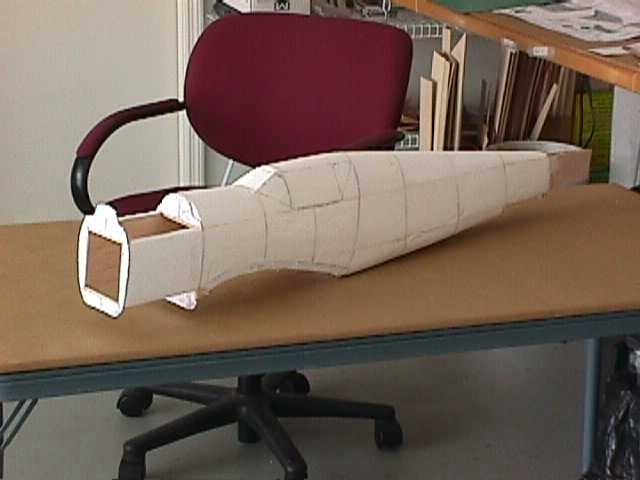

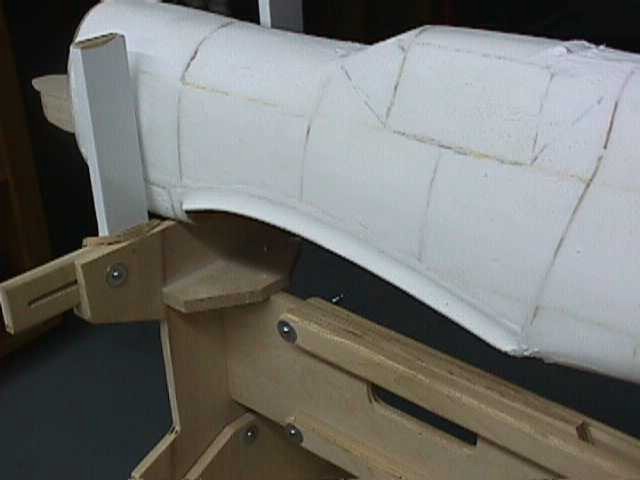

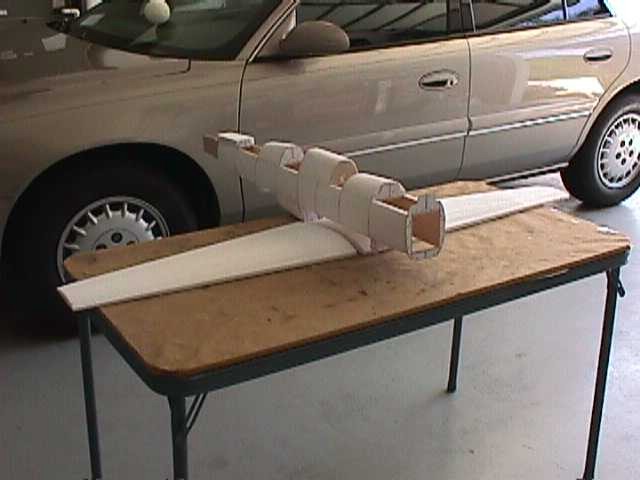

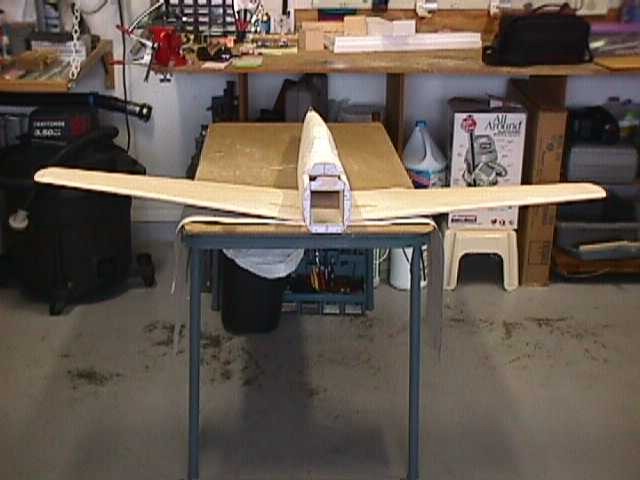

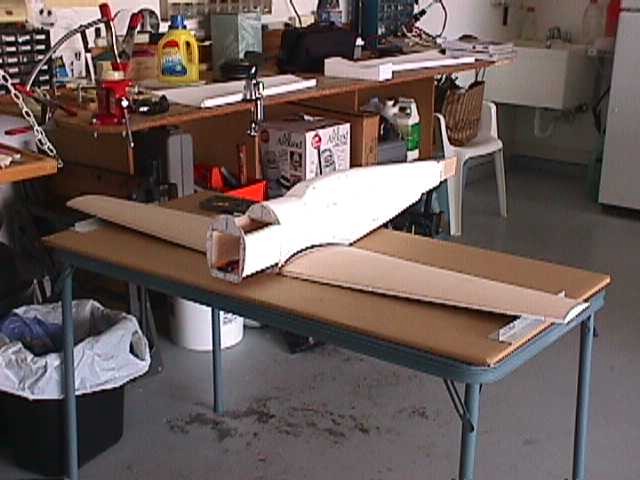

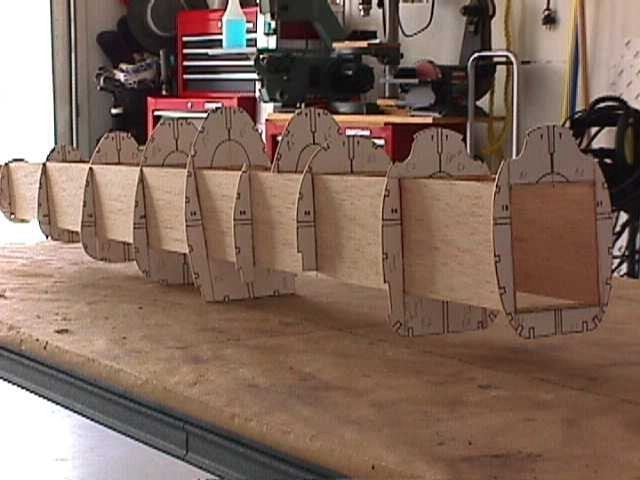

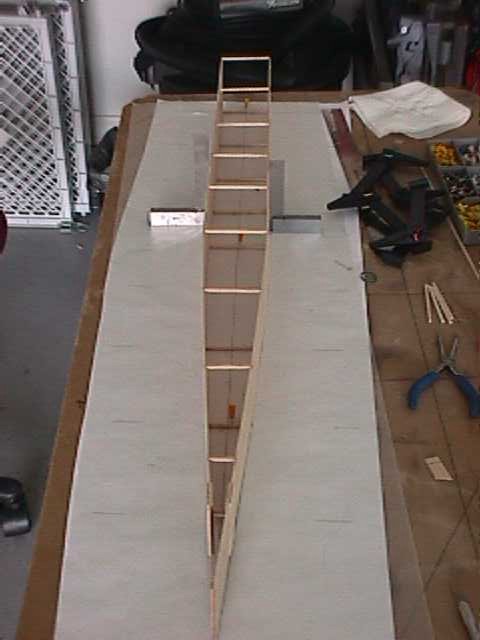

Made fuselage a crutch system & filled in between formers with white foam.
Coated with light Spackle & painted with rustoleum water base thinned 1-1

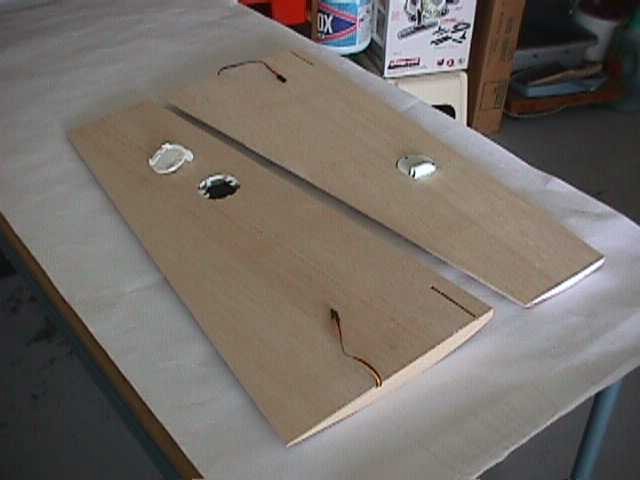

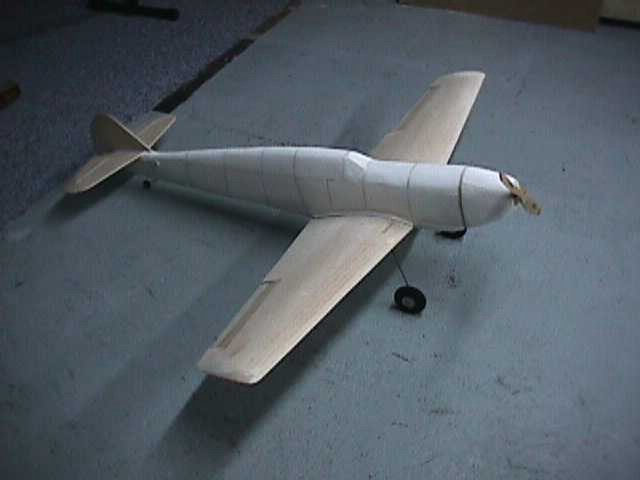

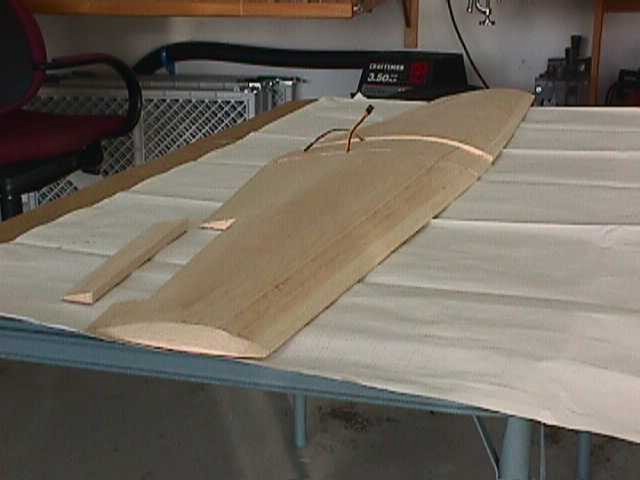

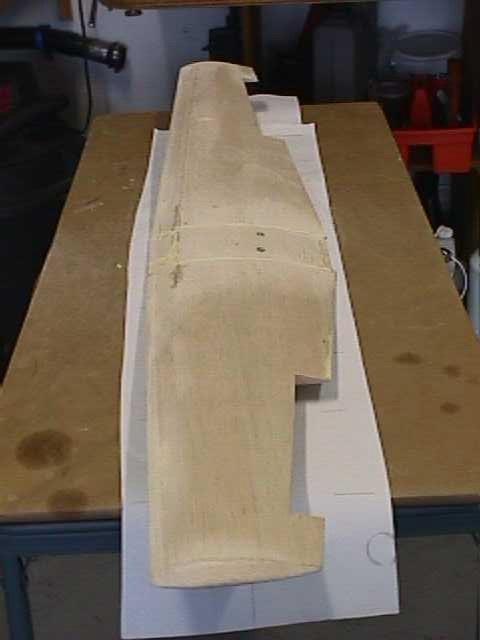

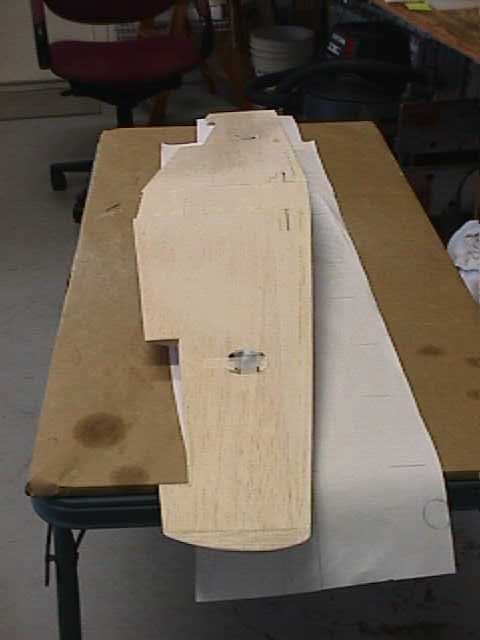

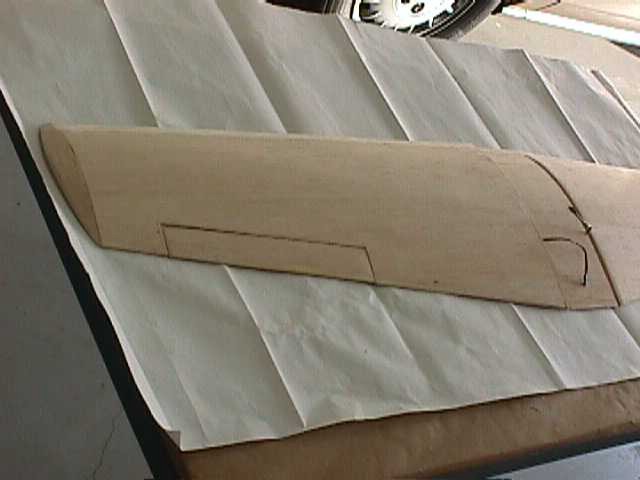

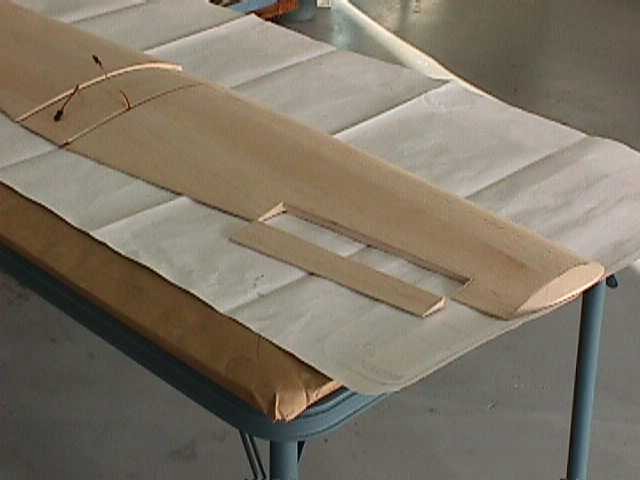

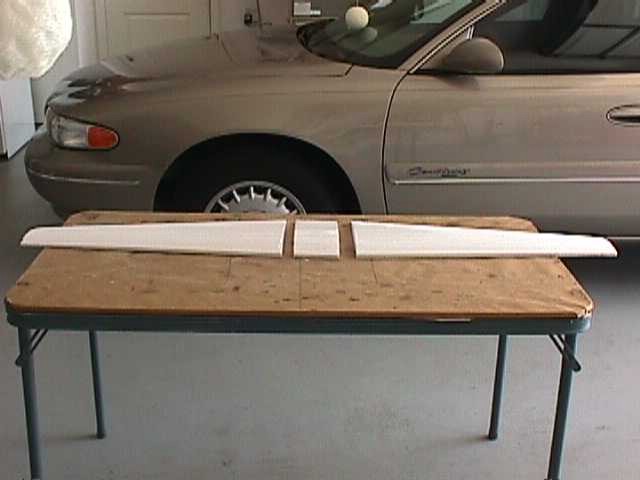

Wing is white foam covered with 1/16 balsa

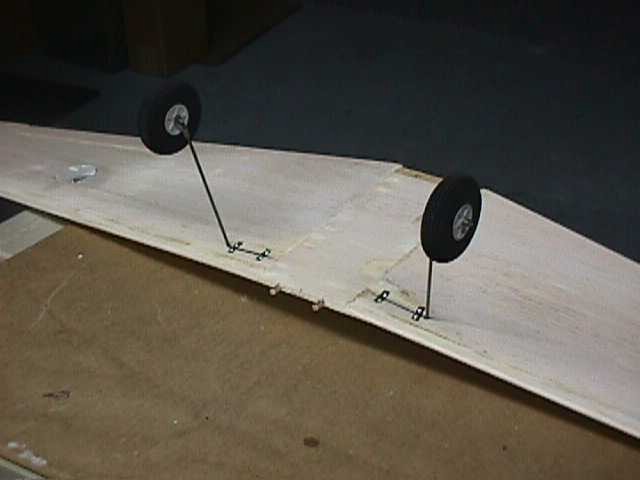

Wheels Dave Brown Lite Flight 3" Wheels

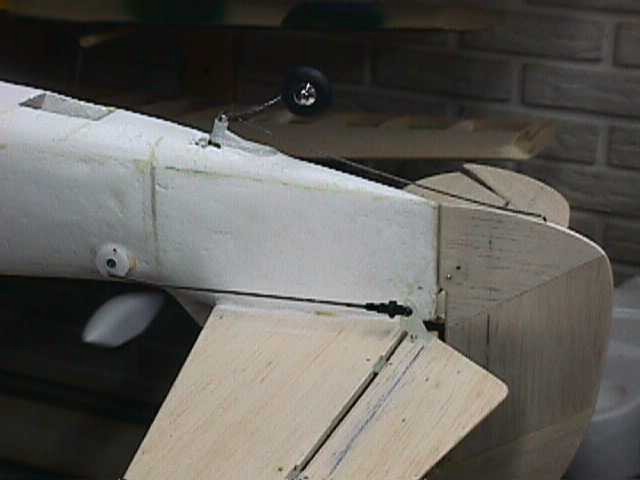

Tail Wheel with my steering modification

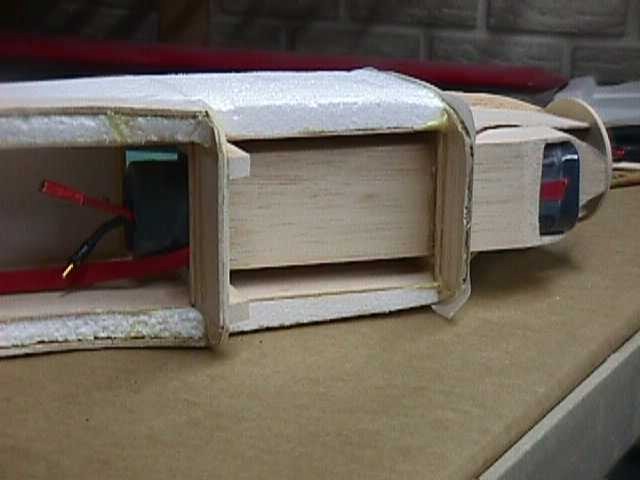

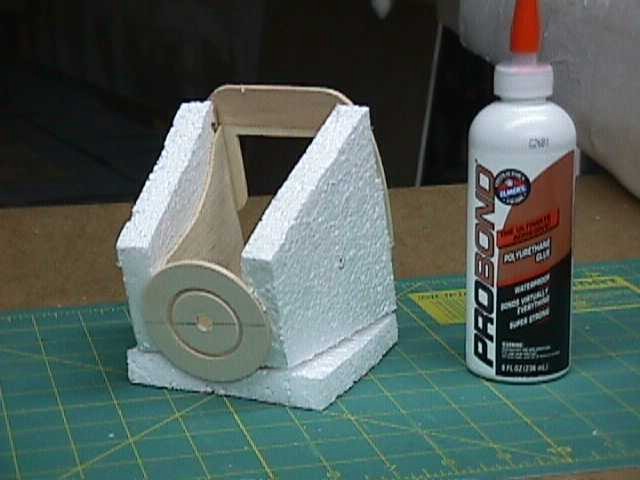

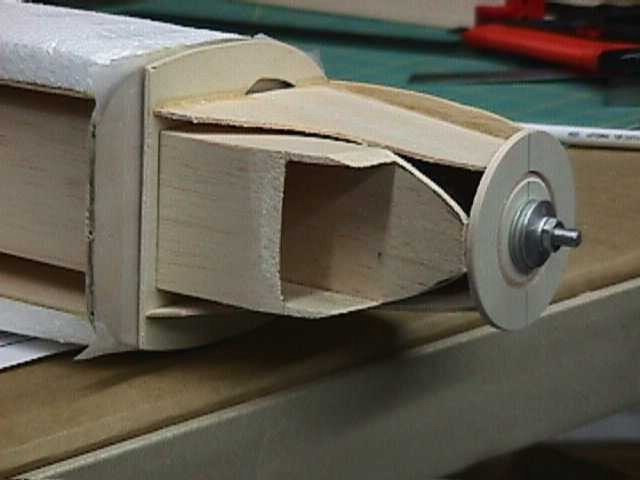

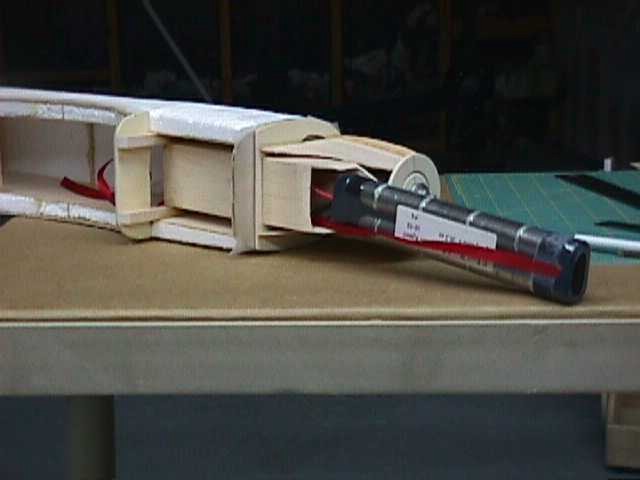

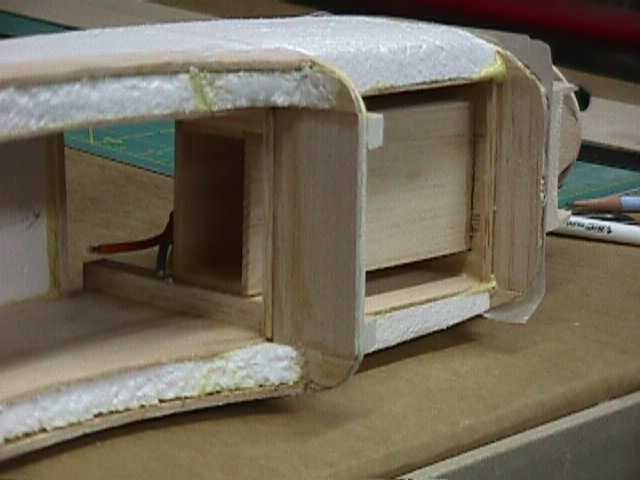

12 cells R-2400's or 3000 NiMH's Ejectable through Cowl

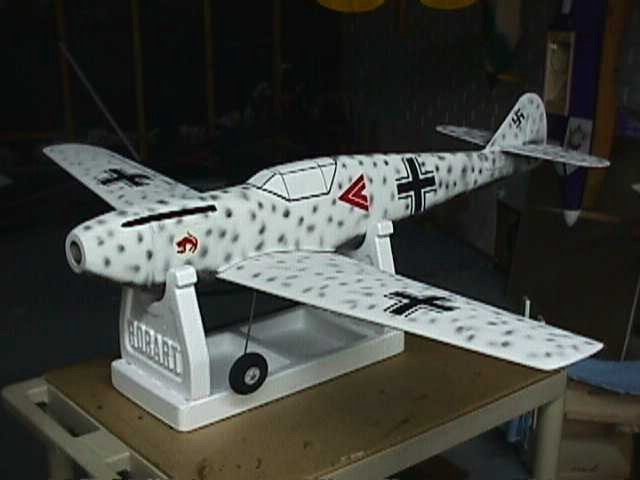

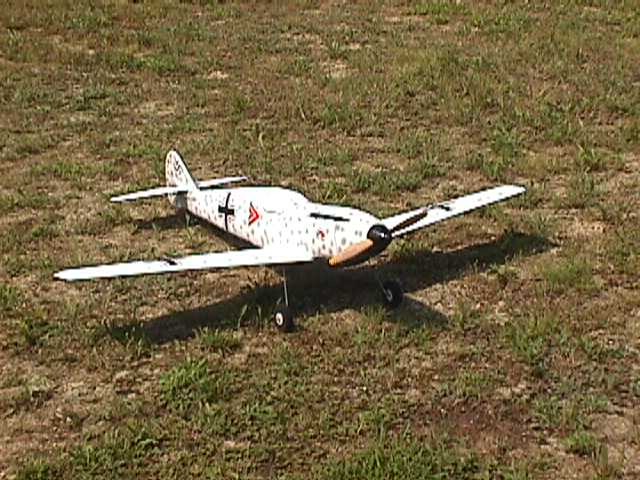

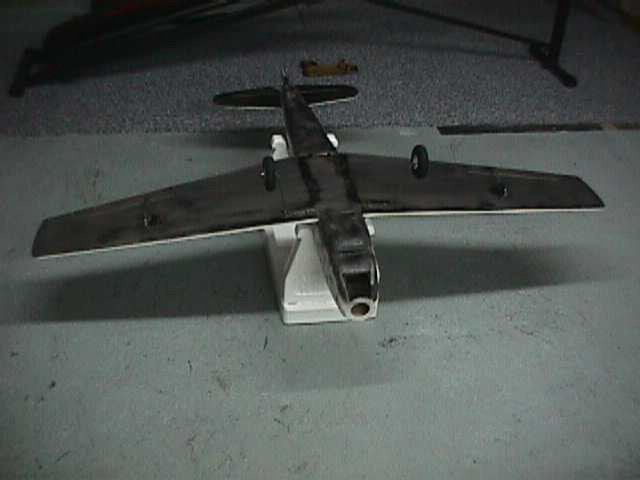

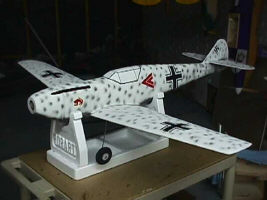

Total Weight "Final" ready to fly 7-07-01 83.8 oz. Lower surfaces painted Black

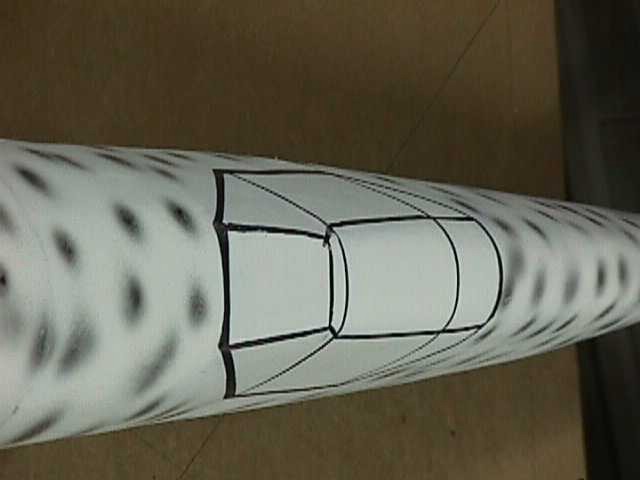

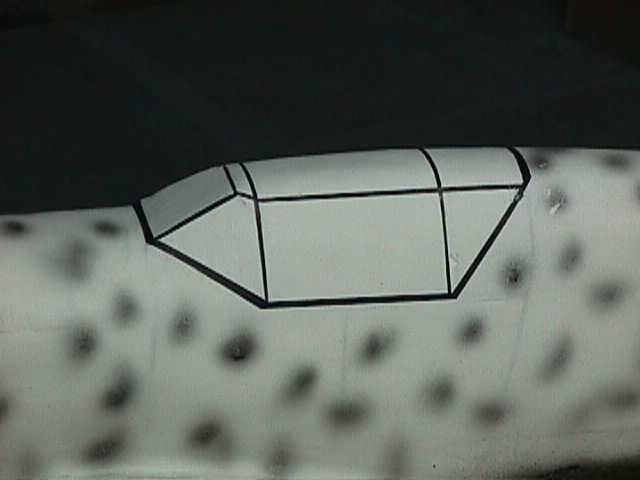

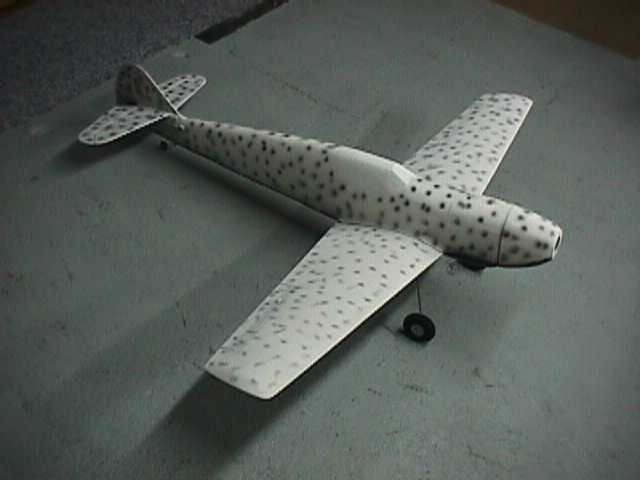

Upper Camouflage (White with black dots)

CG = 2.25" from LE with beams at the Max
Wing Incidence +1 at root +1 at Tips
Motor offset 0 down 0 left & right
CS Throws R - 1/2 E - 1/2 A - 3/8 U 1/4 D
Run Up Starting Volts 16.8 - Amps 30.1 - Watts 408
8/2/01 16.5 - " 29.9 - " 414
12/19/01 16.7 34.6 433

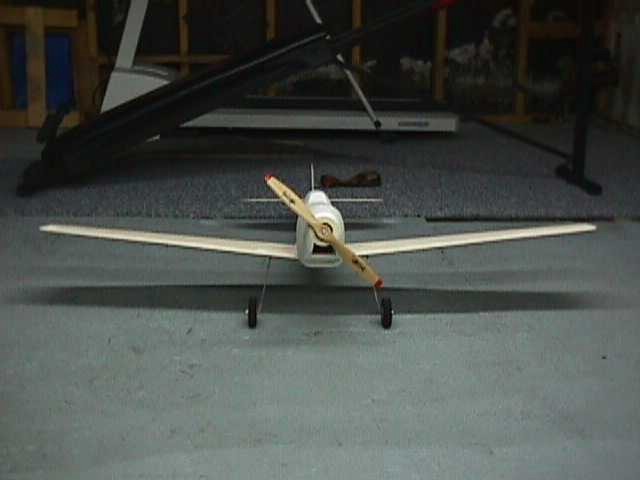

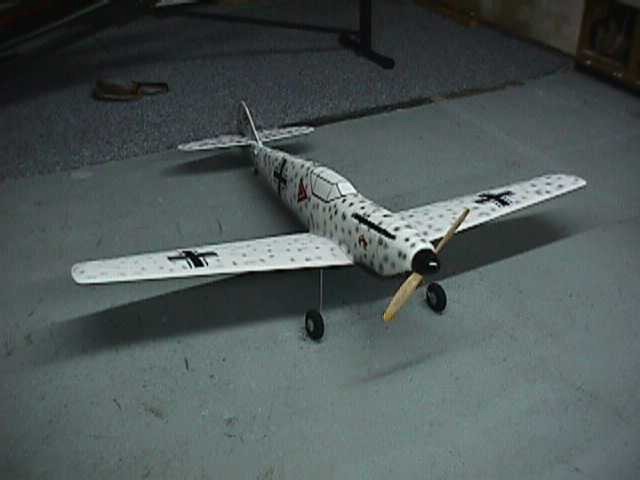

Ready to fly 7/07/01
******************************************************************
12/9/04 Converted to TP 4S4P Li-Po 8000 mah battery
Moved Motor 3/8" forward.
Collet Prop Adaptor, 12X10 APCE Prop, Heavier Spinner
Installed UBec & Li-Saver.
Weight RTF 74.8 oz. 9 oz. lighter
Run Up SV 16.3 Amps 37.8 Watts 532
*******************************************************************
