| Sound Amplifier | ||||||||||||||||||||||
![]() |
||||||||||||||||||||||
| I decided to make this circuit so that I could listen to faint noises. It is a simple two-stage transistor amplifier design. The circuit was designed to use the input from a dynamic microphone but I am sure that with some modifications it would be possible to use an electret microphone. The 2N3053 transistors used in the design don't have a particularly high gain so other types could probably be used as long as they are NPN. It is probably best to use earphones because if a speaker is used then there is the problem of acoustic feedback. |
||||||||||||||||||||||
![]() |
![]() |
|||||||||||||||||||||

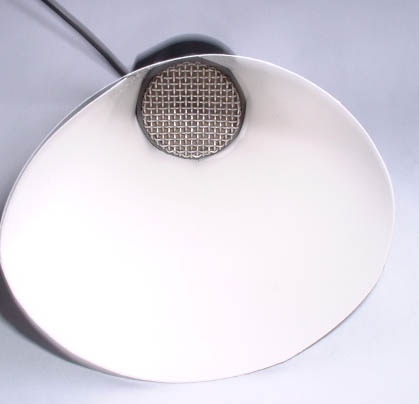

| Inside view showing the dynamic microphone | ||||||||||||||||||||||
| My homemade sound collector | ||||||||||||||||||||||
![]() |
||||||||||||||||||||||
![]() |
||||||||||||||||||||||
| The PCB underside | ||||||||||||||||||||||

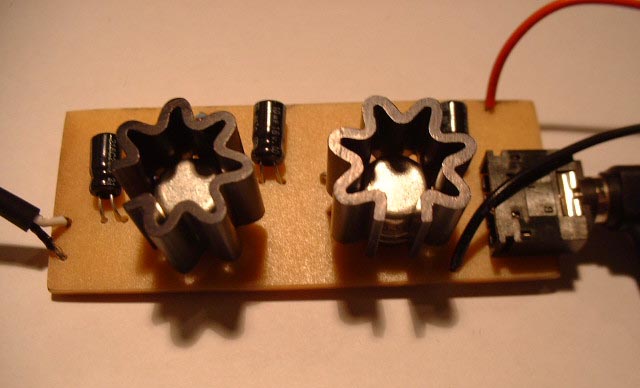

| The finished circuit | ||||||||||||||||||||||
