| The Brief was to design a Winebar that was centraly located in a Town Centre, the design was to keep all the original geogian mouldings pillers etc. My design is based on Neo Classical, my colour scheme is yellows and whites, with rich red furnishings. We had to do a survey, measurements, of the origanal building, and draw up a spaceplan, for the finished design, and draw up finished visuals of 4 different locations inside the building. |
 |
 |
 |
 |
 |

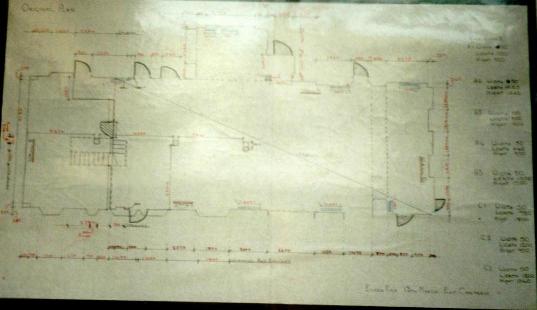

| SCALE PLAN OF THE SURVEY |
| ELEVATION OF THE WINEBAR ENTRANCE |
| ONE POINT PERSPECTIVE OF ENTRANCE INTERIOR |

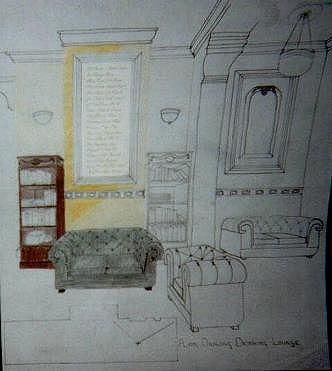

| ONE POINT PERSPECTIVE OF THE LEFT SIDE OF THE ENTRANCE |

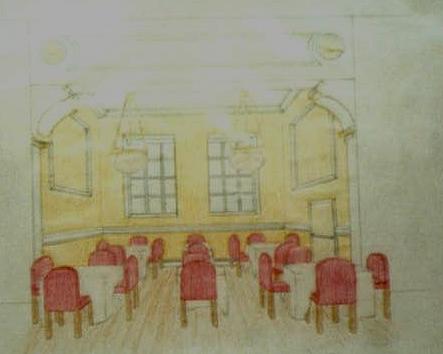

| ONE POINT PERSPECTIVE OF THE DINING AREA |

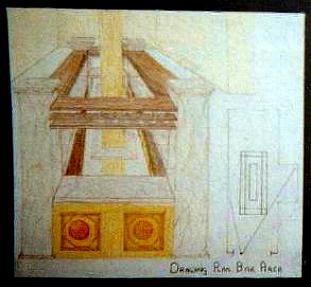

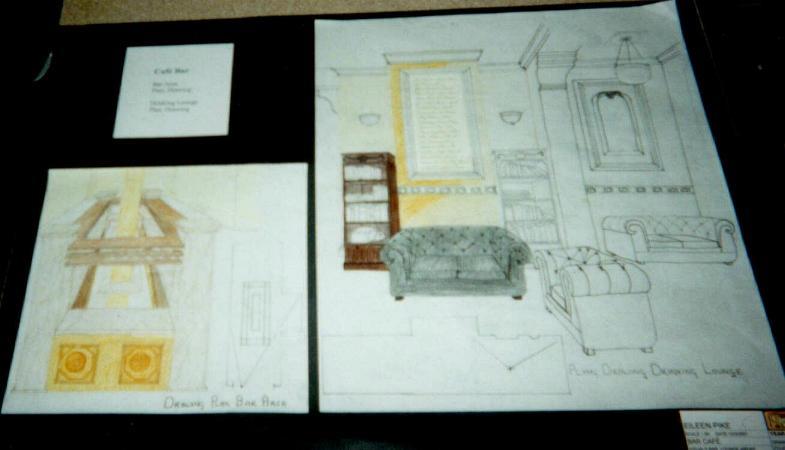

| THE BAR I DESIGNED |
| I PUT COLUMNS NEXT TO THE EXHISTING WINDOWS,"TO KEEP IN WITH THE CLASSIC DESIGN" I MIRRORED THE SAME DESIGN ON THE FACING WALL AND A SHELF GOING AROUND FROM THE LEFTWALL, BACKWALL ONTO THE RIGHTWALL TO HOLD THE COLUMNS. THEN ON THE BACKWALL I HAVE PUT IN 2 LARGE MIRRORS WITH A CLASSIC DESIGN FRAME. |
| WINDOWS |
| BACKWALL |
| COLOURBOARD |
| WINEBAR-BISTRO |
