BUILDING AN 0-4-0 "GOAT" LOCOMOTIVE SEPT. 1 - OCT. 8, 2009 |
|||||||||||||||||||
| The "Critter" has been such a successful locomotive, we wanted to have another locomotive with a similar mech- anism. The folks at Ride Trains offered a mechanism for a Davenport side-rod locomotive as a "beta test" model. Originally I was going to build a Davenport body, but we got to thinking, we can make this into a steam locomotive. Well, one of my old favorites might be close enough to work with this mechanism - a Reading A5a 0-4-0 switcher. |
||||||||||||||||||||
 |
 |
|||||||||||||||||||
| HEAVY - The UPS guy probably wondered what could possibly weigh 100 pounds! | ||||||||||||||||||||

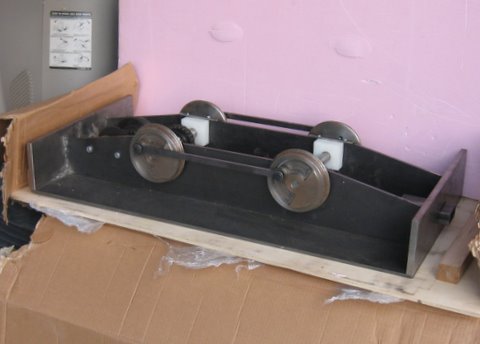

| WHAT'S INSIDE - a siderod locomotive mechanism, made of solid steel plate. | ||||||||||||||||||||
 |
 |
|||||||||||||||||||

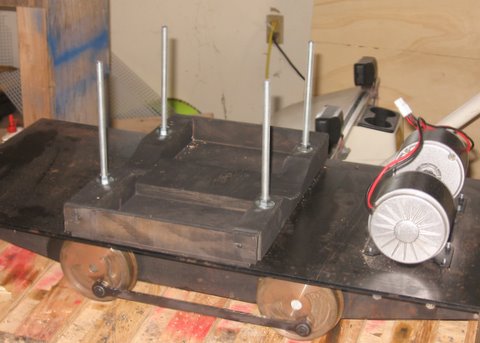

| SECURING THE BATTERIES - Threaded rod is secured through the steel plate. | ||||||||||||||||||||

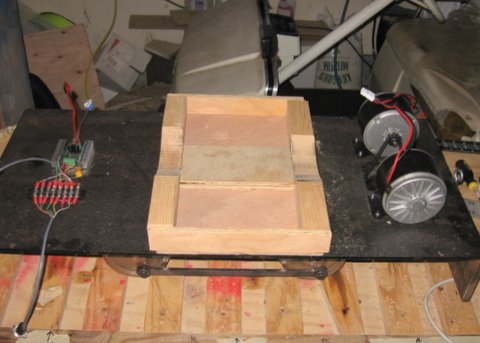

| BATTERY PLATFORM - the location will be inside the locomotive cab. | ||||||||||||||||||||
 |
 |
|||||||||||||||||||

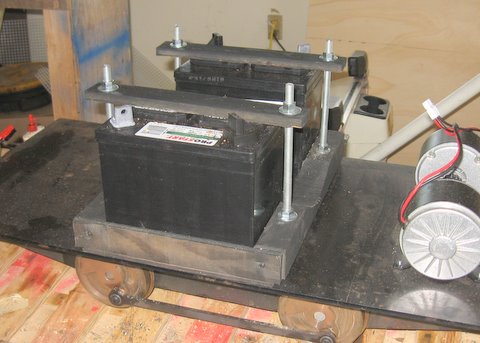

| BATTERIES INSTALLED - A nice solid place for the 380 CCA lawn tractor batteries. Later I had to modify this installation to fit the locomotive's upper deck. |

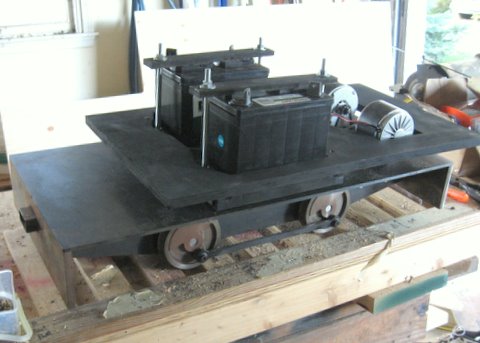

DECK INSTALLED - The front is on the left, and the firebox will be on the right, extended a couple inches past the end of the original frame. | |||||||||||||||||||
 |
 |
|||||||||||||||||||

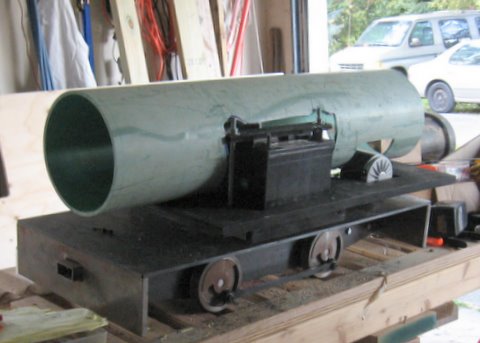

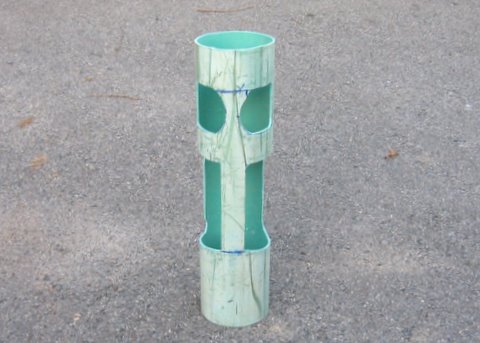

| WHAT THE HECK IS IT - Once it was a culvert....now it looks like a scary face! | MYSTERY SOLVED - It's a boiler for the Goat! Imagine a cab around the batteries. | |||||||||||||||||||
 |
 |
|||||||||||||||||||

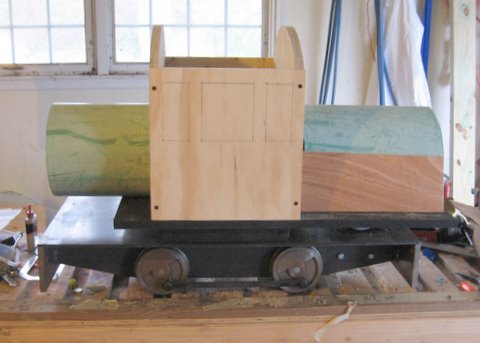

| SIDE VIEW - The goat's dimensions seem to match the prototype's, at least the basics. Next: cut out the cab windows and make a roof. | ||||||||||||||||||||

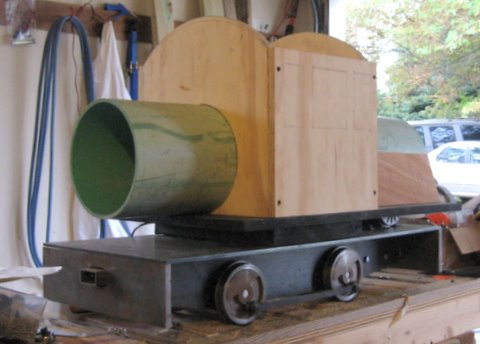

| CAB ROUGHED IN - The boiler slides into the front wall. I'm not exactly sure yet about the curve of the roof. I'll have to compare this photo with prototype photos. | ||||||||||||||||||||
 |
||||||||||||||||||||
 |
||||||||||||||||||||

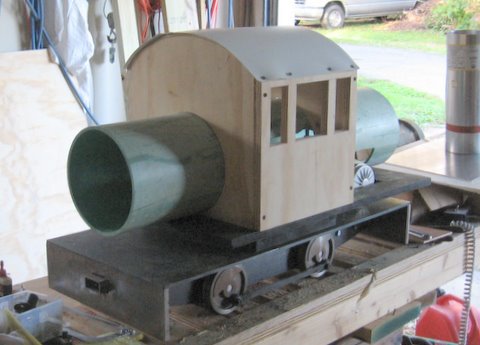

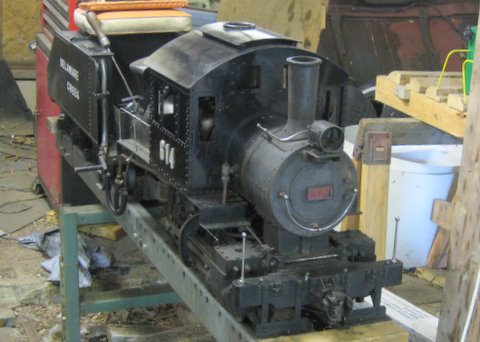

| GETTING THERE - The side windows are cut out, the roof profile changed slightly, and a temporary plastic roof applied. The aluminum I have is too stiff to bend. | FINISHED PRODUCT - Just kidding! This is Fred's live steam Reading A5a Camelback. As long as ours looks somewhat similar to this one I'll be happy. | |||||||||||||||||||
