) ) The
LPG system has to be upgraded to the new engine. Some web navigations show
me the performance limitations of the actual system:

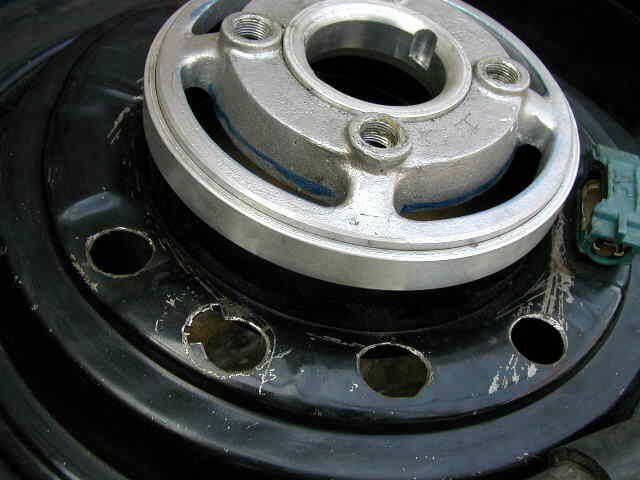

Too long distance (55") between the vapourizer (A on image) and the mixer (C) slows lpg suction. AEB, the lpg ecu maker, advices to put the stepper (B) as close as possible to the mixer(C). The mixer feeding system with 4 little hoses restricts air flow. |
) ) Lpg
is sucked by the vaccuum created by the mixer restriction.

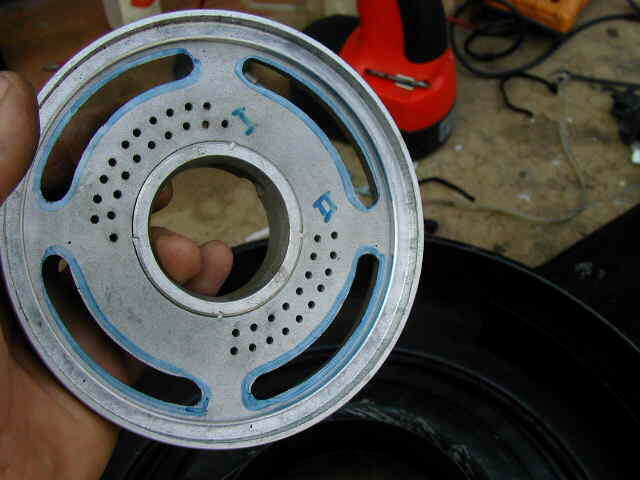

But the level of vaccuum so created is weaker than by a venturi mixer. For the same restriction, the engine could inhalate more lpg with a venturi. The mixer shape opens out to the top. Putting it upside down allows to build a venturi "doughnut" |
) ) ) An

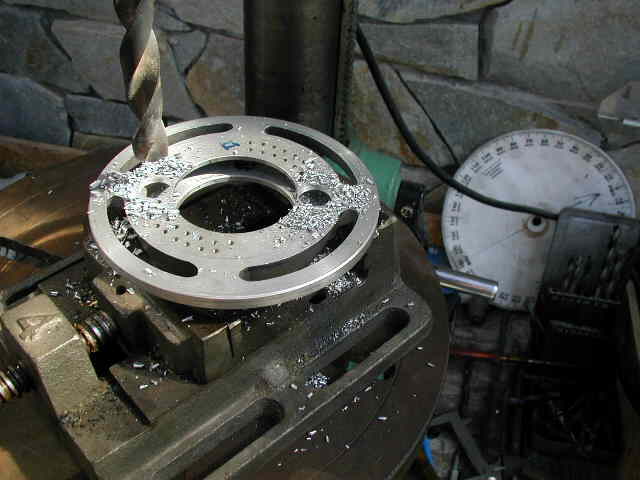

other modification is the mixer feeding via a big Y.

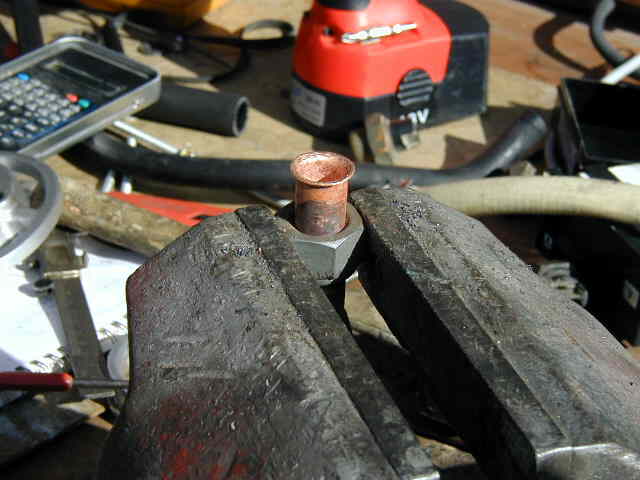

New feeding holes drilling. 2 copper flanges building |

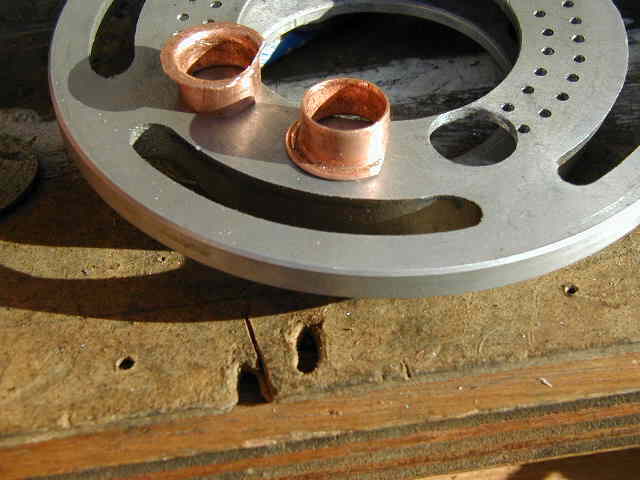

) ) ) These
flanges will be soldered on two copper plumbing bends.
A rough try allows to check the project. |
) ) ) Mixer
is venturi reshaped.
Air passages are widened. This will increase air flows thru the mixer. |
) ) I
drill little holes all around the venturi for lpg flowing.
These holes are located where the vaccuum is at its maximum. This will increase lpg flows. Mixer hedges are rounded for better flowing. |
) ) ) Stepper
input and output are ported for better lpg flowing.
The stepper is mounted just under the air filter housing (2" from mixer instead of 40" before). |
) ) A
upside down view of the carburetor on the air cleaner housing shows the
stepper embedded in the filter housing.
The other view shows the complete system mounted on the carburetor.
|
| [ picture to come]
The vapourizer is mounted under the brake master cylinder at 14" from the mixer (55" before). |
