Installing Plastic Lumber Bleacher Seating

Because of significant thermal expansion of Plastic Lumber, from cold to hot weather, the following bolted assemblies, thru-holes, and end-to-end butt gaps are recommended for 2x6, 2x8, 2x10, or 2x12 Plastic Lumber seating on benches, tables, and bleachers.

Span	Bolt	Washer	Nyloc-nut	Thru-hole	Growth*
0 - 2'	3/8"	3/8" std.	3/8"	3/8"	.08"
2' - 4'	3/8"	3/8" std.	3/8"	7/16"	.16"
4' - 6'	3/8"	3/8" fender	3/8"	1/2"	.24"

* estimated thermal growth from 0° F to 100° F temperature, for HDPE Plastic Lumber.

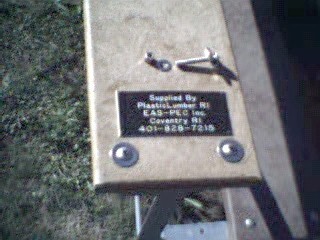

Use only "Stainless Steel" lag bolts, truss bolts, washers and nuts.

Install SS flat washers on top of board, under bolt heads.

Drill thru-hole diameter size per Plastic Lumber span as noted.

Install nyloc-nuts with flat washer on bolt, "snug tight".

Butt-gaps (end to end) for cold day Installation

Temperature	6' length	8' length	12' length	16' length
32°-50° F	1/8"	3/16"	1/4"	3/8"
51°-75° F	1/16"	3/32"	1/8"	3/16"
