Pinout for Ethernet cables
|
Pin |
Color on one side of MBIX Cable |
Colors on other end of MBIX cable |
|
1 |
White/Orange |
White/Green |
|
2 |
Orange/White |
Green/White |
|
3 |
White/Green |
White/Orange |
|
4 |
Blue/White |
Blue/White |
|
5 |
White/Blue |
White/Blue |
|
6 |
Green/White |
Orange/White |
|
7 |
White/Brown |
White/Brown |
|
8 |
Brown/White |
Brown/White |

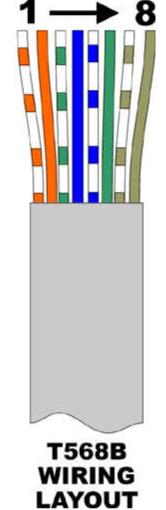

| Pin |
Color on one side of T568B Cable |
| 1 |
White/Orange |
| 2 |
Orange/White |
| 3 |
White/Green |
| 4 |
Blue/White |
| 5 |
White/Blue |
| 6 |
Green/White |
| 7 |
White/Brown |
| 8 |
Brown/White |
