1. Ventricular Tachycardia
2. Mobitz II
3. Wenkebach vs Mobitz II? Or is it really only SR with PACs?
4. Sinus Tachycardia/Myocardial Infarction
5. Supraventricular Tachycardia
6. Atrial Flutter/Demand Ventricular Pacemaker
7. Sinus Tachycardia/Left Bundle Branch Block
8. Atrial Flutter
9. Atrial Fibrillation/Ashman's Phenomena
10. Sinus Rhythm/Myocardial Infarction
11. Ventricular Bigeminy
12. Sinus Tachycardia/Premature Ventricular Contractions
13. Sinus Tachycardia/Premature Atrial Contractions
14. Sinus Rhythm with Trigeminal Ectopy (Atrial vs. Ventricular)
15. Sinus Rhythm /Premature Ventricular Contractions
16. Atrial Fibrillation. Or is it?
17. Bradycardia/Complete Heart Block
18. Sinus Rhythm/Premature Atrial Contractions
19. Supraventricular Tachycardia
20. Sinus Rhythm/Premature Atrial Contractions
21. Sinus Tachycardia/Bundle Branch Block
22. Complete Heart Block
23. Sinus Tachycardia
24. Atrial Flutter - 2:1 Conduction
25. Junctional Tachycardia
26. Ventricular Fibrillation
27. Ventricular Trigeminy
28. Cardioversion Sequence
29. Wenkebach with 10:9 and 9:8 conduction
30. Paroxysmal Atrial Tachycardia and Vagal Maneuver Slowing
31. Sinus Rhythm vs CHB vs AV Dissociation
32. Sinus Tachycardia
33. Sinus Rhythm with PACs and PVCs
34. Sinus Rhythm with PVCs
35. Atrial Flutter
36. Atrial Tachycardia
37. Ventricular Pacemaker
38. Mobitz Type 1 (Wenkebach)
39. Atrial Fibrillation with Ashman's Phenomenon
40. Sinus Rhythm with BBB
41. Atrial Fib with ectopics
42. Multifocal Atrial Tachycardia
43. Paroxysmal Atrial Tachycardia
44. Atrial Fibrillation with trigeminal ventricular ectopics
45. More PAT
46. Sinus Tachycardia - recent MI
47. Atrial Fibrillation with ectopics
48. Sinus Rhythm
49. Atrial Bigeminy
50. Sinus Rhythm
51. Sinus with PACs
52. Sinus with PVCs
53. Multi-formed PVCs
54. Sinus Rhythm
55. Sinus Tachycardia with Mobitz 2
56. Sinus Rhythm with Mobitz 2
57. Ventricular Tachycardia
58. Sinus Tachycardia with PVCs
59. Atrial Tachycardia
60. Perfusing Rhythm with PVCs
61. SVT with PVCs/Atrial Tachycardia
62. Sinus Rhythm with PACs
63. Ventricular Tachycardia
64. Sinus Tachycardia / Evolving MI
65. Sinus Tachycardia / Evolving MI
66. Rapid Atrial Fibrillation
67. Sinus Bradycardia
68. I'm still trying to figure out just what this is!
69. SVT with Adenosine treatment
70. LBBB/LAD
71. DDD Pacemaker in VAT mode - intermittent capture
72. DDD Pacemaker in VAT mode - Tachyarrhythmia?
73. Sinus Tachycardia with PVCs/AMI
74. Superventricular Tachycardia
75. Agonal Rhythm
76. Atrial Fibrillation with ectopy
77. Sinus Tachycardia with quadrigeminal PVCs
78. Sinus Rhythm - recent MI
79. Sinus Rhythm with 1st degree AV Block
80. Tachy/Brady Syndrome/Demand Pacemaker
81. Sinus Tachycardia - 1st degree AV Block
82. Multiformed PVCs - Coupling
83. Atrial Fibrillation - ST Changes
84. Sinus Bradycardia with PVCs
85. Sinus Rhythm - ST changes - BBB
86. Superventricular Tachycardia
87. Superventricular Tachycardia
88. Sinus Bradycardia
89. Sinus Tachycardia with multiformed PVCs
90. Sinus Tachycardia with PACs
91. Inferior MI - Acute Phase
92. Inferior MI/Post TPA #1
93. Accelerated Idioventricular/Eternal Pacemaker
94. Inferior MI - Post TPA #2
95. Accelerated Idioventricular. Inferior MI/post TPA #3
96. Sinus Bradycardia
97. Profound Bradycardia/External Pacemaker
98. Bradycardia with Ventricular Escape Beats
99. Atrial Fibrillation
100. Sinus Rhythm with frequent PVCs
101. Complete Heart Block
102. Atrial Flutter with 4:1 conduction
103. Bradycardia? A. Fib? AMI?
104. A-V Pacemaker
105. Bradycardia with External Pacing
106. Atrial Fibrillation
107. Atrial Fib with Bundle Branch Block
108. Ectopy, ectopy everywhere!!!
109. Sinus Rhythm with PVCs
110. Acute Inferior MI
111. Atrial Fib with JUNK!
112. Atrial Fibrillation with Ashman's Phenomenon
Lead II

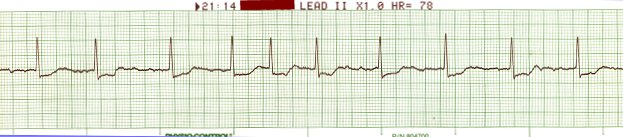

This tracing shows Atrial Fibrillation. The ST depression might indicate ischemia and multiple leads should be checked for verification.
