Lead II

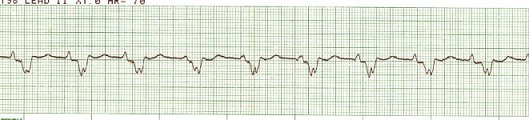

Here we have a Sinus Rhythm at 70/min. Note that the PR interval is not constant, nor is the P-P. The P-waves have a different shape in beats 4, 5 and 6. This is more likely Complete Heart Block or AV Dissociation. Let
ME
know what you think.
