My implementation of Magnavox Plus

Back to Magnavox Plus



Some comments:

- For the preamp stage and phase splitter I'm using  6EU7 (GE)

- For the final stage EL84 (Ei)

- R1 - ALPS

- R3, R6, R7, R10, R12, R14 - 'tantals' from 'AudioNote'

- C1 - paper in oil 'Jensen'

- C3,C4 - 'MultiCap'

- C7-C8 - 470,0 uF 400v (RIFA Peh430)

- OPTs - from 'Sowter' UK (UI64 for 4Ohms only) www.sowter.co.uk

- I didn't have good cap for C5, so I used four 100uF Black Gate' used in KEL84

- Actual PCB has some changes (C6, for example, is on PCB)

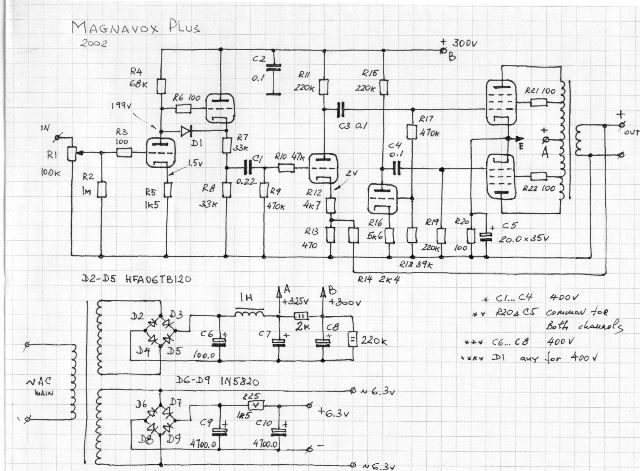

Final solution I came up with

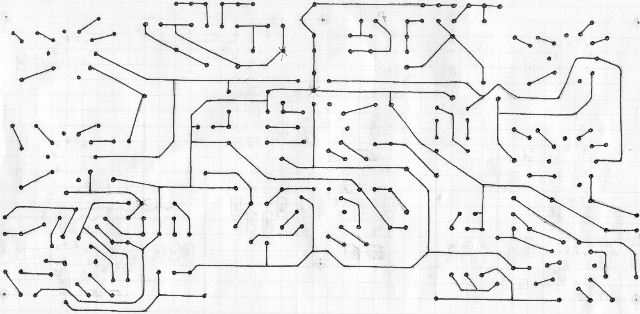

PCB (one side used only) from the side of conductors

(SIZE IS NOT REAL !!!)



PCB from the parts with view at conductors (just in case and for easy check)

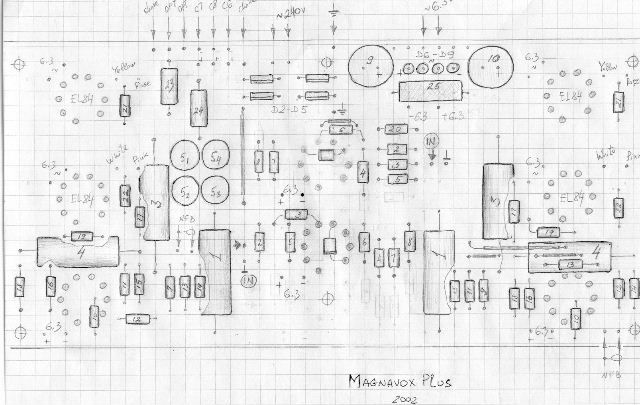

PCB parts deployment (number according to the circuit given above)
