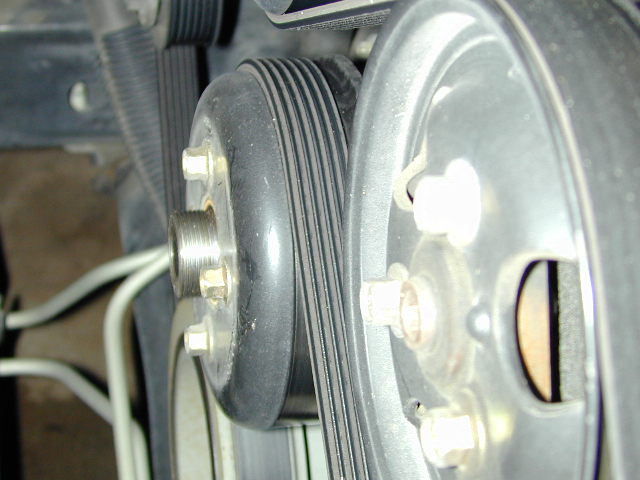

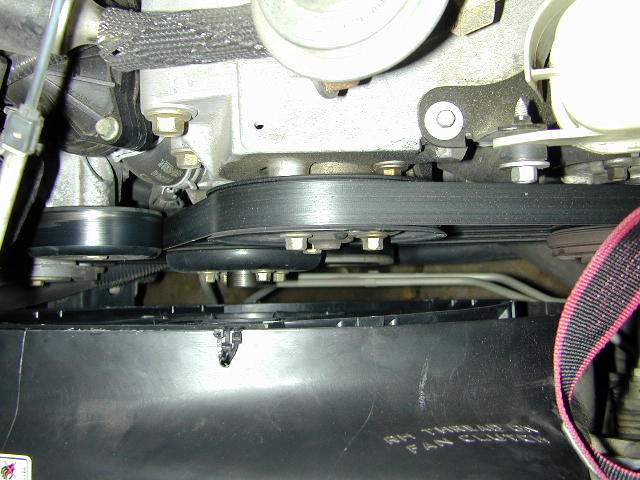

Heres a pic of the fan clutch removed.

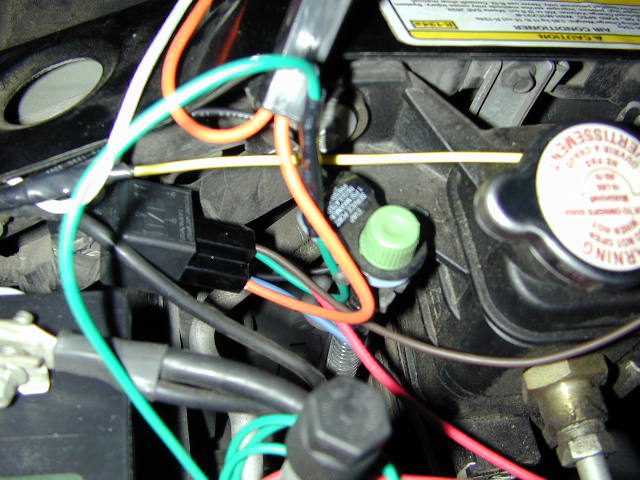

The relay and some of the wires.

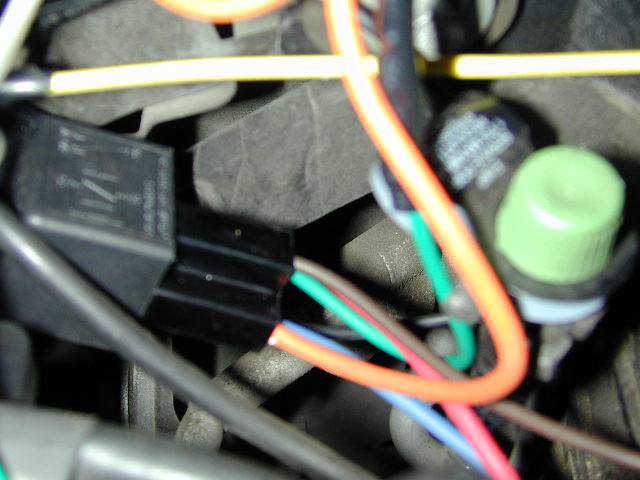

Another shot of the relay.

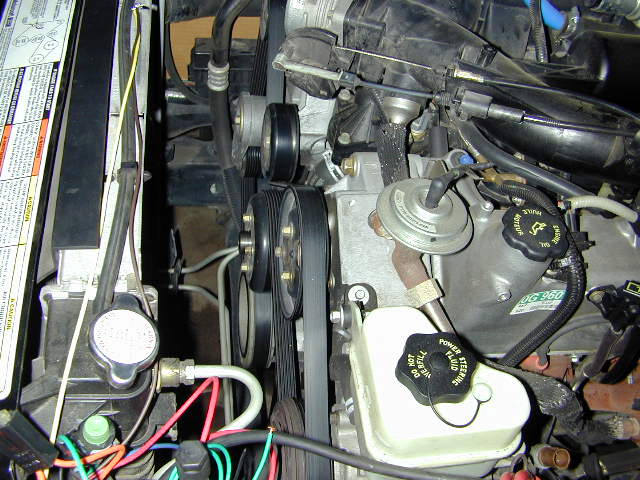

Radiator shroud removed.

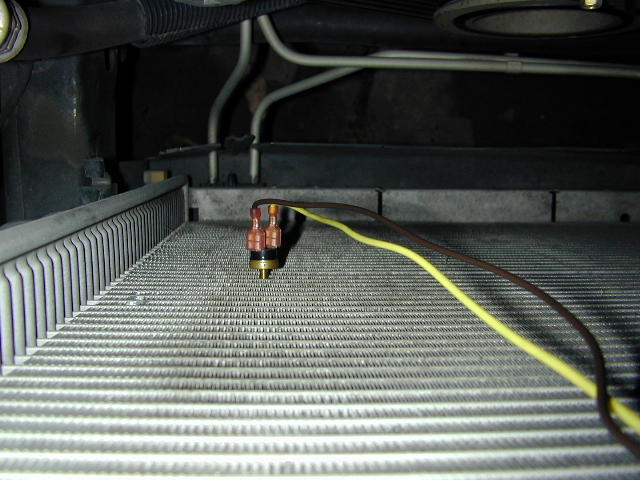

Thermostat inserted in the fins.

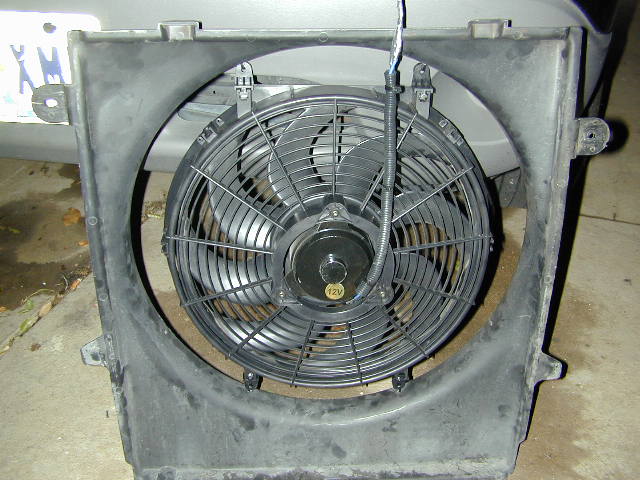

This fan is designed to be a pusher or puller. I set it up as a pusher to avoid and clearance issues and mounted to stock shroud.

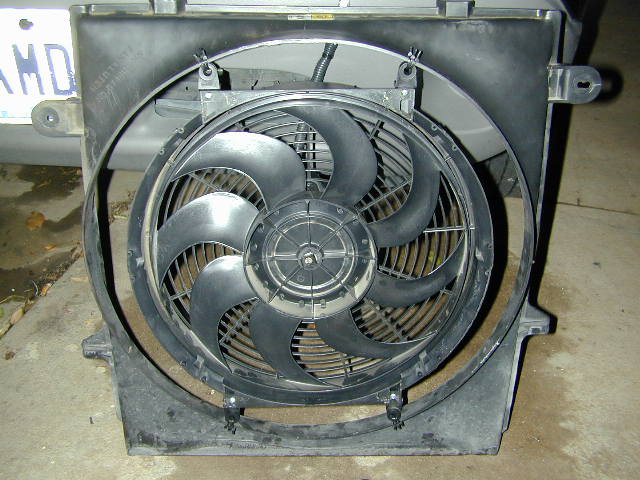

The other side (radiator side of shroud)
The shroud installed back in place.

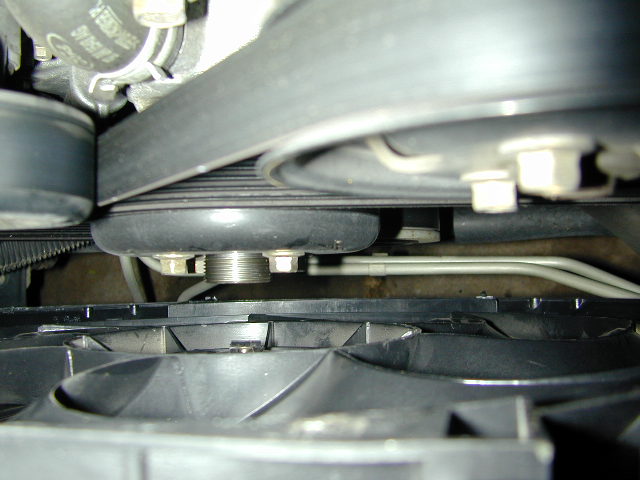

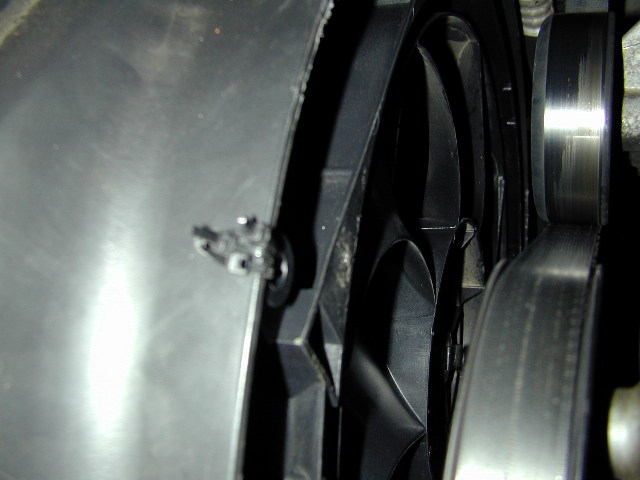

The fan sits flush with the outer edge of the shroud and gives me about a 3" clearance from water pump pulley.

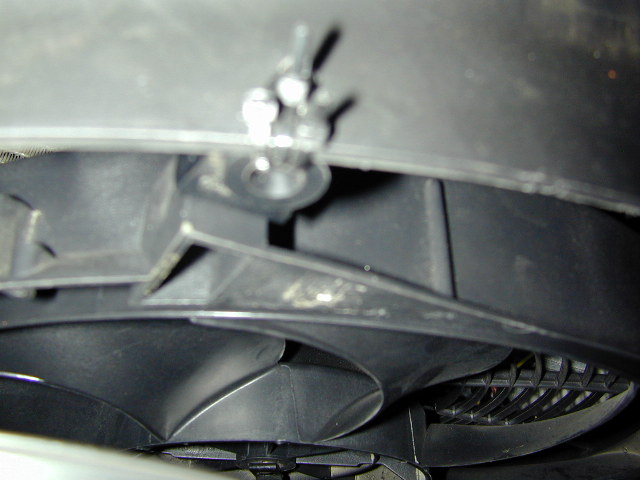

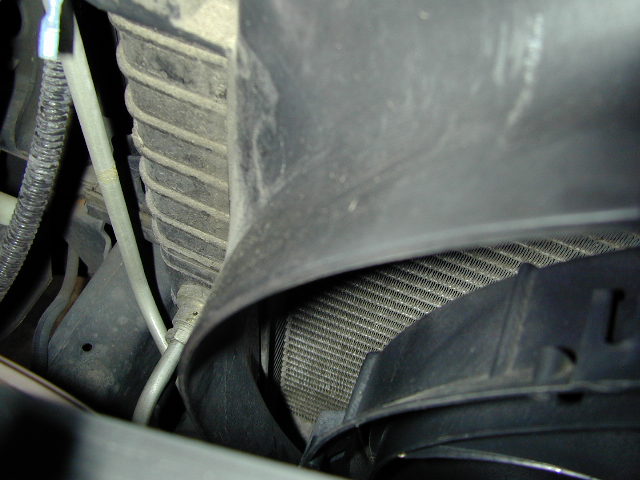

Heres some closeups of the tabs and shroud gap.
