| Right Wing 3 | |||||||||||||||||||||
| 4/22/2005 | |||||||||||||||||||||
|
|||||||||||||||||||||

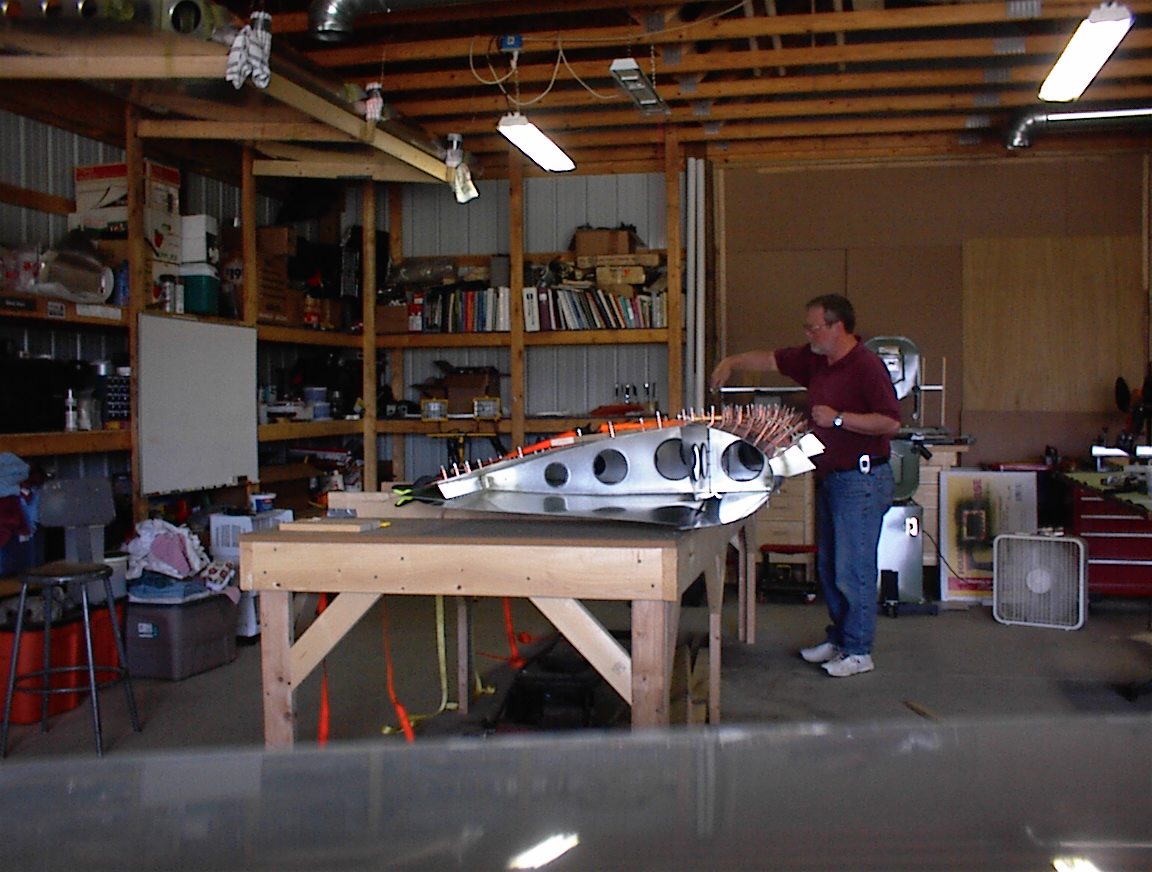

| Here I am picking my nose once again. | |||||||||||||||||||||
|
|||||||||||||||||||||

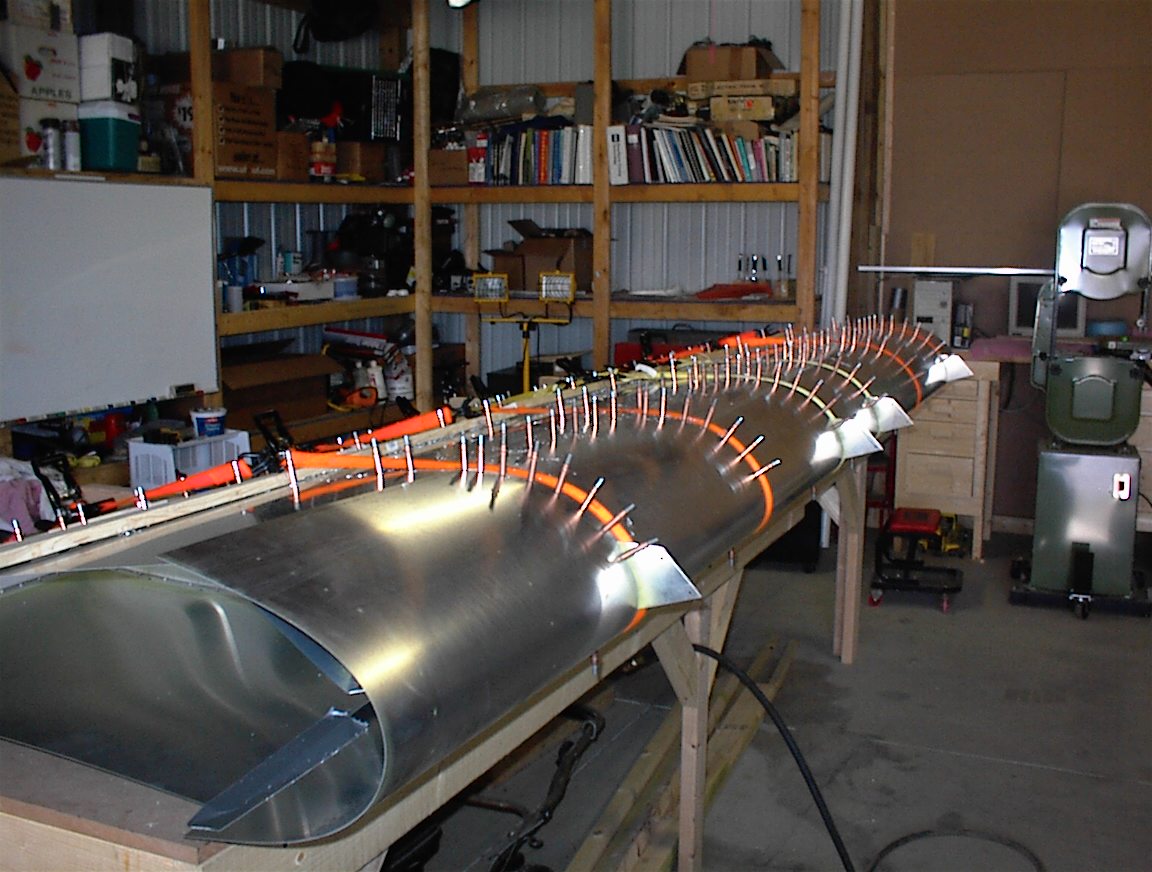

| Straps, duct tape and a 12' board really help when you get to this stage. | |||||||||||||||||||||
|
|||||||||||||||||||||
| I know it's hard to tell, but this was a great moment. I had to drill a 59mm diameter hole in the side of my fuel tank to mount the fuel level sending unit. I used a flycutter and made it 58.5mm and had to sand it by hand to make it perfect. | |||||||||||||||||||||
|
|||||||||||||||||||||

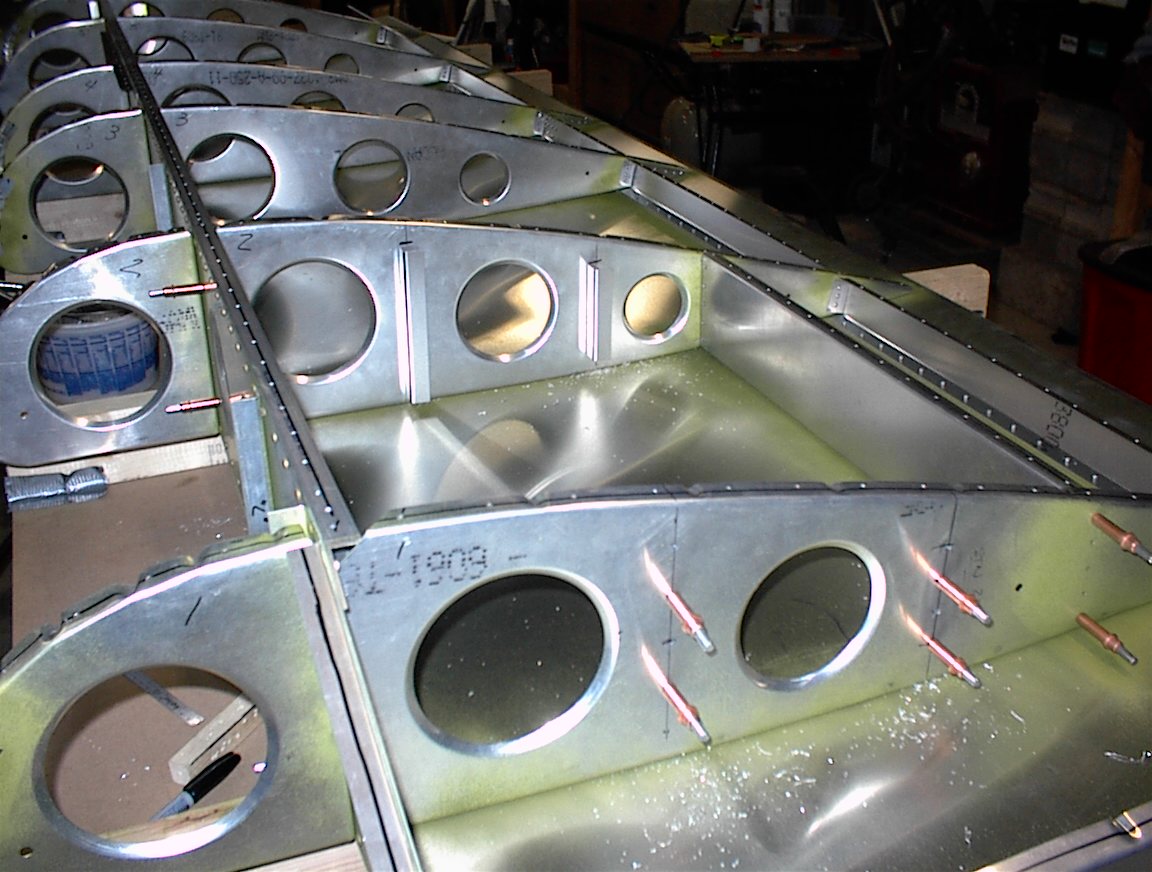

| The spacers for the fuel tank are clecoed in the wing. Now I have to cut the holes for the fuel lines and the fuel drain. | |||||||||||||||||||||
|
|||||||||||||||||||||
