More Project Ideas
This is a drawing of a center channel speaker for HT (Home Theater) use.
The drivers are two Vifa P17WJ-00-08 6.5" poly cone woofers,
two Vifa P13WH-00-08 5" poly cone woofers, and a Vifa D25AG-35-06 1" aluminum dome tweeter.
Outer dimensions of the enclosure are 16" H x 31.5" W x 18" D.

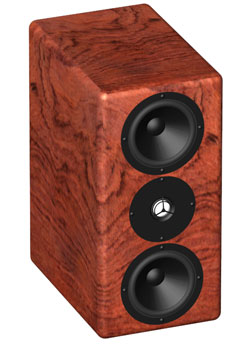

This is a drawing of a small MTM (Mid-Tweeter-Mid) speaker for music and HT use.
The drivers are two Vifa P13WH-00-08 5" poly cone woofers,
and a Vifa D25AG-35-06 1" aluminum dome tweeter.
Outer dimensions of the enclosure are 15.25" H x 7.5" W x 11.5" D.

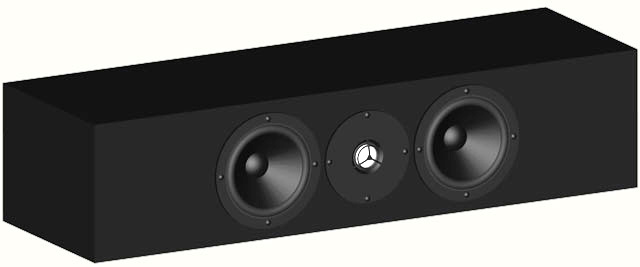

This is a drawing of a low-profile fully-shielded MTM (Mid-Tweeter-Mid) center channel speaker for HT use.
The drivers are two Vifa M13SG-09-08 5" shielded treated paper cone woofers,
and a Vifa D25ASG-05-06 1" shielded aluminum dome tweeter.
Outer dimensions of the enclosure are 6" H x 26" W x 8" D.

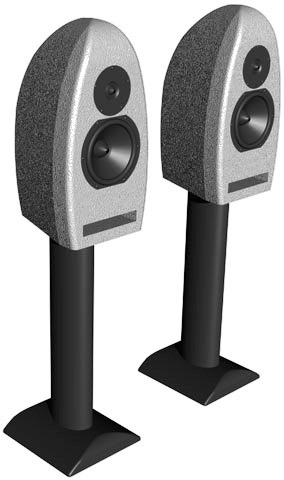

This is a drawing of a pair of speakers for music and HT use.
The drivers are two Peerless 6.5" woofers,
and a Peerless 1" dome tweeter.
Outer dimensions of the enclosure including stands are 30.9" H x 9" W x 11" D.
Original idea by Andy G

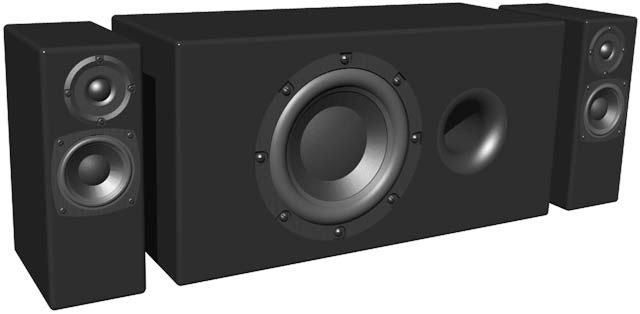

This is a drawing of a fully-shielded set of speakers for computer use.
The drivers are 4" shielded cone woofers,
and a 1" shielded dome tweeter.
The subwoofer uses a 10" woofer.
Outer dimensions of the satalite enclosures are 12" H x 4.5" W x 8" D.
Outer dimensions of the subwoofer enclosure are 12" H x 24" W x 10" D.
This is a drawing of a pair of tower speakers for music and HT use.
The drivers are 6.5" cone woofers,
and a 1" aluminum dome tweeter.
Outer dimensions of the enclosure are 80" H x 15" W x 15" D.
Original idea by Andy G

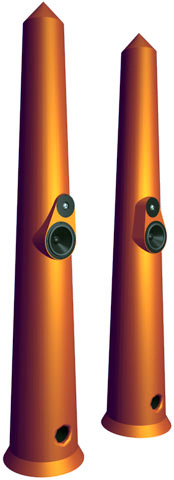

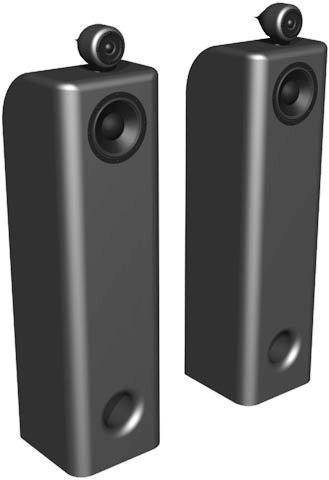

This is a drawing of a pair of tower speakers for music and HT use.
The drivers are 7" cone woofers,
and a 1" dome tweeter in a seperate, teardrop shaped enclosure.
Outer dimensions of the enclosure including teardrop are 47" H x 12" W x 12" D.
Original idea by Andy G

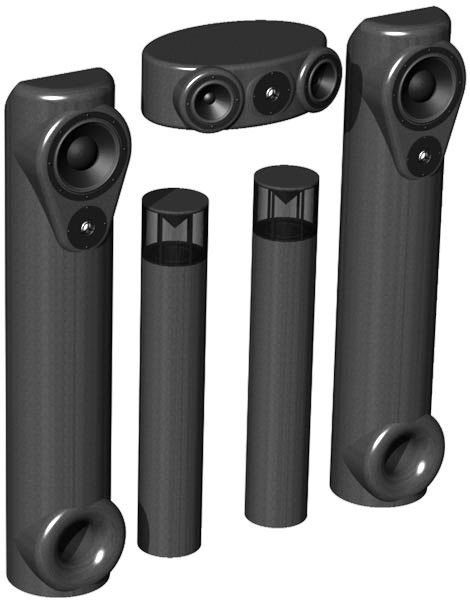

This is a drawing of a set of speakers for HT use.
The drivers in the main towers are 8" cone woofers,
and a 1" aluminum dome tweeter.
The drivers in the rear tubes and center channel are 4" cone woofers,
and a 1" aluminum dome tweeter in the center channel speaker.
Outer dimensions of the main enclosures are 48" H x 10" W x 10" D.
Outer dimensions of the center enclosure are 6" H x 18" W x 12" D.
Outer dimensions of the rear enclosures are 35" H x 6" W x 6" D.
