Curved-Side MTM HT Set
Original idea by Andy G
This is a drawing of a pair of speakers for music and HT use.
The drivers are a 10" woofer, two 5" woofers, and a 1" dome tweeter with small faceplate.

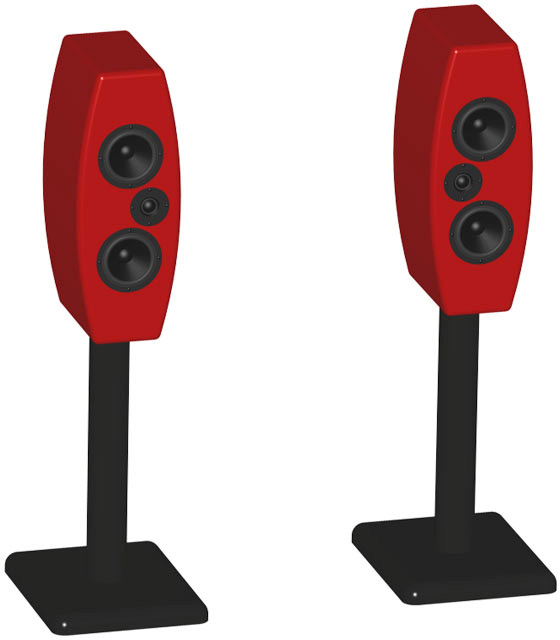

This is a drawing of a pair of MTM (Mid-Tweeter-Mid) speakers for music and HT use.
The drivers are two 5" woofers, and a 1" dome tweeter with small faceplate.

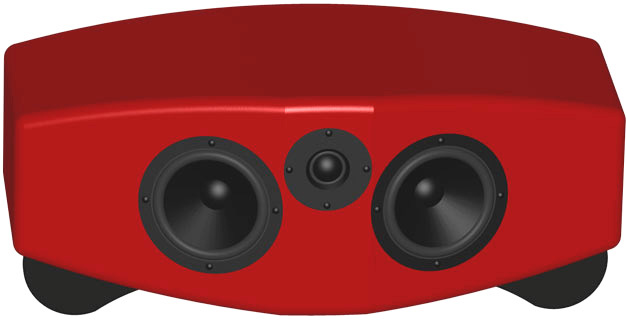

This is a drawing of an MTM center channel speaker for HT use.
The drivers are two 5" woofers, and a 1" dome tweeter with small faceplate.
Each 5" woofer is angled out at 15 degrees for better dispersion.
