| IPTN NAS-332L1 Rotordiameter: 15,60 m Panjang (length): 16,29 m Lebar (width): 3,38 m Kecepatan maks (max speed Vne): 278 [km/j] Kecepatan ekonomis: 250 Jangkauan (range): 850 km Ketinggian maksimum (service ceiling): 4200 m Mesin: 2 x 1887 HP/ 1400 kW Turbomecca Makila 1A1 MTOW [kg]: 8600 Bobot kosong [kg]: 4460 Daya angkut [kg]: 4140 pilot/crew: 2 penumpang/pax: 24 Senjata: 2 AM39 Exocet |
| IPTN NBell-412 Rotordiameter: 14,14 m Panjang: 12,70 Lebar: 2,84 2 Pratt&Whitney PT6T 3BE Take off gross weight: 5355 kg VFR Standard Configuration Usefull load: 2428 kg Max external load (hook): 2025 kg Never exceed speed (kecepatan maks): 259 [km/j] Long range cruise speed (kecepatan): 240 [km/j] Hovering ceiling (ketinggian): 3060 m Service ceiling (ketinggian maks): 5030 m Range (daya jelajah): 744 km |
| IPTN NBO-105 2 Allison 250C 20B, 420 SHP each. NBO-105CB NBO-105CBS MTOW(bobot maks): 2500 2500 Weight empty: 1277 1301 Max standard fuel: 456 456 Payload (bobot beban): 690 666 Max speed (kecepatan): 270 [km/j] Max cruising speed: 242 [km/j] Range (daya jelajah): 575 [km] Max operating alt. 5182 [m] (ketinggian): |
|
 |

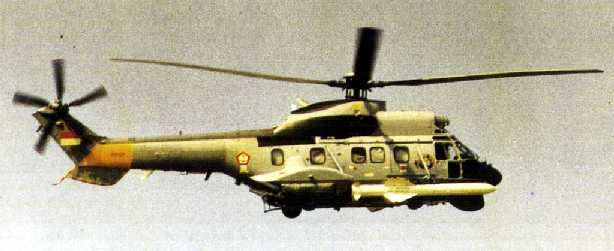

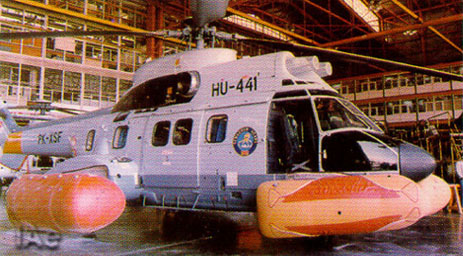

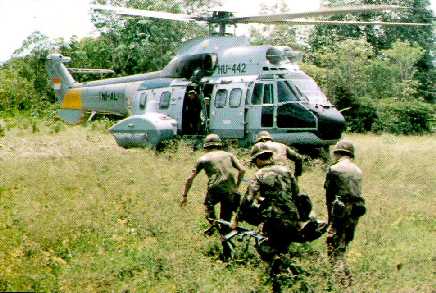

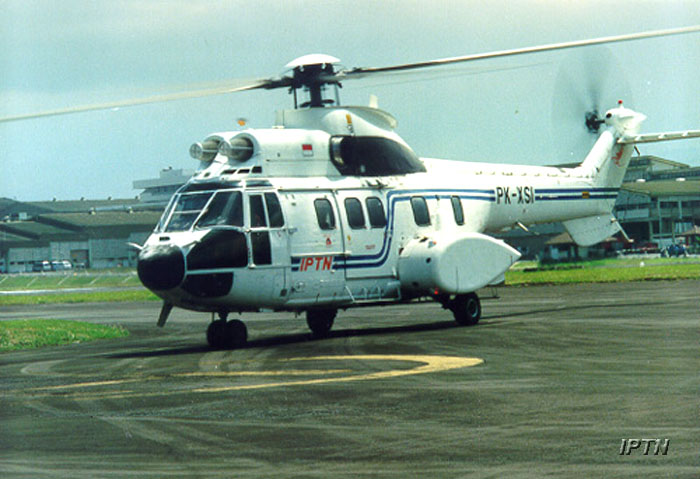

| Atas: NAS-332 dari IPTN. Bawa: NAS-332 Super Puma. Kiri bawa: NAS-332 dengan Korps Marinir. Paling bawa: NAS-332 sama AM39 Exocet. |

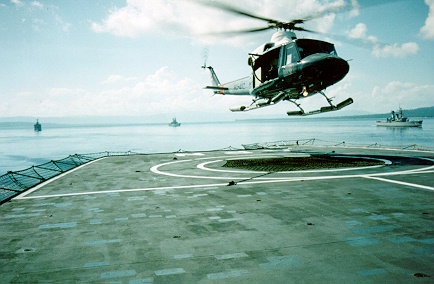

| NBell-412, on the background right, you can see a Achmad Yani class frigate. |

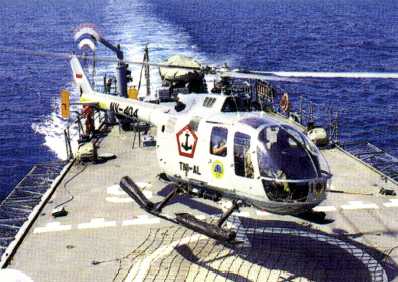

| NBO-105 sedang mendarat di kapal laut.. |
 |
 |

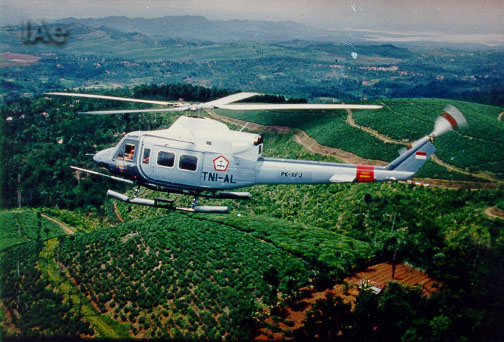

| NB-412 |
 |
 |
 |

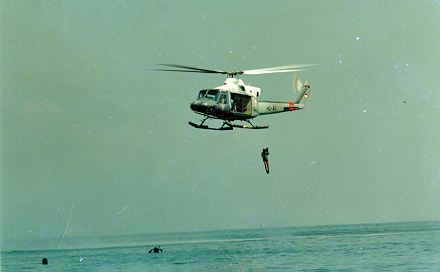

| NB-412 with an Indonesian Navy elit unit (maybe KOPASKA) |
 |
