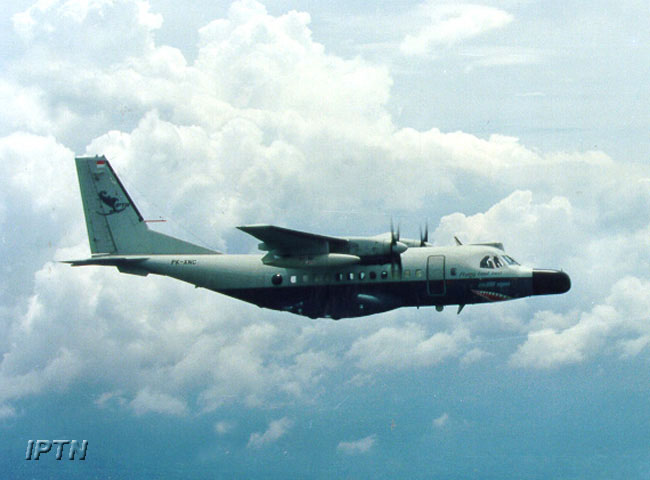

CN-235

IPTN CN-235

IPTN NC-212-200

Buatan IPTN(DI), Indonesia
Panjang (length): 21,40 m
Rentang (span): 25,81 m
Tinggi (height):    8,18 m
Cabin lenght:        9,65 m
Cabin height:        1,84 m
Cabin volume:     41,88 m3
Kecepatan:        444 [km/j]/ 240 kts
Daya jelajah (range): 2700-4350 km
Ketinggian (service ceiling): 2 mesin: 8750 m
                                        1 mesin: 3660 m
Mesin: 2 x 1750 SHP/1394 kW General
          Electric CT7-9C turboprop

Atas: CN-235MPA juga bisa membawa tangki atau AM-39 Exocet (peluru kendali anti kapal laut) dibawa sayap.

Panjang: 15,20 m
Rentang: 19,00
Tinggi:     6,30
Kecepatan maksimum (Vmo): 370 [km/j]
Kecepatan stall (VS):              135 [km/j]
Ketinggian maksimum: 2 mesin: 8220 m
                                 1 mesin: 3380
Mesin: 2 900 SHP Garret TPE-331-10R-512 C turboprop
MTOW: 7700 kg
Daya angkut (max load): 2500 kg
                                   pilot/crew: 2
                                   penumpang/pax: 22

NC-212 dari Merpati.

Kembali

Consoles di dalam CN-235 MPA

CN-235

A couple of NC-212s from the Air Force.

A naval NC-212 with some Skuadron Udara 200 crew.

The CN235-220 advanced multi purpose platform is an optimal combination of medium range capability, spacious cabin and fully integrated mission avionics. With its pressurized cabin and two high powered General Electric CT7-9C engines, the aircrafts 4000 kg fuel capacity allows flight endurance of between 8 to 10 hours.

M-28B

Buatan PZL Mielec, Polandia (www.pzlmielec.pl)
Panjang(length/lengte): 13,10 m
MTOW: 7000 kg
Kecepatan maksimum(VMO): 350 km/j
Kec Take-off(TO speed): 140 km/j
Kec mendarat(landingspeed): 135 km/j
Take-off distance: 410 m
Ketinggian maks(ceiling/plafond): 6000 m
Jangkauan(range/bereik): 1230 km
Crew: 6 (2 pilots+flight engineer+3 systems operators)
Sensors: Sea-surface surveillance radar ARS-800

The NC212 is a multirole twin-turboprop aircraft, designed by CASA of Spain and built under licence by the Dirgantara Indonesia (IPTN).
The NC212-200 Maritime Patrol uses digital communication, navigation and mission electronical systems. It uses FLIR, to see a long distance target more than 15 km away in a dim light. The radar can reach a target that lies more than 180 km away. The aircraft is also able to run within five ours non-stop.
