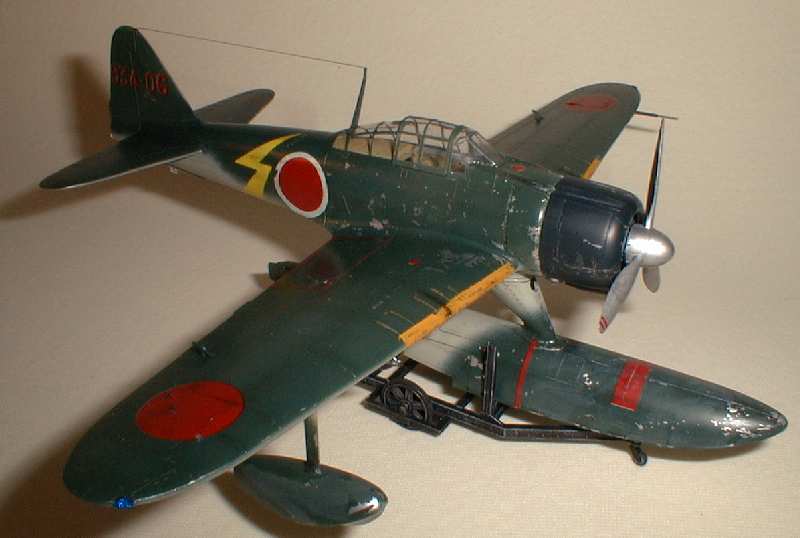

This floatplane was developed from the Mitsubishi A6M "Zero", for the purpose of supporting amphibian operations and defending remote bases. It was based on the A6M-2 Model 11 fuselage, with a modified tail and floats. This aircraft was the brainchild of Shinobu Mitsutake, Nakajima's Chief Engineer, and Atsushi Tajima, one of the company's designers. A total of 327 were built, including the original prototype.

The plane was deployed in 1942, referred to as the "Suisen 2" ("Hydro fighter type 2"), and was only utilized in defensive actions in the Aleutians and Solomon Islands operations.

The seaplane also served as an interceptor for protecting fueling depots in Balikpapan and Avon Bases (Dutch East Indies) and reinforced the Shumushu base (North Kuriles) in the same period. Such fighters served aboard seaplane carriers Kamikawa Maru in the Solomons and Kuriles areas and aboard Japanese raiders Hokoku Maru and Aikoku Maru in Indian Ocean raids. During fighting in the Solomon Islands, the Navy "Rufe" air aces Master Sergeant Kawai and Master Sergeant Maruyama shot down four American Grumman F4F Wildcat fighters.[citation needed] In the Aleutian Campaign this fighter engaged with P-38 Lightning fighters and B-17 Flying Fortress bombers. This aircraft was used for interceptor, fighter-bomber, and short reconnaissance support for amphibious landings, among other uses.

The last Rufe in military service was one recovered by the French forces in Indochina after the end of World War II. The French had successfully used several Aichi E13A1 "Jake" floatplanes confiscated from the Japanese, however the Rufe was a failure, and crashed on its first flight in French colors.

A total of 327 A6M2-Ns were built at Koizumi by Nakjima Hikoki K. K. between December 1941 and September 1943.

Content:

• Rufe Development
• Specifications
• Equipment
• Kit Contents
• Materials
• Assembly
  Wings
  Ailerons
  Fuselage
  Hatch
  Stabilizer
  Fin & Rudder
• Completion
  Light Spackling
  Wing Fillets
  Paint
  Decals
  Motor
  Canopy
• Trimming and Flying
• More Photos

A6M2-N Rufe Development:

O

Equipment:



Kit Contents:

Kit consists of:
- All CNC foam parts to assemble the fusellage (3 sections), tail feathers and wings.
  Fuselage is an empty shell of foam.
  Wing, stab, fin slots and cockpit are already cut in the fuselage parts.
- Clear vacu-formed canopy
- Instruction CD with lots of pictures. - Decal sheet with US markings


Materials:

Extruded  polystyrene for the wings and tail feathers then expanded polystyrene for the fuselage.

Glue:

• Water based contact glue (Latex)
• Carpenter's water based glue
• Foam friendly CA

Paint:

• Water based paint like acrylics applied with brush or small foam roller or sprayed with air-brush system.
• Foam friendly spray cans (Acrylics, Krylon H2O)

Hardware:

• Thin music wire (1/32")
• Carbon rods for the pushrods (0.040"), for the optional landing gear (0.070")
• Strong magnets to hold shut the fuselage hatch (1/8")
• 1/32" PCB material to make the control horns and tail wheel bearing plate.
• Main wheels, like the Du-Bro 1.25" Lite Wheels (Du-Bro part at Zebra Hobbies; #125MW ), optional
• Tail Wheel (Du-Bro part at Zebra Hobbies; #12MTW), optional
• 3M Blenderm for hinges; good adhesion, waterproof, thin and very flexible.
• Masking tape; reinforcement

Decals:

• Make you won on your ink-jet printer on regular paper and glue them on
• Printed on an ink-jet printer on Avery Clear Full Sheet Labels (Avery #08665)
• Here is something to work with:


XX

The stabilizer and elevators come in two separate pieces and are cut out of the same material as the wing panels.

• Round the LE of the stabilizer using a sanding block.

• For the looks, you may want to taper the TE, but this will weaken the foam in case of a sudden contact with Terra Firma.

• Bevel the front of the elevators.

• Separate the elevator halves cut a slot at the LE for the 1/8" hardwood joiner

• Join the elevators halves using a 1/8" hardwood dowel.

• Hinge the elevators to the stabilizer

XX

You can attach the wings to the fuselage in different fashions, but I recommend to glue the wing permanently in place as the lightest and strongest option.

The Tail Feathers

• Glue the stab and the fin to the fuselage slots at the rear, making sure everything is square.
• The last section of the fuselage ending past the tail feathers is built up using scrap pieces of foam.
• Use light sparkle to fill any hole left and smooth out everything.

Hardware

• Make yourself a few control horns (using credit cards, thin 1/32" PCB or thin plywood) and glue them to the elevator and rudder if installed.
• You can use .040" carbon rods for pushrods ending with a thin music wire glued to the pushrod using a wrap of Kevlar thread and CA.
• I added a pushrod guide for the rudder and elevator pushrods to prevent flexing under load. These are made of 1/32" PCB material with a hole big enough for the rod to slide in. They are inserted in the fuselage side after making a thin incision at the right location with an X-Acto blade and then glued to the inside of the fuselage
• Use masking tape to protect your aileron servos and then use foam friendly glue to fix them to the fuselage sides and in the wing slot.
• Install your rudder and elevator servos in the fuselage. Set the servo neutral points and route the carbon rods through the fuselage sides and pushrod guides where appropriate to reach the servo and minimize the binding in the pushrods. A stiff music wire is used to drill holes through the fuselage where the pushrods will pass.

To take off from the ground, I prefer to have rudder for ground control and of course, landing gears. If you install rudder and landing gears, add a small tail wheel to a tail bracket glued to a slot cut half way through the rudder. End the top of the tail bracket in the rudder in an inverted L shape to transfer torque from the rudder to the tail wheel. A small piece of 1/32" PCB material is used as a bearing for the tail wheel. Use Vaseline to prevent the tail wheel strut from sticking to the bearing plate when you glue the bearing plate to the fuselage.

You can locate the landing gear legs at the wing bends. The landing gear can be made of a 0.070 carbon rod or stiff wire and thin music wire bent at 90degree as wheel axel. Fix the wire using Kevlar thread and CA. The carbon rod is then glued to a hardwood based imbedded and glued in the wings to the bottom of the wing. Use light weight wheels. I prefer to use the Du-bro 1-1/4" Mini Lite Wheels (#125MW). They weigh 1.1gr each.

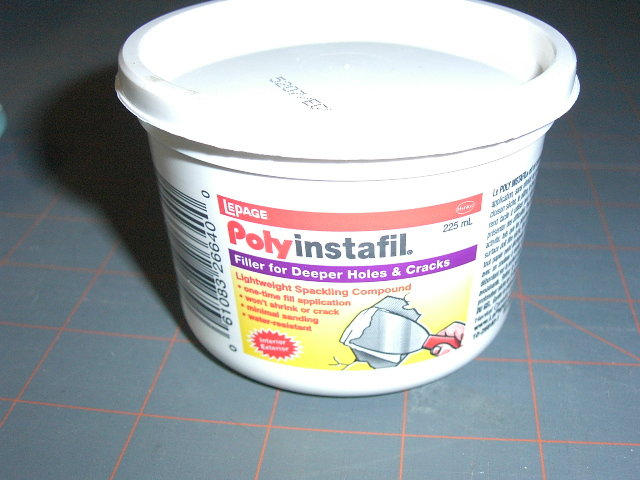

Use light sparkle to fill all the tiny foam holes and sand smooth. Cover the whole fuselage, let dry, then sand lightly. I use a Lepage brand from the local hardware store; light and far less costly then the hobby version.

• Sand the wing seat to match the wings.
• Glue the wings to the fuselage
• Do the wing fillets between the fuselage and the wings using light spackle and a finger to smooth the fillet and minimize the sanding.
• Once sparkle compound is dry, sand carefully with sand paper rolled on your finger.
• Apply more sparkle to complete a nice fillet. Sand again.

This will produce very nice fillets, but they are somewhat fragile. You will need to put a few layers of protective polyurethane on top.

• After the light spackle and the sanding,
• Apply Japanese paper tissue using polyurethane floor varnish (PUV), like Varathane, or diluted white glue to cover the fuselage.
• Add PUV coats to provide a harder shell to the foam.
• Sand smooth between each PUV coat.

• For paint, I use cheap acrylic from the dollar store.

• Either spray paint (thin with water) or brush a couple of layers starting with the light colors first.

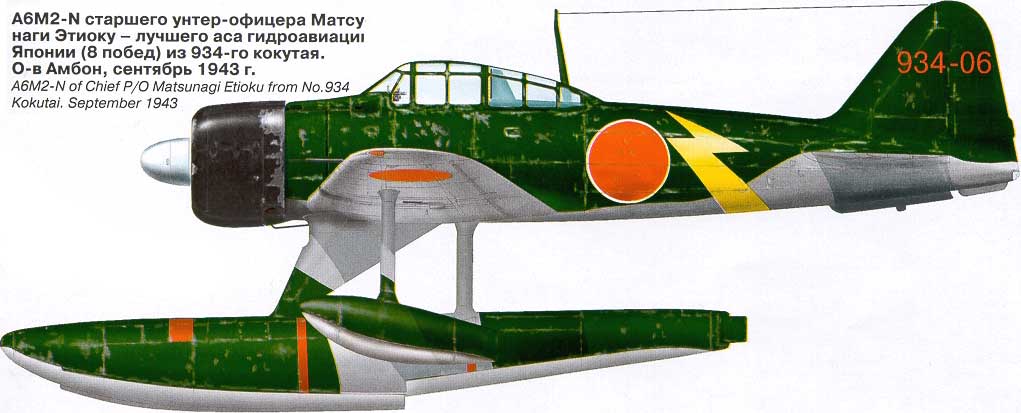

Once the PUV, Japanese tissu and base color paint job is done, complete with your favorite camouflage scheme. The Corsair has seen many countries and colors. An airbrush system can speed up the process, or smooth the application but a good old brush in a steady hand and patience can deliver fine results.

XX

XX

XX

Add your decals.

You can use the plate I did :

Or make your own.
For indoor use, you can print on white paper and glue the markings using Stick-iT stick type glue or PUV to attach the markings to the plane.

XX

XX

XX

The completed the tail sections with the pushrods hooked up.

XX

The motor used in the prototype comes from a PC CD-ROM/DVD drive. My motor has a 29mm bell. The stator was rewound, magnets replaced by strong neodymium magnets. I machined a bearing motor holder and plate. The motor draws a bit over 5A with a 7x3.5 GWS HD propeller on a 3S Li-Po 500mAh pack.

This motor is fairly heavy and one can surely find a much lighter motor, like

• Flight Park 250 (55W, 14gr, 2200Kv)

• C2024 Micro brushless Outrunner 1600kv (17g) found at Hobby King.

• Turnigy 28-22-CQ 1400Kv Brushless Outrunner at Hobby King.

Note that the use of a lighter motor will shift the weights and one will need to explore with the correct locations of the flight battery, servos and receiver.

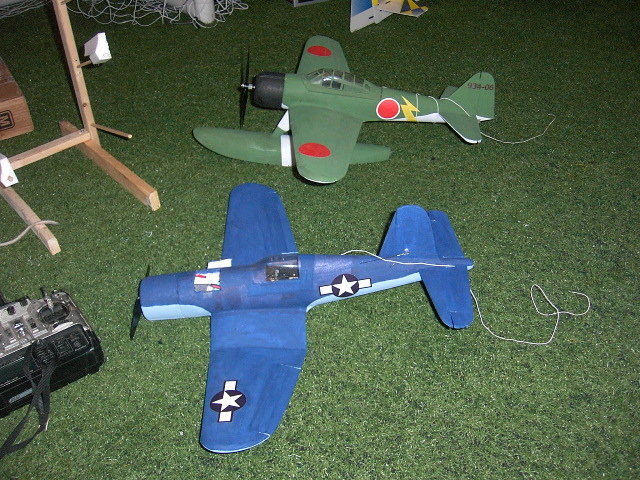

I made a foam plug for my Rufe and realized it would fit perfectly for the canopy of this F4U Corsair. This kit is therefore provided with the long canopy of the Rufe. The front section need to be cut and trimmed in small steps to make sure you will not trim too much.

XX

My vacuu-forming machine is a simple wooden box with a top drilled with many small holes and another hole on a side panel to insert the tube of a shop vac. I make a plastic holder made out of plywood. I staple a rectangle of plastic material to the plywood frame and heat up the plastic over the heat of a stove burner. Once everything is soggy, turn the shop vac on and apply over the plug.

For the small number of kits I made, the canopy is provided and you will need to cut along the pencil marked line on the canopy and adjust for the sanded shape of your foam fuselage and cockpit section. I masked off the window areas of the canopy using left-over material from the decal print job (Avery #08665). The canopy was pressed against the foam once located and then the foam was sliced at the imprint left to slide in the canopy; so the canopy is actually lightly inserted into the foam. Use the picture below to paint the cockpit structure once glued to the fuselage section. Use the water based contact glue to hold the canopy to the foam. Paint is done outside the canopy to fill voids and such. A few touch-ups on the camouflage was done after the paint has dried and the masking removed.

XX

In the picture above I still have to mask the canopy and paint the frame.

You may want to paint the foam inside of the cockpit black and add a pilot to your cockpit. I typically print 2 pictures of a pilot on my color printer; a normal and then a flipped image and then glue back to back to get a double sided flat pilot. Very light.

• CG : 40mm from LE at root.
• Position the Li-Po pack inside the fuselage hatch along with the receiver and connect all the cables. Adjust their position to get the correct CG.
• Deflection of the elevator set from 6 to 10 mm.
• Deflection of the ailerons to 30° or even more to get quick rotation on the rolls.
• I used a GWS HD 7x3.5 prop on a 3mm shaft retained to the shaft with with rubber bands.
